TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

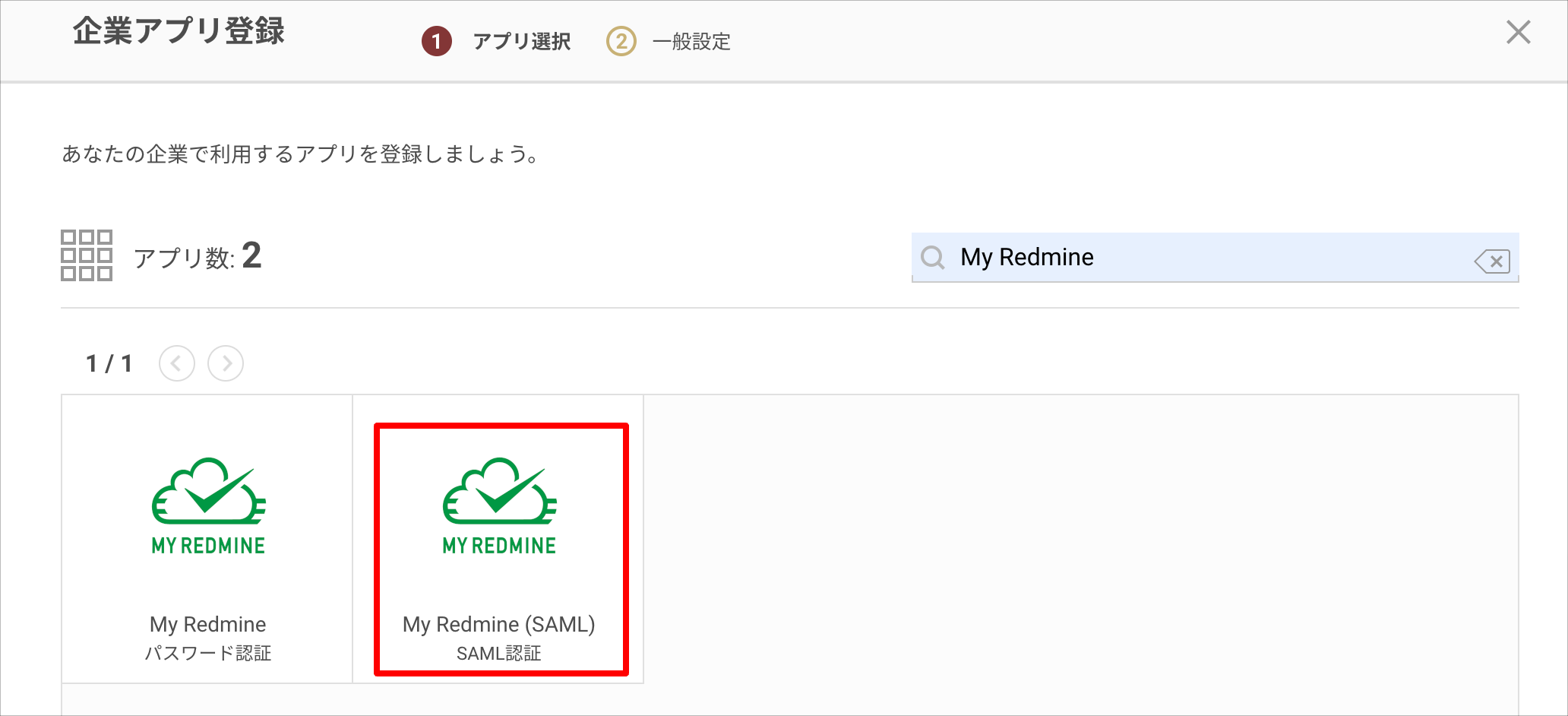

2. On the "Corporate App Registration" screen, search for and select "My Redmine (SAML)".



3. Note the "IdP URL" and "Issuer/Entity ID" values under "IdP Information", and download the certificate using the "Get Certificate" button.

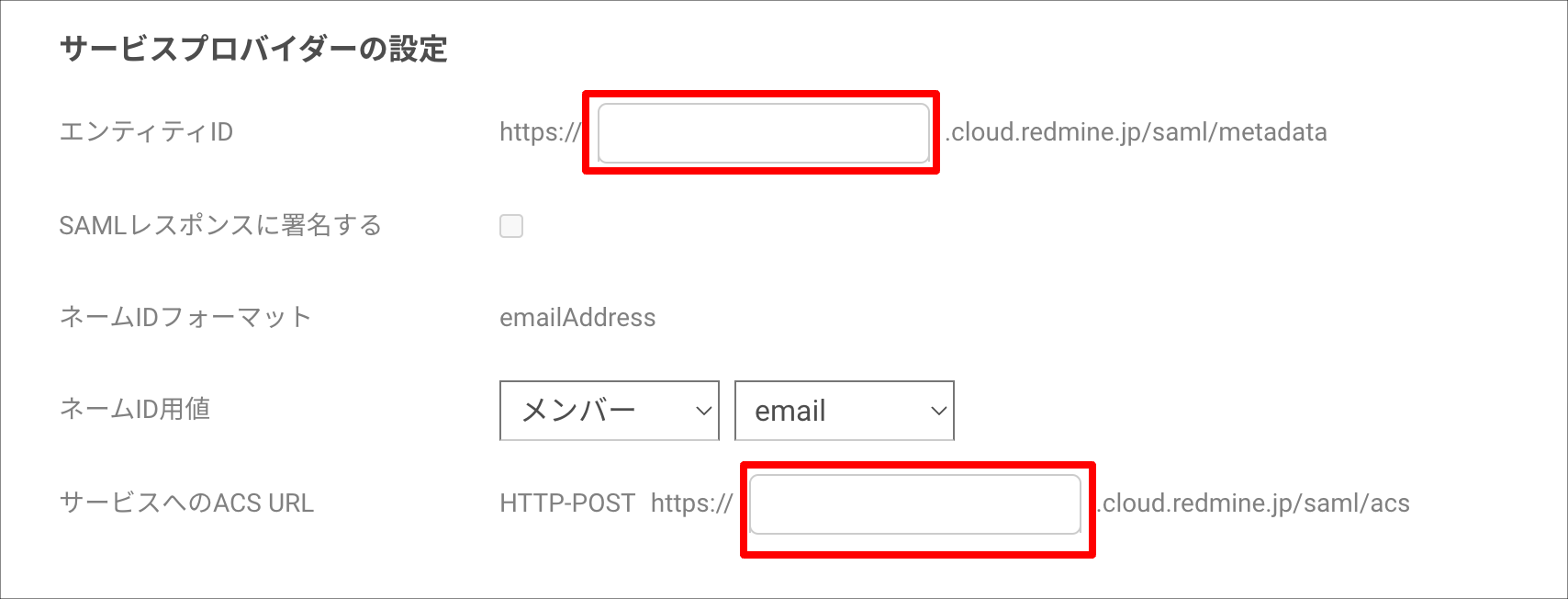

4. In the blank fields for "Entity ID" and "ACS URL for Service" under "Service Provider Settings", enter your My Redmine account name.
   If your login URL is https://xxxxx.cloud.redmine.jp/, enter xxxxx.



5. Click the "Register" button to save.

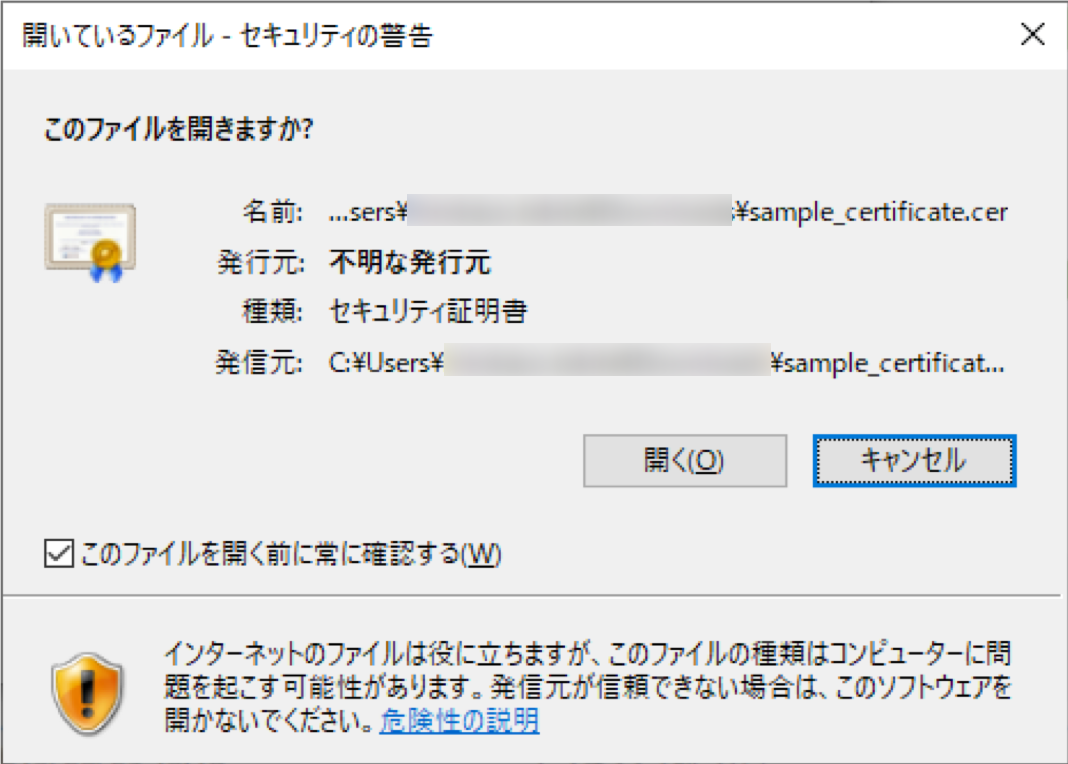

6. Change the file extension of the downloaded certificate to [.cer] and open the file.

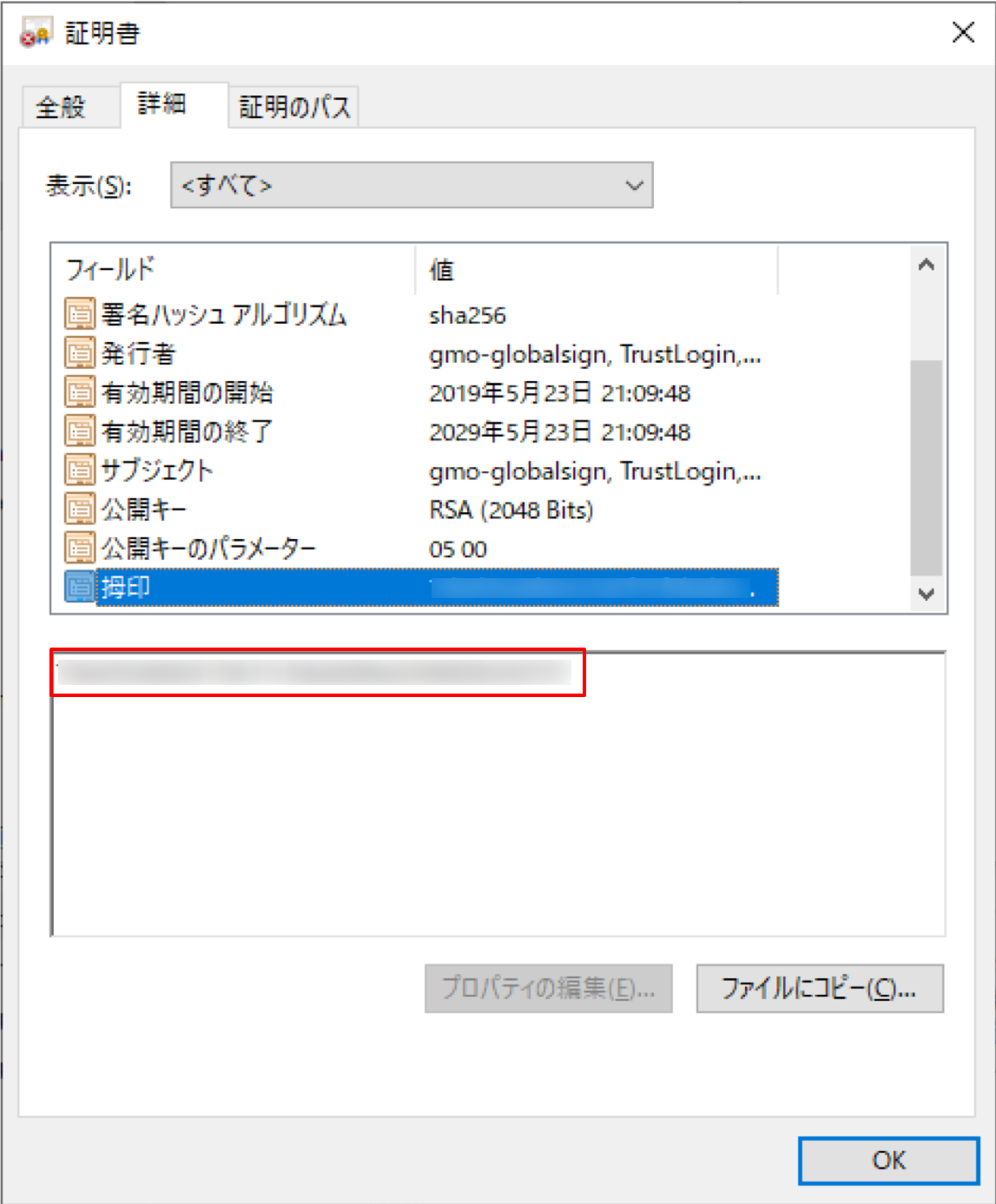

   Note the value of the "Thumbprint" field on the "Details" tab.




My Redmine Configuration

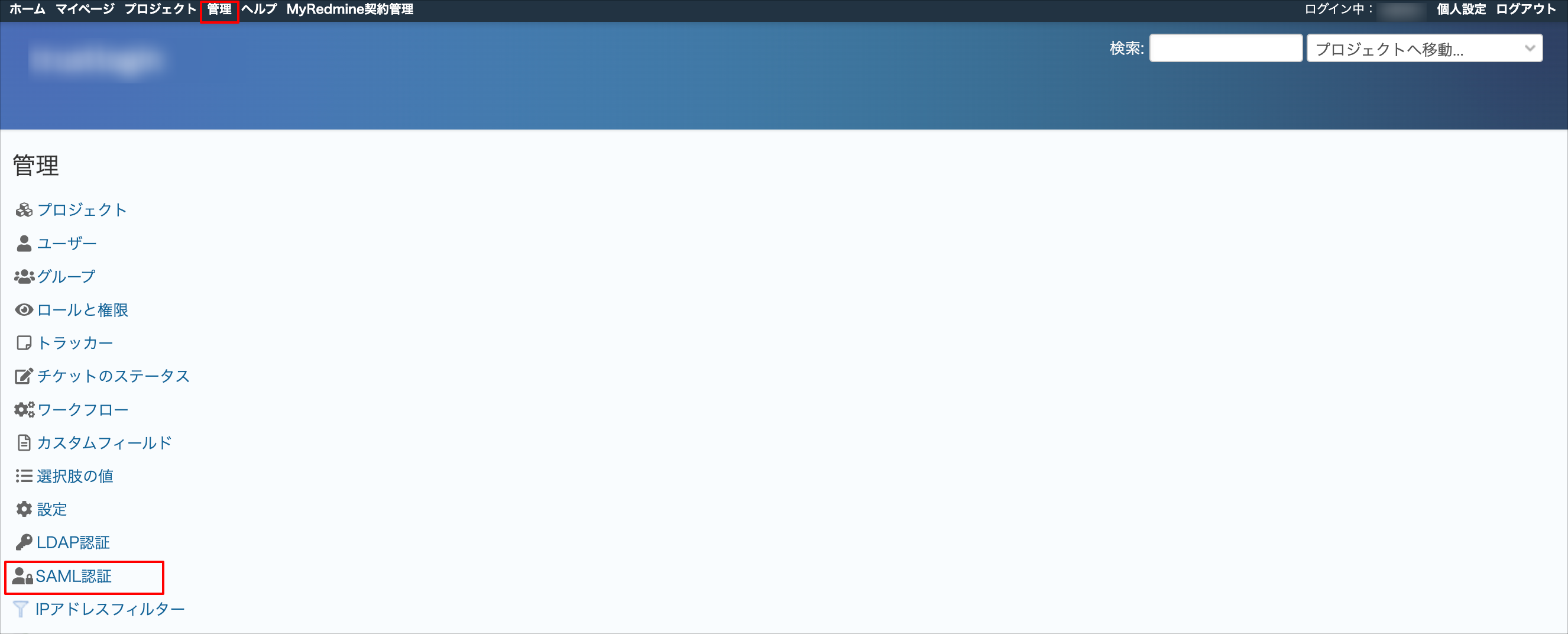

1. Log in with the system administrator account and open "Administration > SAML Authentication".

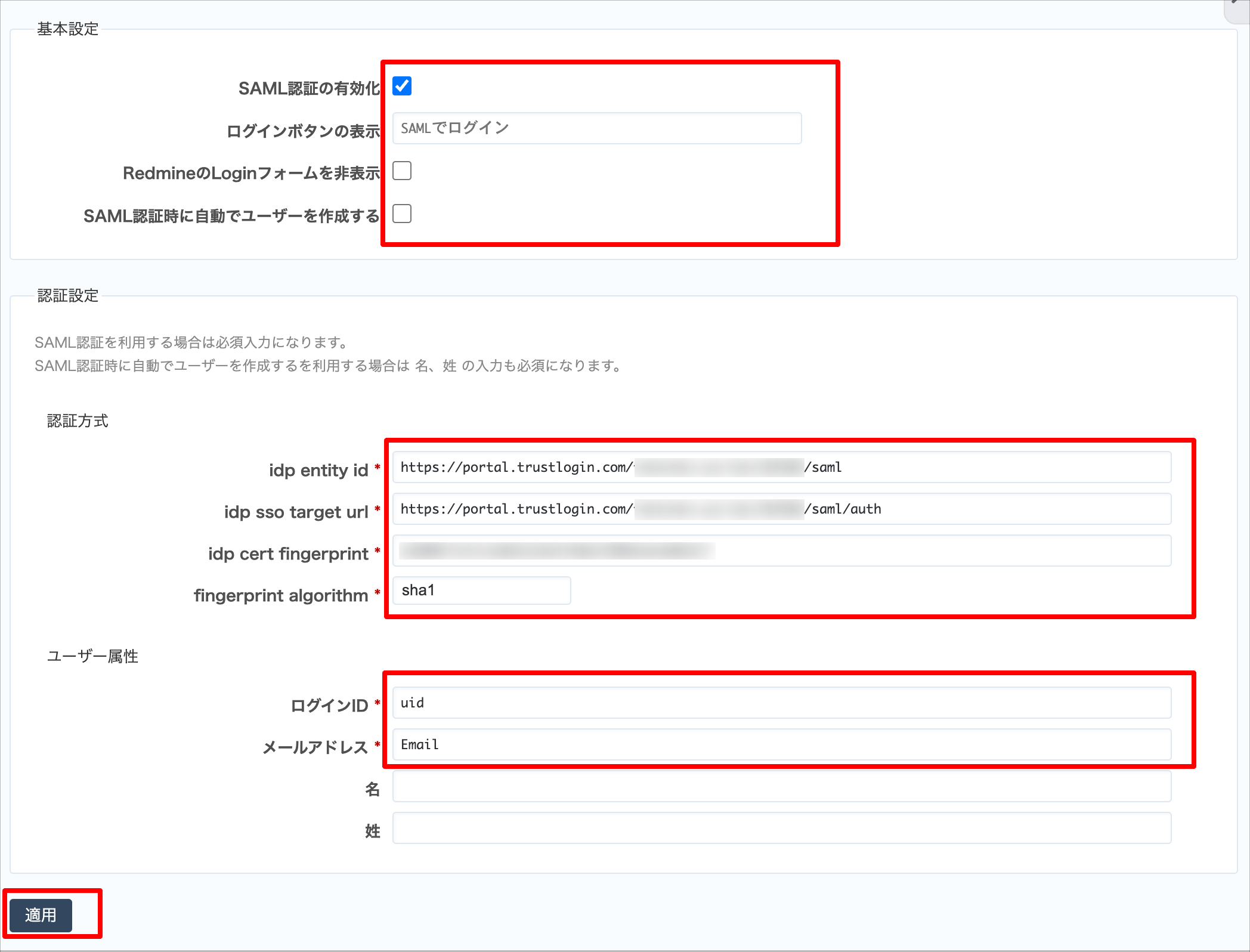

2. Configure each item as follows and click the "Apply" button to save.


   Enable SAML Authentication	ON

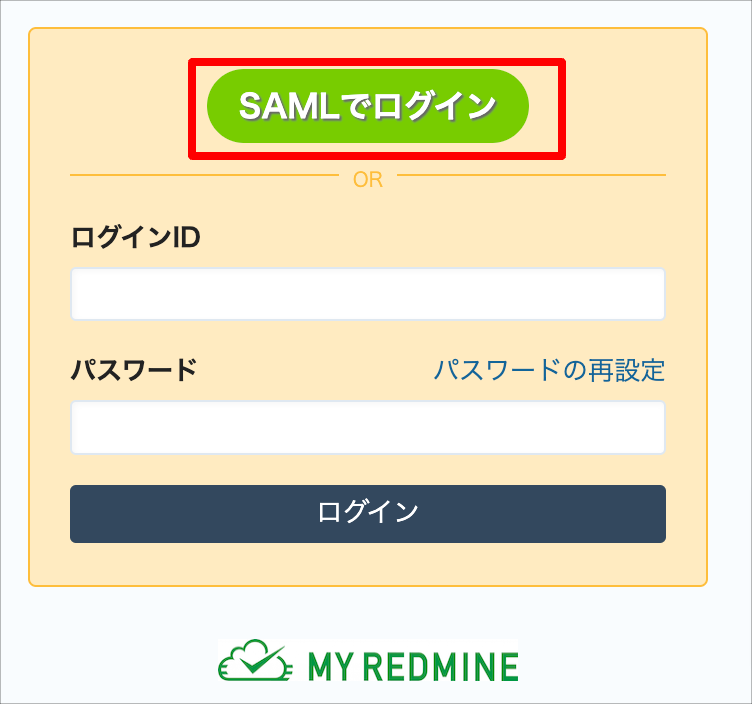

   Login Button Display	This is the display name of the SAML login button on the login page. You can change it to any name you like.
   Hide Redmine's Login Form	Turning this ON hides the login ID and password fields on the login screen. Please note that this disables the ability to log in with a Redmine login ID/password.
   Automatically Create User on SAML Authentication	OFF
   idp entity id	The "Issuer/Entity ID" obtained from TrustLogin
   idp sso target url	The "IdP URL" obtained from TrustLogin
   idp cert fingerprint	The "Thumbprint" value obtained from the TrustLogin certificate
   fingerprint algorithm	Select "sha1"
   Login ID	uid
   Email Address	Email






TrustLogin User Configuration

① When a user adds the app from My Page

1. On "My Page", click the "Add App" button.
2. On the "App Registration" screen, select "My Redmine (SAML)" and click the "Next" button in the upper right of the screen.
3. Enter a "Display Name" if you want to change it, and click the "Register" button.

② When an administrator adds members

1. On the "Admin Page > Apps" menu, search for and click the "My Redmine (SAML)" app.
2. Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
