TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Add App" button in the upper right of the screen.

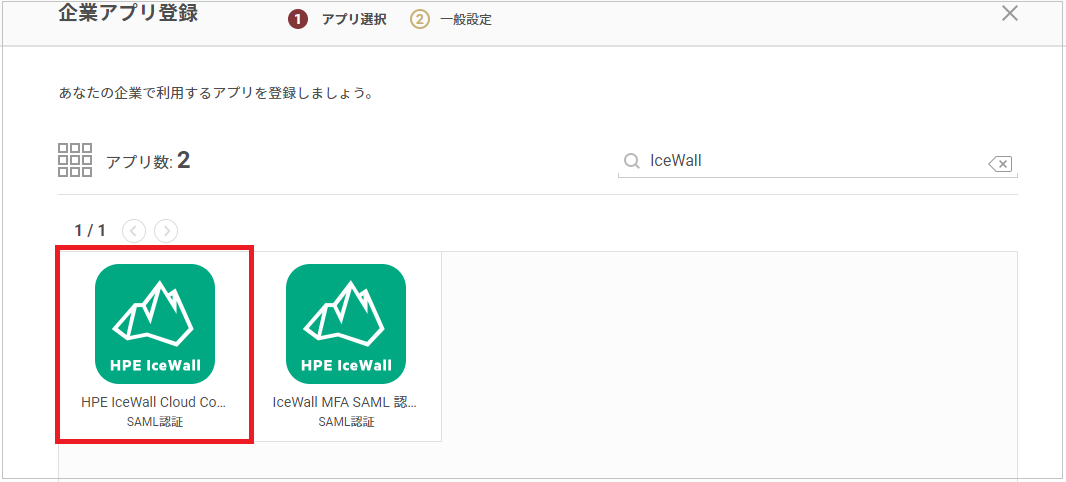

2. Search on the "Add Enterprise App" screen and select "HPE IceWall Cloud Connection (SAML)".

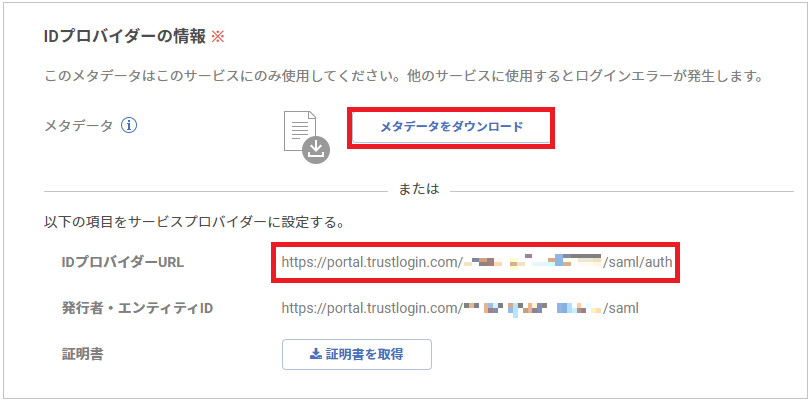

3. Download the metadata using the "Download Metadata" button under Identity Provider Information, and note the value of "Identity Provider URL".



4. Send the following information to your HPE IceWall Cloud Connection representative and request the SAML configuration.


   IdP-initiated URL	The "Identity Provider URL" you noted from TrustLogin
   Metadata	The "metadata" you downloaded from TrustLogin
   NameID	Email address




5. Once you receive notification from HPE IceWall Cloud Connection that their configuration is complete, resume the setup.
   (On the Admin Page App screen, search for the app by name → open the relevant app's detail screen → change the SAML app settings)

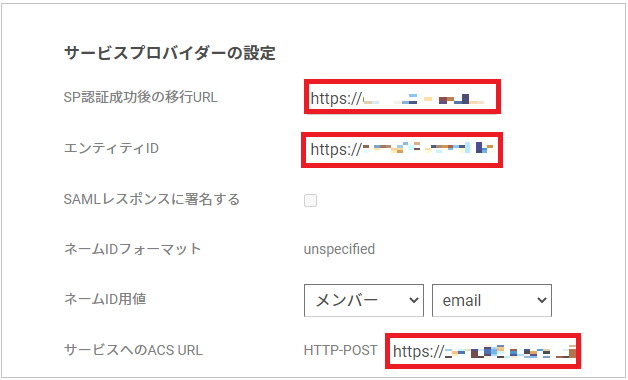

6. Configure the "Service Provider Settings" as follows.


   Redirect URL after successful SP authentication	The "SP-initiated URL" sent by HPE IceWall Cloud Connection
   Entity ID	The "Identifier (Entity ID)" sent by HPE IceWall Cloud Connection
   Service ACS URL	The "Assertion Consumer Service URL" sent by HPE IceWall Cloud Connection





7. Click the "Register" button to save.

TrustLogin User Settings

① When a user adds it from My Page

1. Click the "Add App" button on "My Page".
2. Select "HPE IceWall Cloud Connection (SAML)" on the "Add App" screen and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

② When an administrator adds members

1. Search for and click the "HPE IceWall Cloud Connection (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
