How to Configure SAML Authentication for SECURE DELIVER

Item

Details

Prerequisites

  • Prior configuration is required in SECURE DELIVER.

  • You must set the same email address as TrustLogin in SECURE DELIVER's "Authentication Linkage Key."

  • For the latest configuration steps, please refer to the manual provided by SECURE DELIVER.

Name ID

Email address

Custom attribute Note: For instructions on how to configure custom attributes, see here

SP-side Configuration

Configured by the administrator

Request configuration from the SP

Provisioning

Supports provisioning via API (account management possible from TrustLogin)

Supports SAML JIT provisioning (account management possible from TrustLogin; user deletion not supported)

None (accounts are created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verified Operation Status by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App

TrustLogin Admin Page Configuration

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

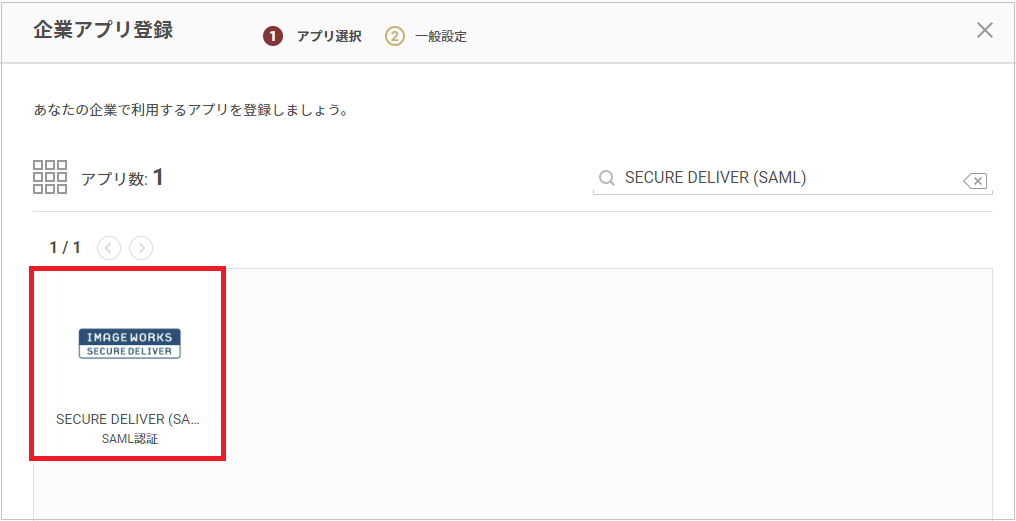

  2. Search on the "Register Corporate App" screen and select "SECURE DELIVER (SAML)."

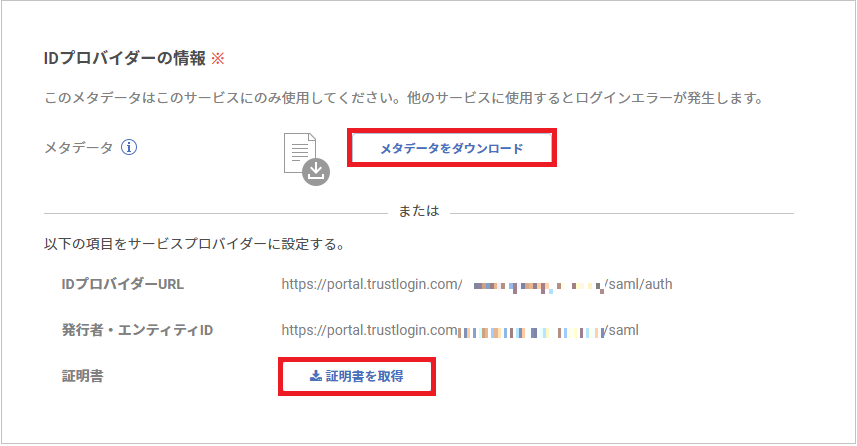

  3. Download the metadata from "Download Metadata" under Identity Provider Information, and download the certificate from "Get Certificate."

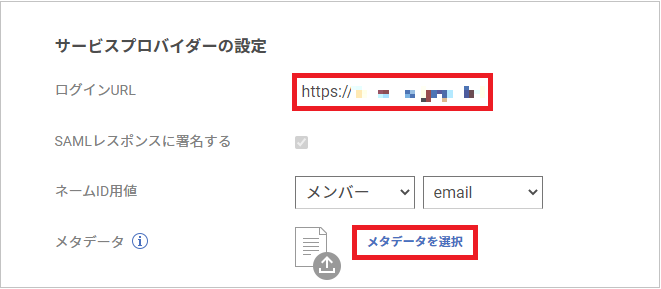

  4. Configure each item of the Service Provider settings as follows.
    Login URL The "SSO Login URL" notified by SECURE DELIVER
    Metadata

    Upload the "SP Metadata" sent by SECURE DELIVER


  5. Click the "Register" button to save.

  6. Send the metadata and certificate you saved from TrustLogin to your SECURE DELIVER representative and request SAML configuration.
    Note: If you want to specify the logout redirect destination from SECURE DELIVER, please also send the logout redirect URL.
    Example: https://portal.trustlogin.com/

TrustLogin User Configuration

① When a User Adds the App from My Page

  1. In "My Page," click the "Add App" button.
  2. On the "Register App" screen, select "SECURE DELIVER (SAML)," then click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds Members

  1. In the "Admin Page > Apps" menu, search for and click the "SECURE DELIVER (SAML)" app.
  2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
