TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

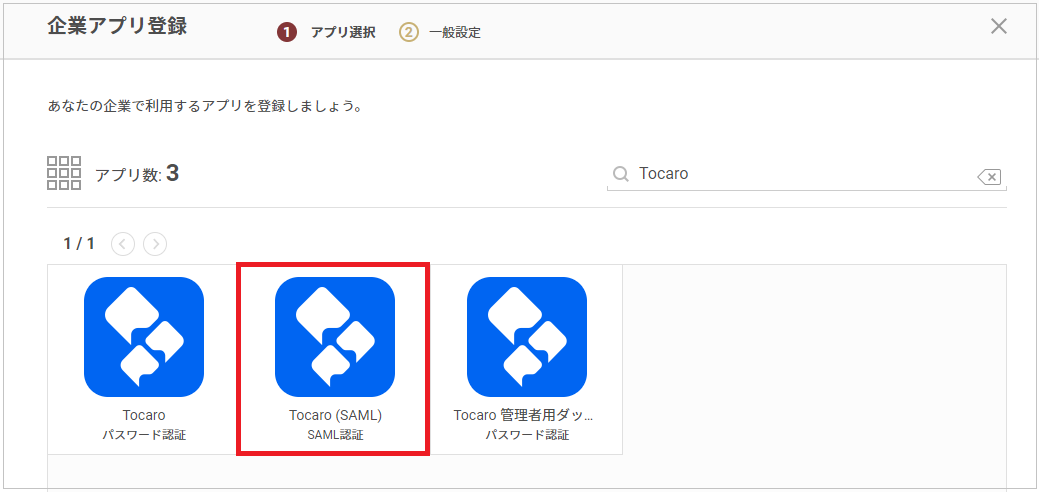

2. On the "Corporate App Registration" screen, search for and select "Tocaro (SAML)".



3. Note the value of "IdP URL" under "IdP Information", and download the certificate using the "Get Certificate" button.


Now let's move on to configuration on the Tocaro side. Please open Tocaro in a separate window.

Tocaro Configuration

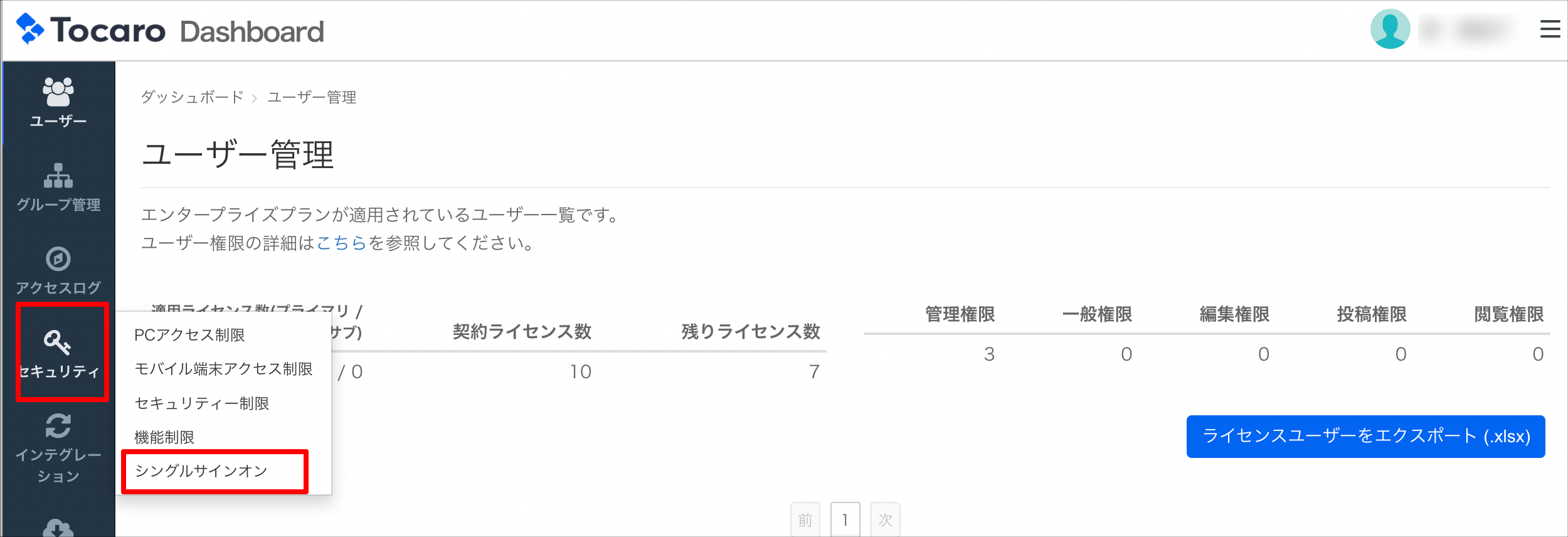

1. Open the admin dashboard and go to "Security > Single Sign-On".

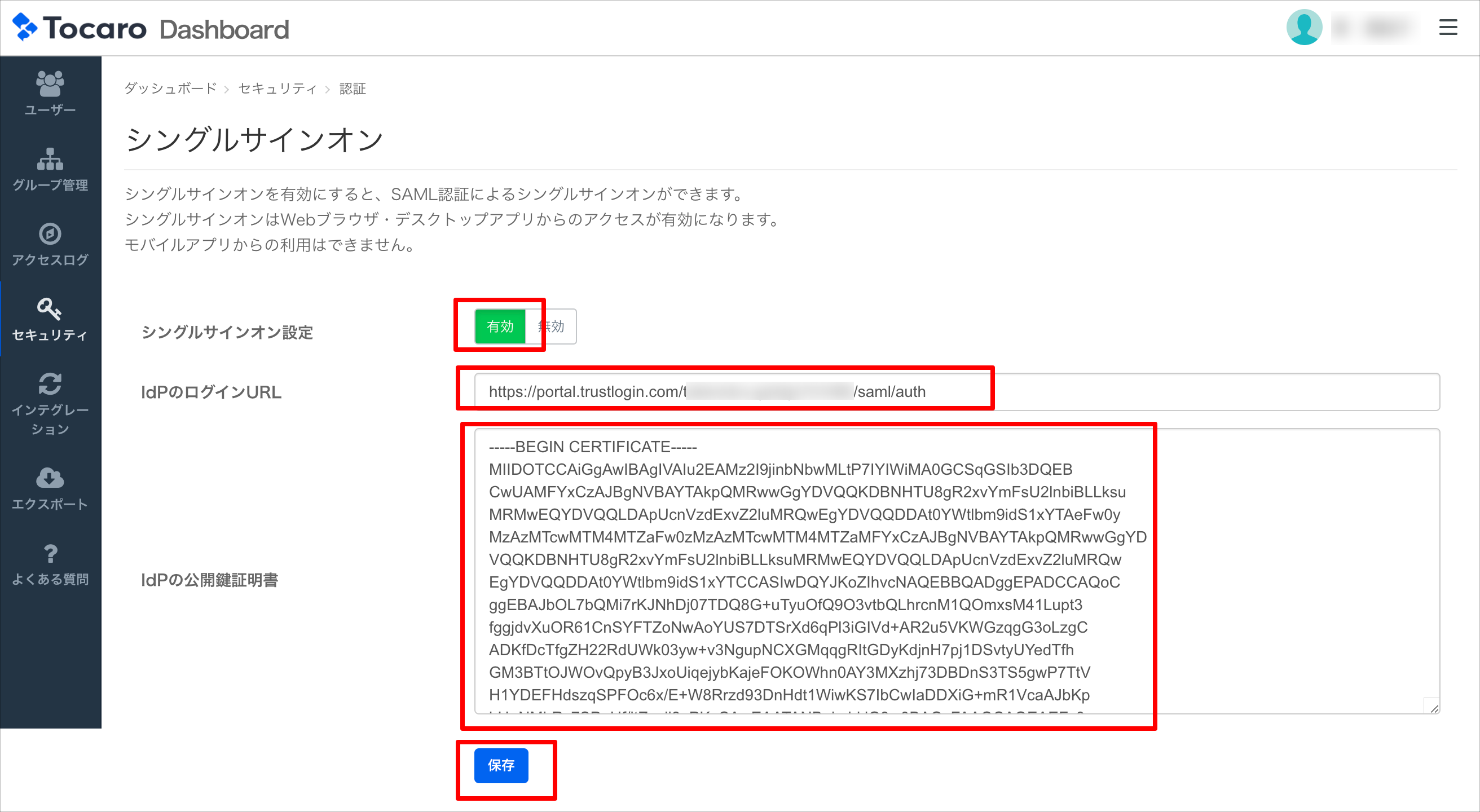

2. Configure each item in the single sign-on settings as follows, then click the "Save" button.


   Single Sign-On Setting	Switch to "Enabled"
   IdP Login URL	The "IdP URL" obtained from TrustLogin
   IdP Public Key Certificate	Paste the entire contents of the "Certificate" obtained from TrustLogin

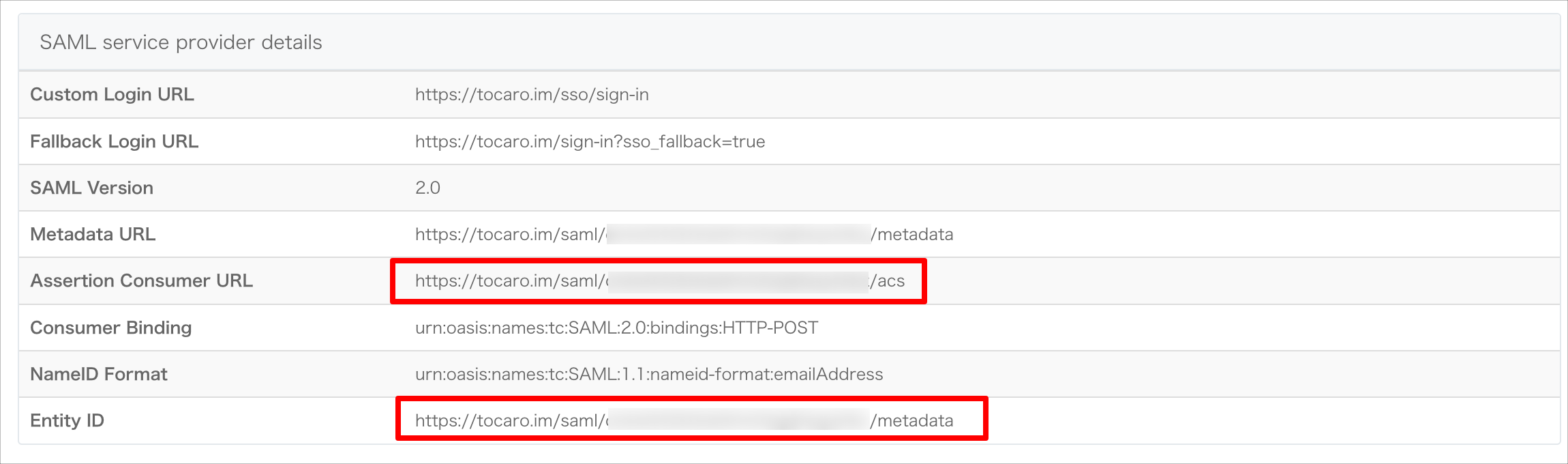

3. Obtain and note the values of "Assertion Consumer URL" and "Entity ID" from "SAML service provider detail".




Now let's return to the TrustLogin configuration.

TrustLogin Admin Page Configuration (Continued)

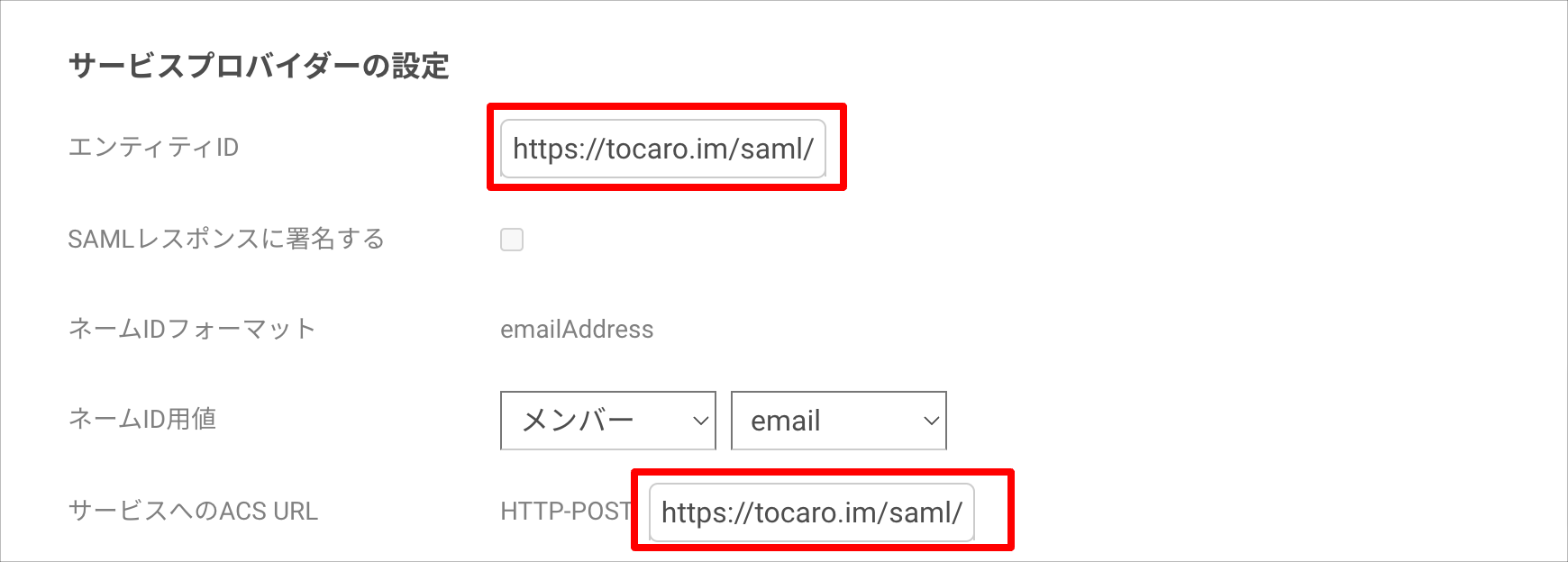

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "Entity ID" obtained from Tocaro
   ACS URL for Service	The "Assertion Consumer URL" obtained from Tocaro



2. Click the "Register" button to save.

TrustLogin User Configuration

① When a user adds the app from My Page

1. On "My Page", click the "Add App" button.
2. On the "App Registration" screen, select "Tocaro (SAML)" and click the "Next" button in the upper right of the screen.
3. Enter a "Display Name" if you want to change it, and click the "Register" button.

② When an administrator adds members

1. On the "Admin Page > Apps" menu, search for and click the "Tocaro (SAML)" app.
2. Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
