Note: Depends on the compatibility of the server on which Zabbix is installed

TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Add App" button in the upper right of the screen.

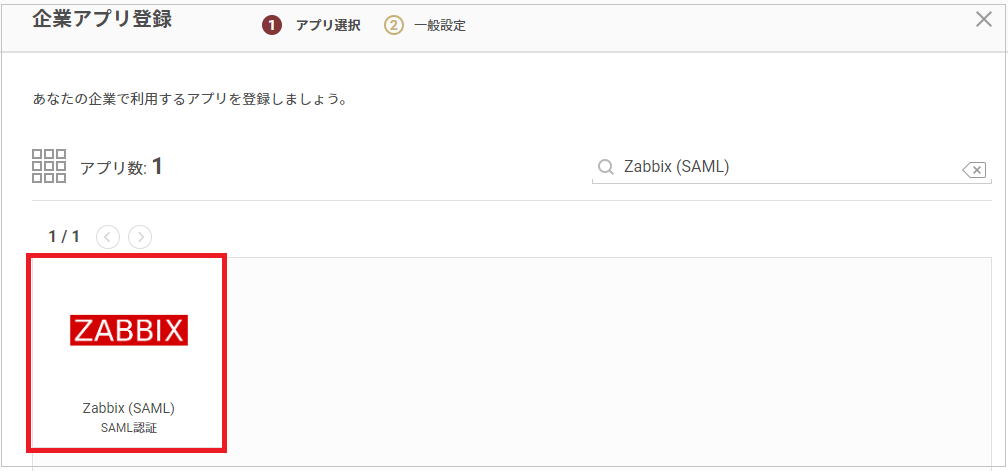

2. Search on the "Add Enterprise App" screen and select "Zabbix (SAML)".

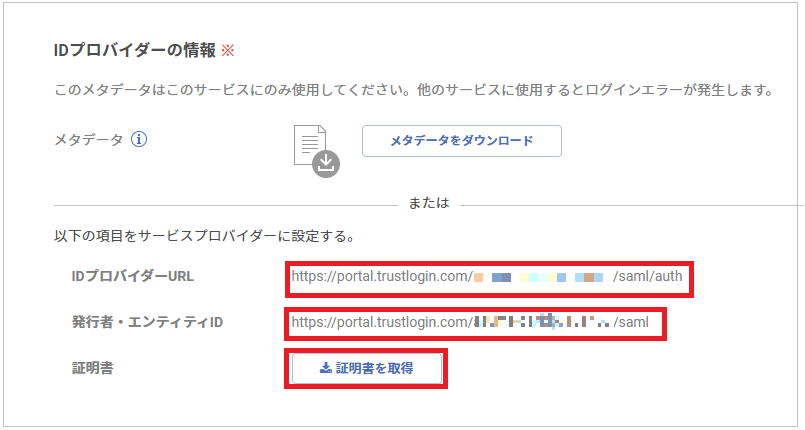

3. Note the values of "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.

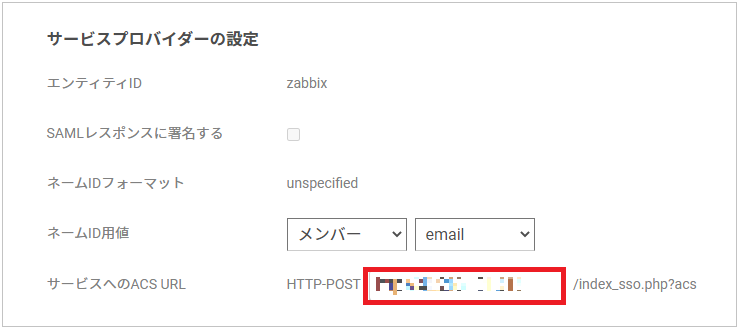

4. Enter your "Zabbix" login URL into "Service ACS URL" under "Service Provider Settings".
   Example: https://example.com/zabbix/ui, http://another.example.com/zabbix, etc.



5. Click the "Register" button to save the settings.

Zabbix Settings

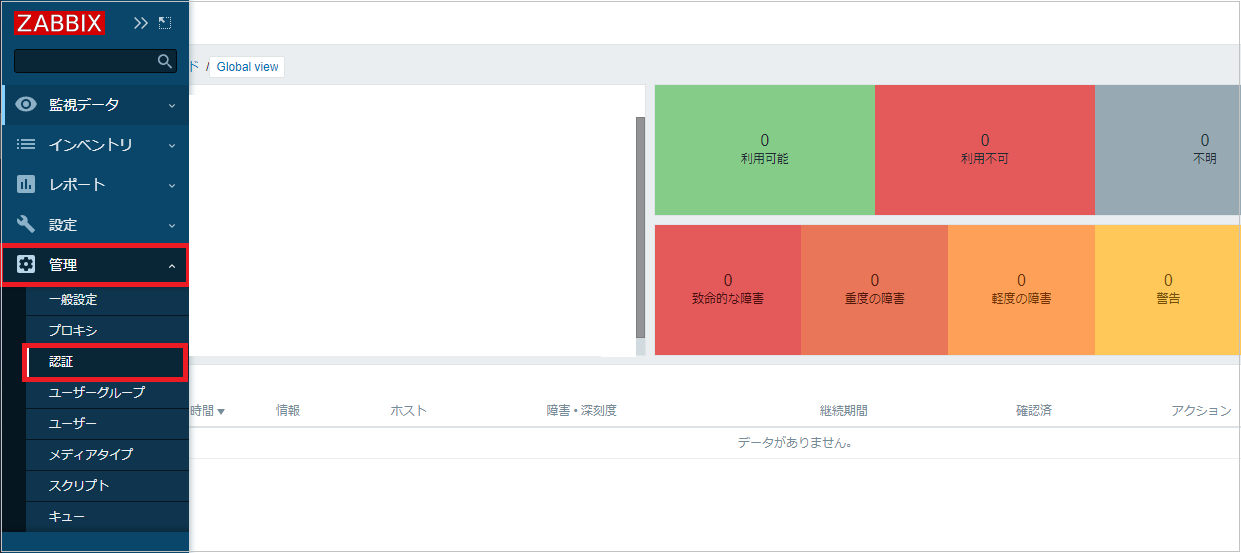

1. Log in with an administrator account and open "Administration > Authentication".

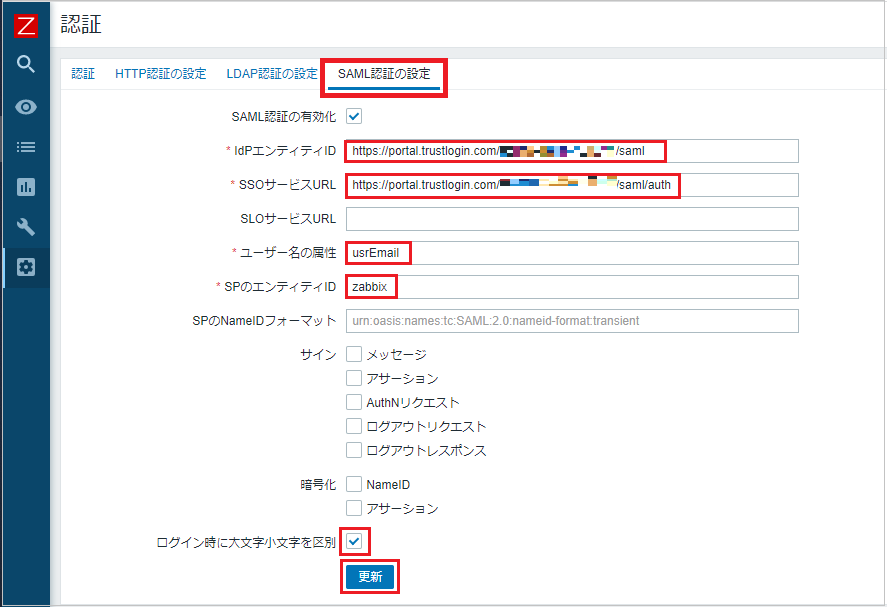

2. In the "SAML settings" section, configure as follows and click "Update".


   Enable SAML authentication	Check the box
   IdP entity ID	The "Issuer/Entity ID" you noted from TrustLogin
   SSO service URL	The "Identity Provider URL" you noted from TrustLogin
   Username attribute	usrEmail
   SP entity ID	zabbix
   Case-sensitive login	Check the box






3. Download the certificate you noted from TrustLogin as idp.crt into the ui/conf/certs folder, and run the following to set permissions to 644.

   chmod 644 idp.crt

TrustLogin User Settings

① When a user adds it from My Page

1. Click the "Add App" button on "My Page".
2. Select "Zabbix (SAML)" on the "Add App" screen and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

② When an administrator adds members

1. Search for and click the "Zabbix (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
