TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

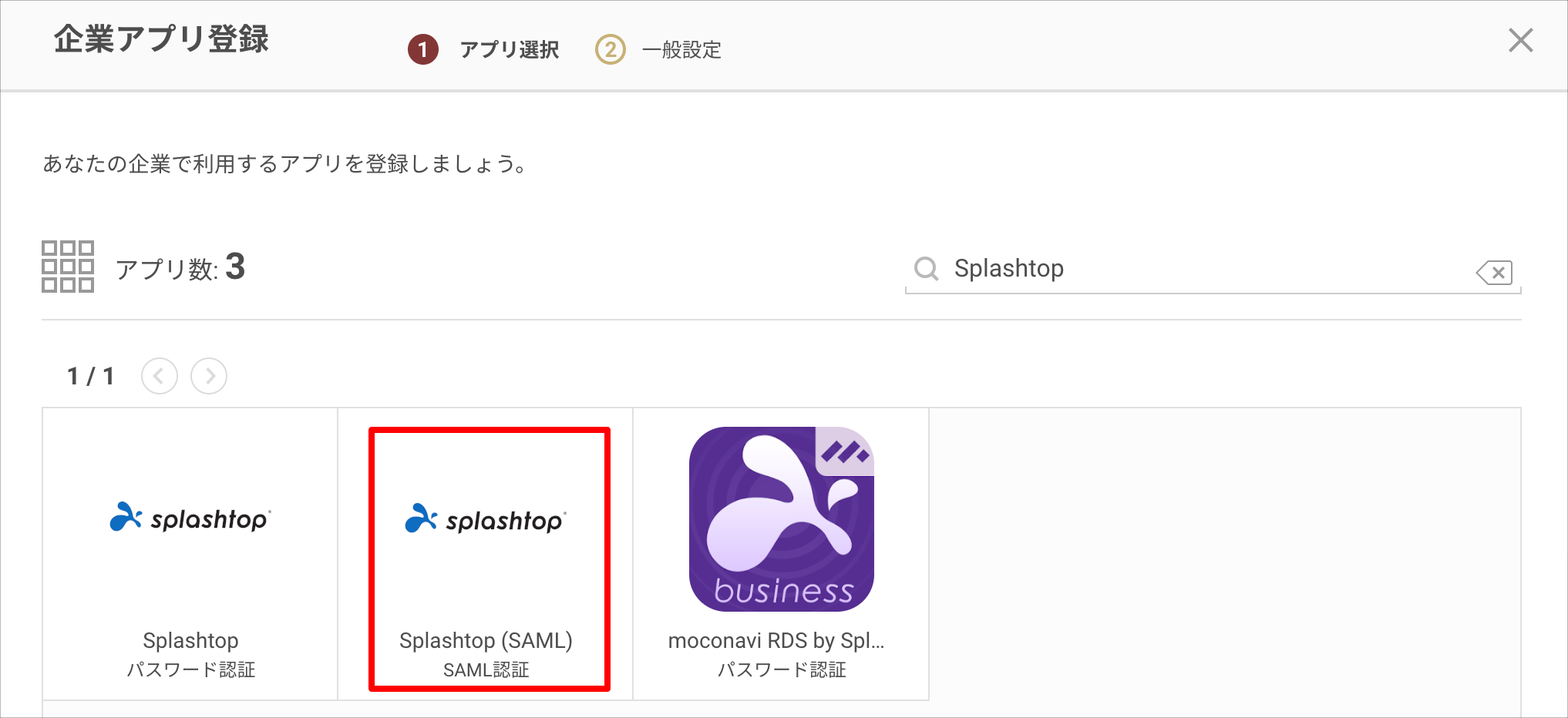

2. On the "Enterprise App Registration" screen, search for and select "Splashtop (SAML)".



3. Download the metadata using the "Download Metadata" button under "Identity Provider Information".



4. Click the "Register" button to save.

Splashtop Settings

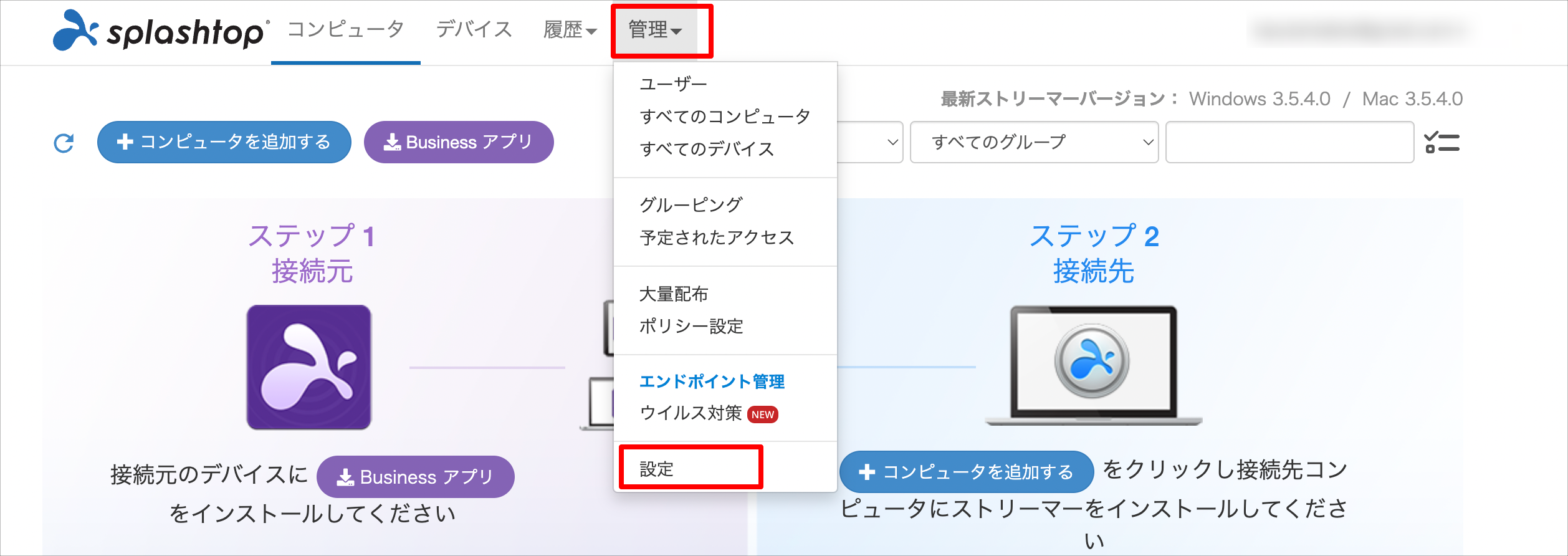

1. Log in with an administrator account and open "Admin > Settings".

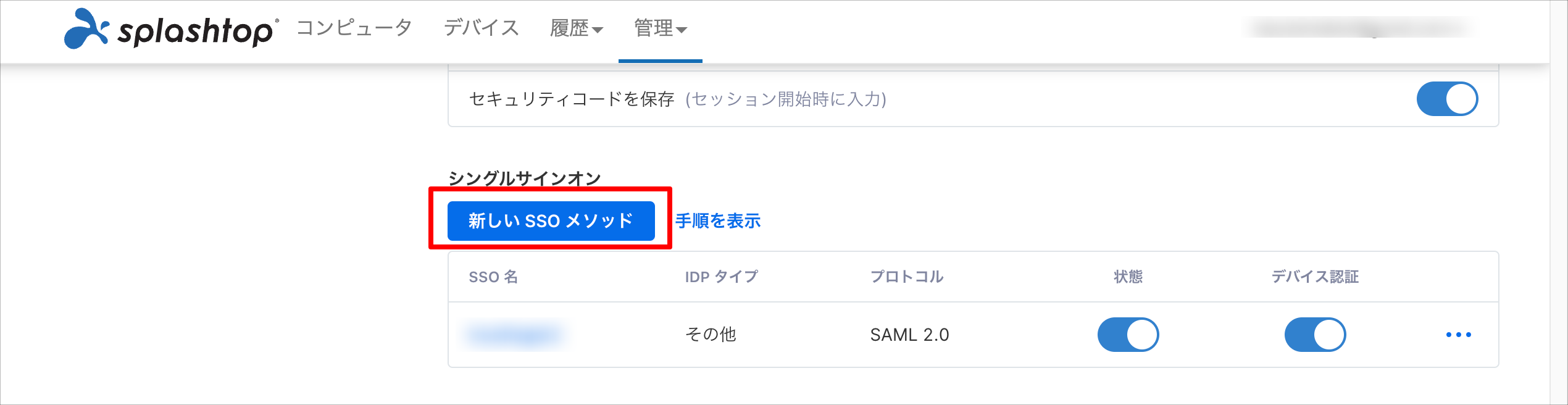

2. Click "New SSO Method" under "Team > Single Sign-On".

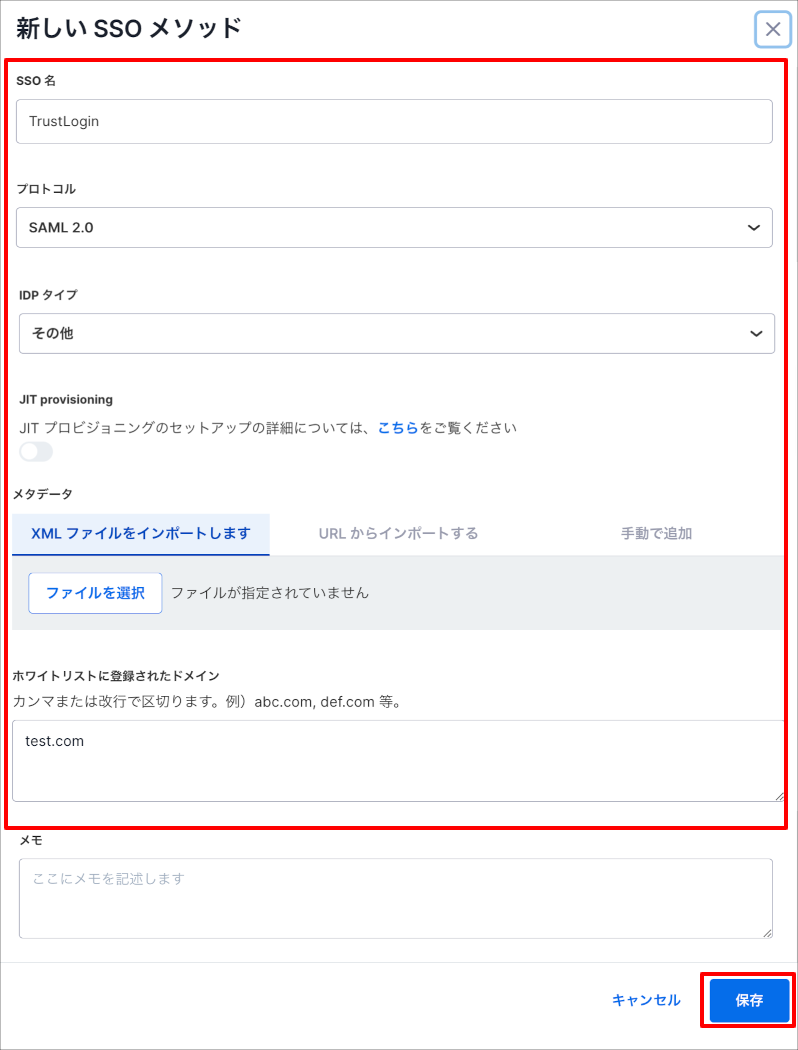

3. Configure each item of "New SSO Method" as follows.


   SSO Name	Any name (e.g., TrustLogin)
   Protocol	SAML2.0
   IDP Type	Other
   JIT Provisioning	OFF
   Metadata	Upload the metadata downloaded from TrustLogin using the "Choose File" button
   Whitelisted Domain	Only accounts with email addresses in whitelisted domains can be added to the SSO method. The domain must be one that you own.





4. You will receive an email from Splashtop to verify your domain. Follow the instructions to configure the DNS records for your domain. For instructions on configuring DNS records, please refer to your domain registrar’s help documentation.

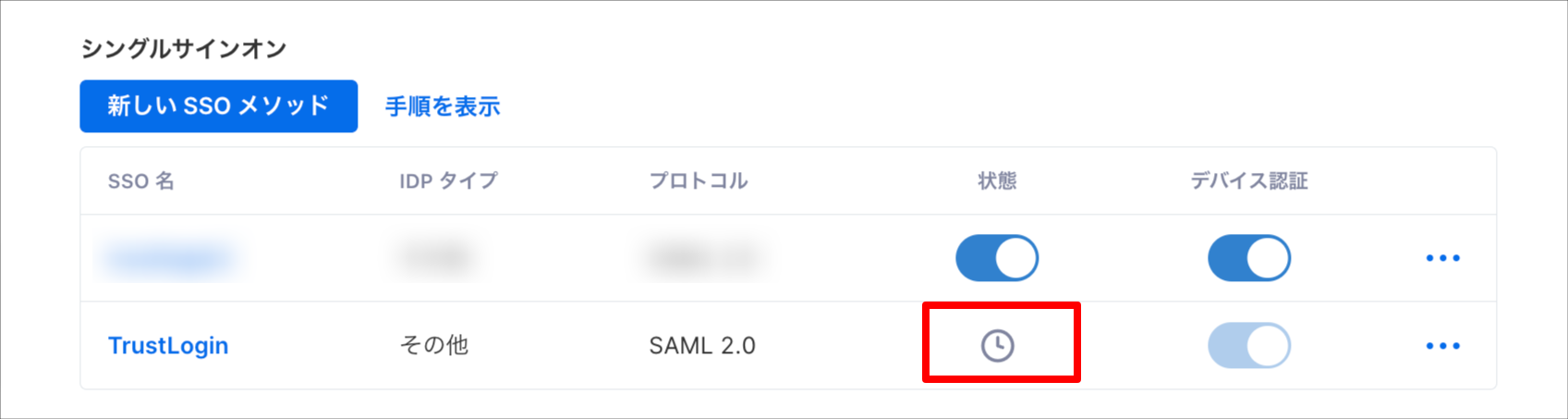

   Until the domain is verified, the "Status" will show "Pending Activation".

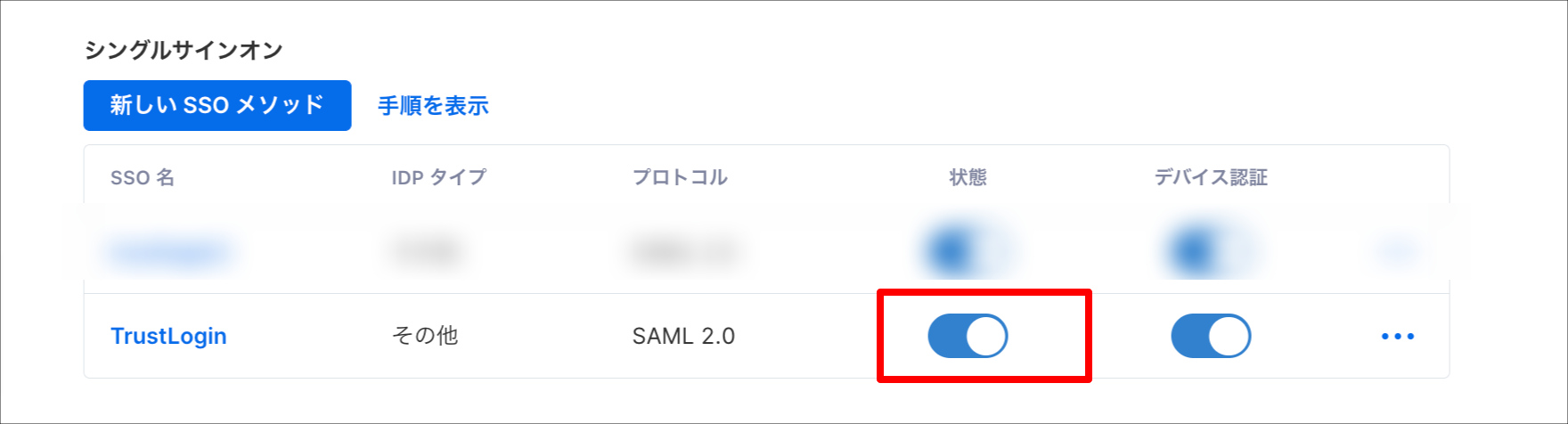

5. Once the domain has been verified, enable the "Status" of the SSO method.
    To disable the device authentication email for the SSO method, turn "Device Authentication" OFF.



6. To associate users with the SSO method, open "Admin > Users".

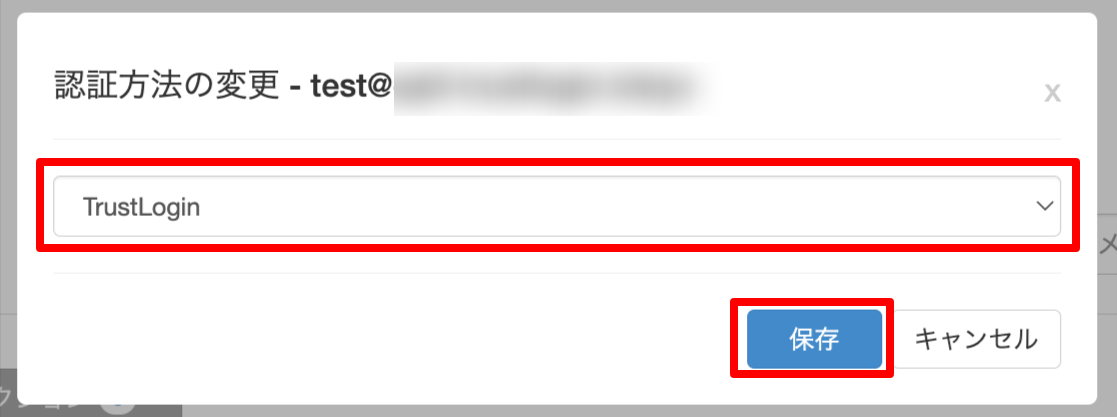

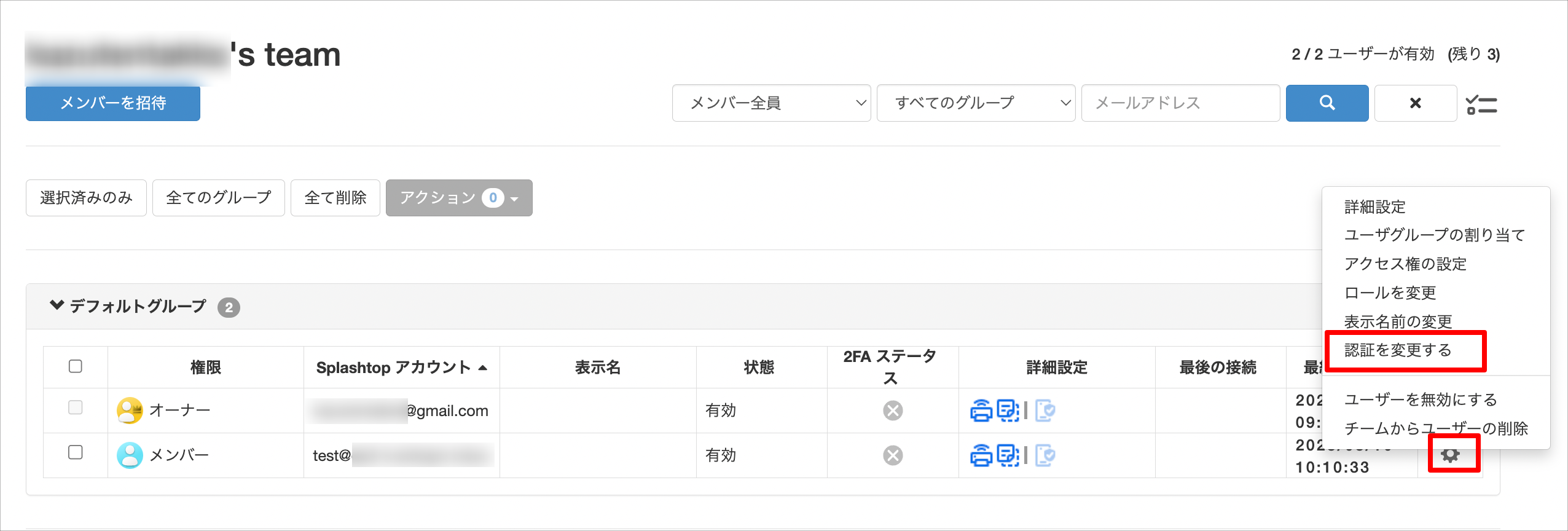

   To associate an existing user, click the gear icon to the right of the target user to open "Change Authentication", select the configured SSO method, and save.

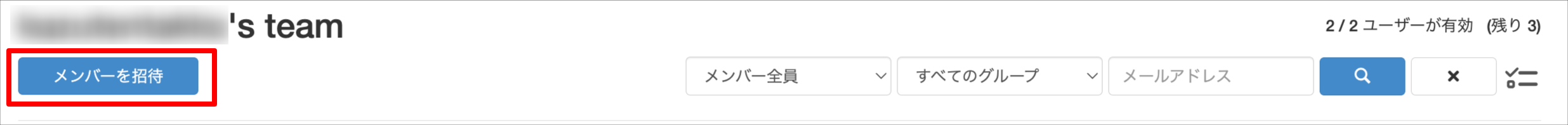

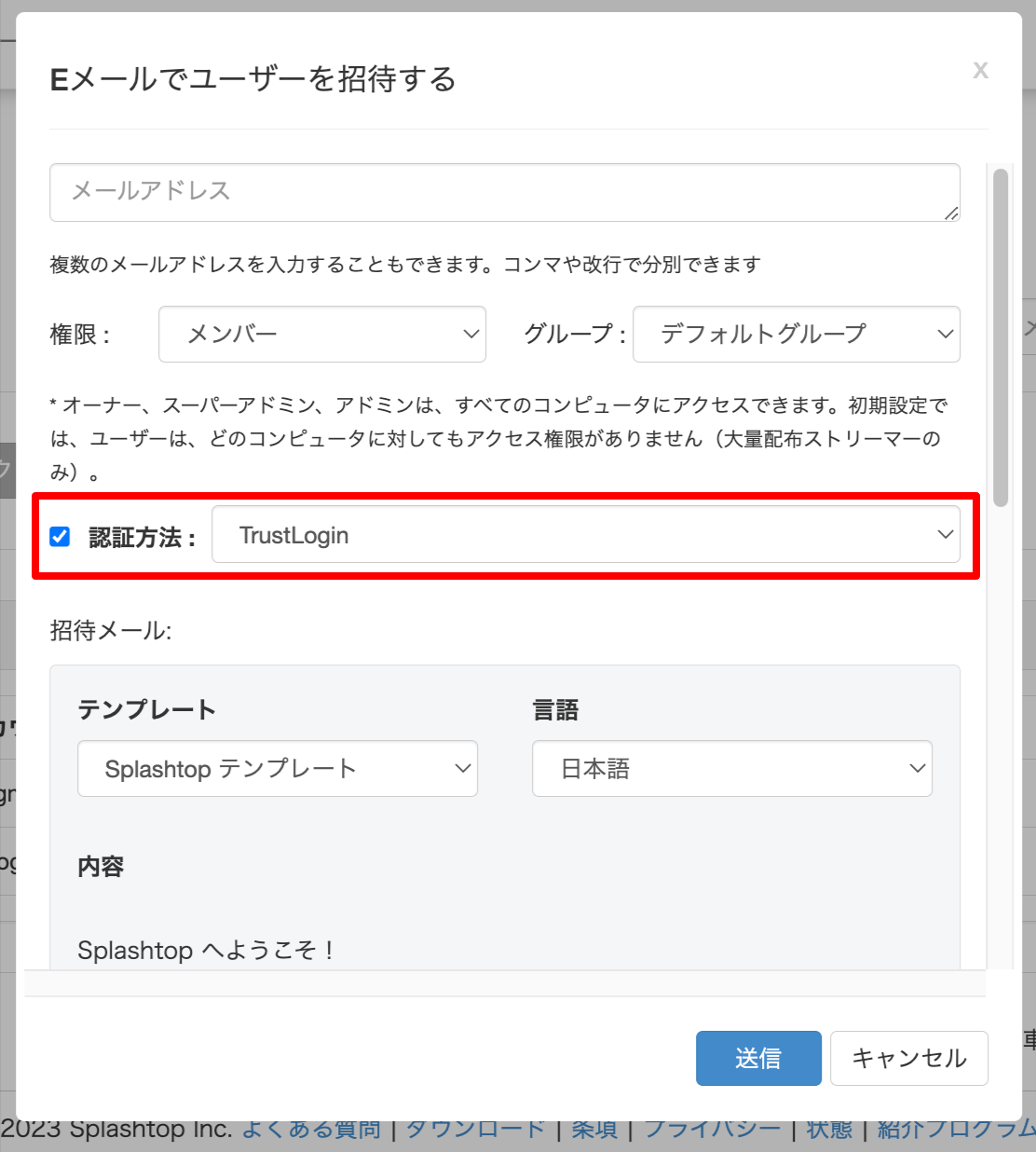

   For a new user, set the "Authentication Method" to the configured SSO method from "Invite Member", and invite the member.



TrustLogin User Configuration

① When a user adds the app from My Page

1. On "My Page", click the "Add App" button.
2. On the "App Registration" screen, select "Splashtop (SAML)", and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, and click the "Register" button.

② When an administrator adds a member

1. In the "Admin Page > Apps" menu, search for and click the "Splashtop (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
