Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure custom attributes, see here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
Supports provisioning via API (account management possible in TrustLogin) |
|
|
Supports SAML JIT provisioning (account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verification Status by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
※ |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
※ |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
Note: Depends on the support status of the server where WordPress is installed
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

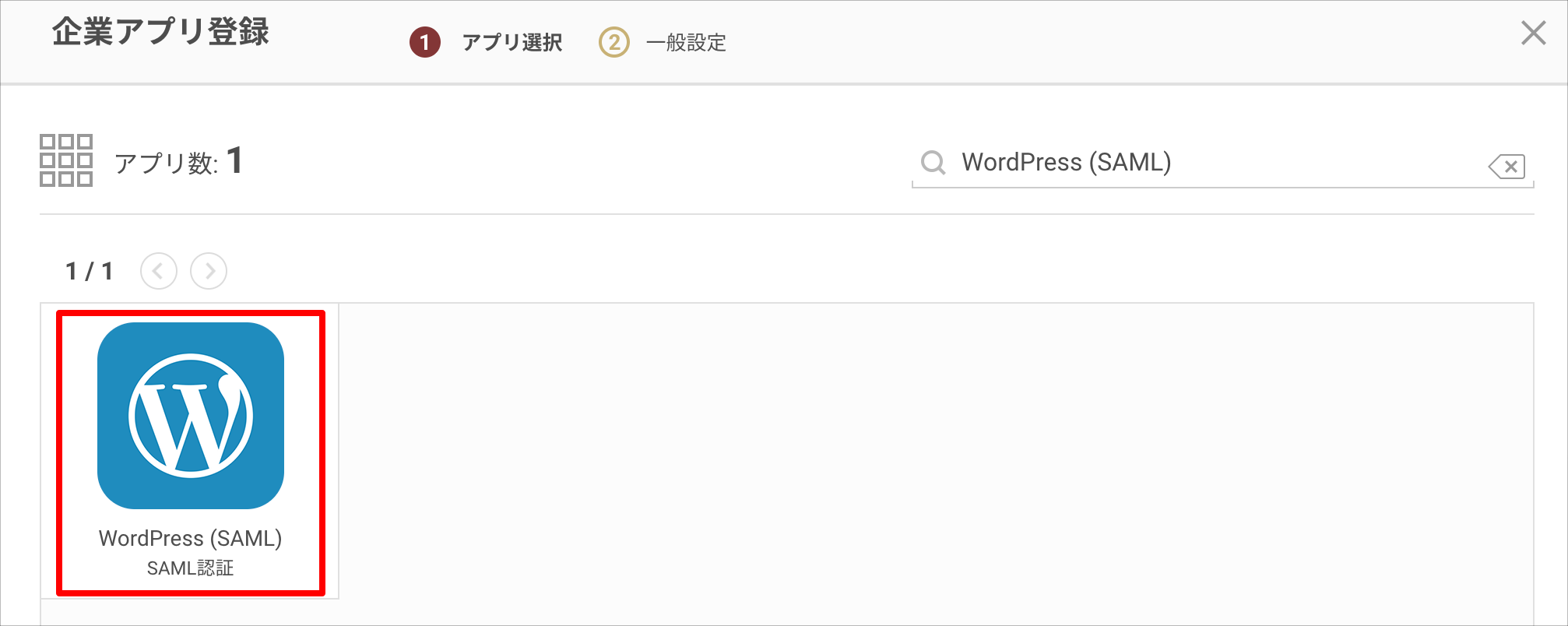

- Search on the "Register Corporate App" screen and select "WordPress (SAML)".
-
Note down the values for "IdP URL" and "Issuer / Entity ID" under "Identity Provider Information," and download the certificate using the "Get Certificate" button.
Now let's move on to the configuration on the WordPress side. Please open WordPress in a separate window.
WordPress Configuration

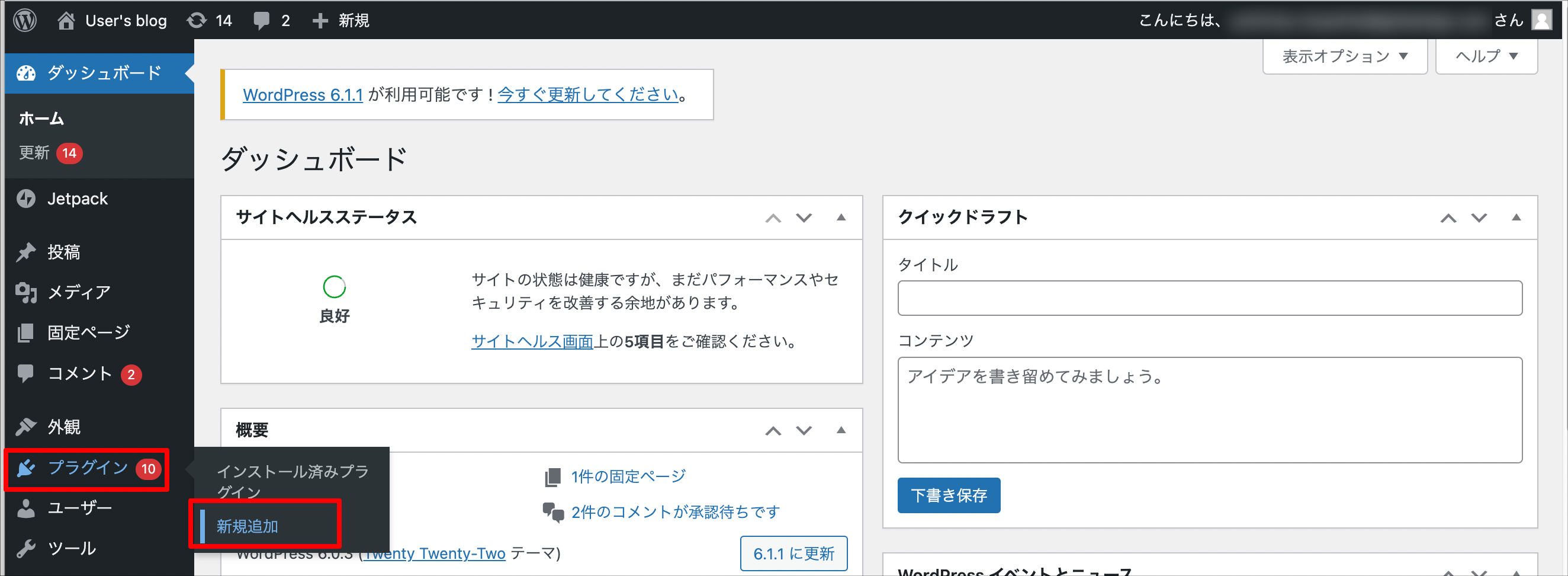

- Log in with an administrator account and open "Plugins > Add New".

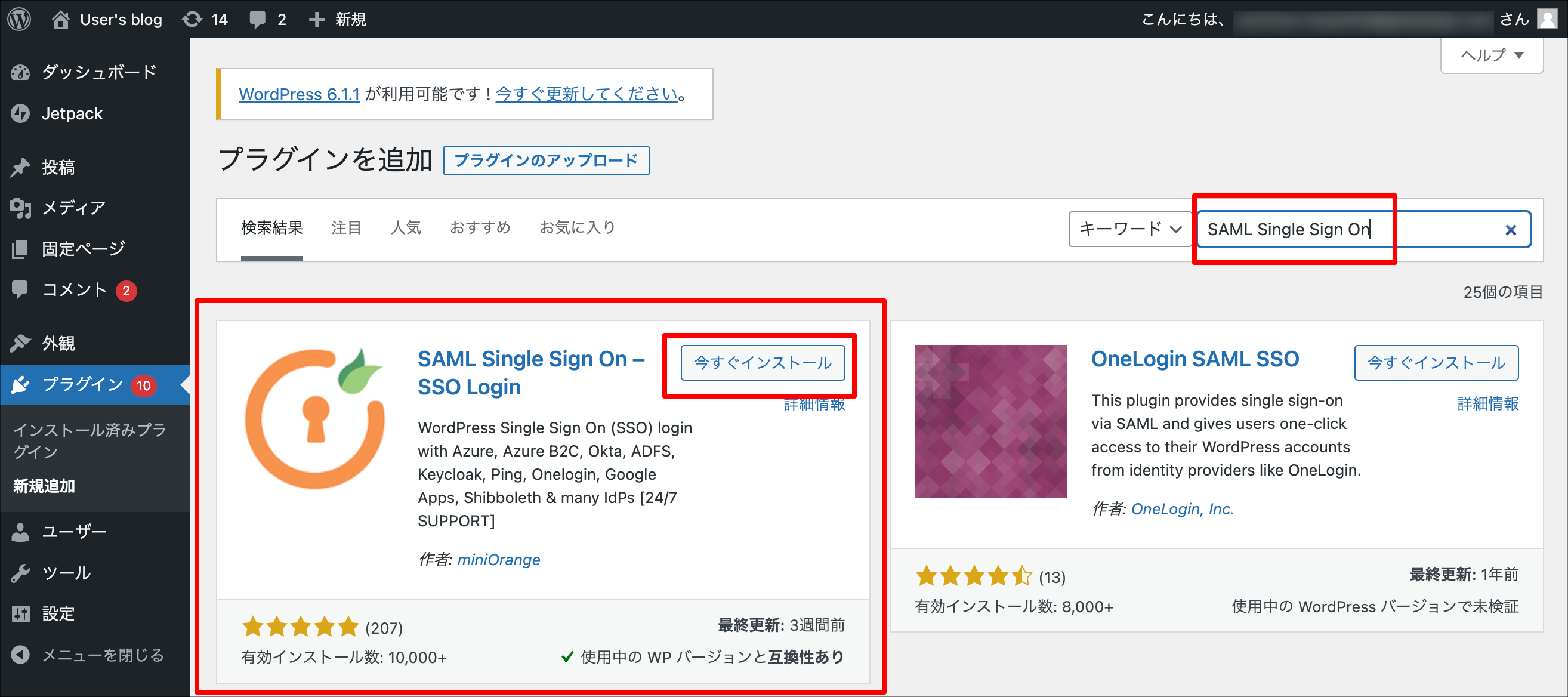

- Search for "SAML Single Sign On," click "Install Now," and run the installation.

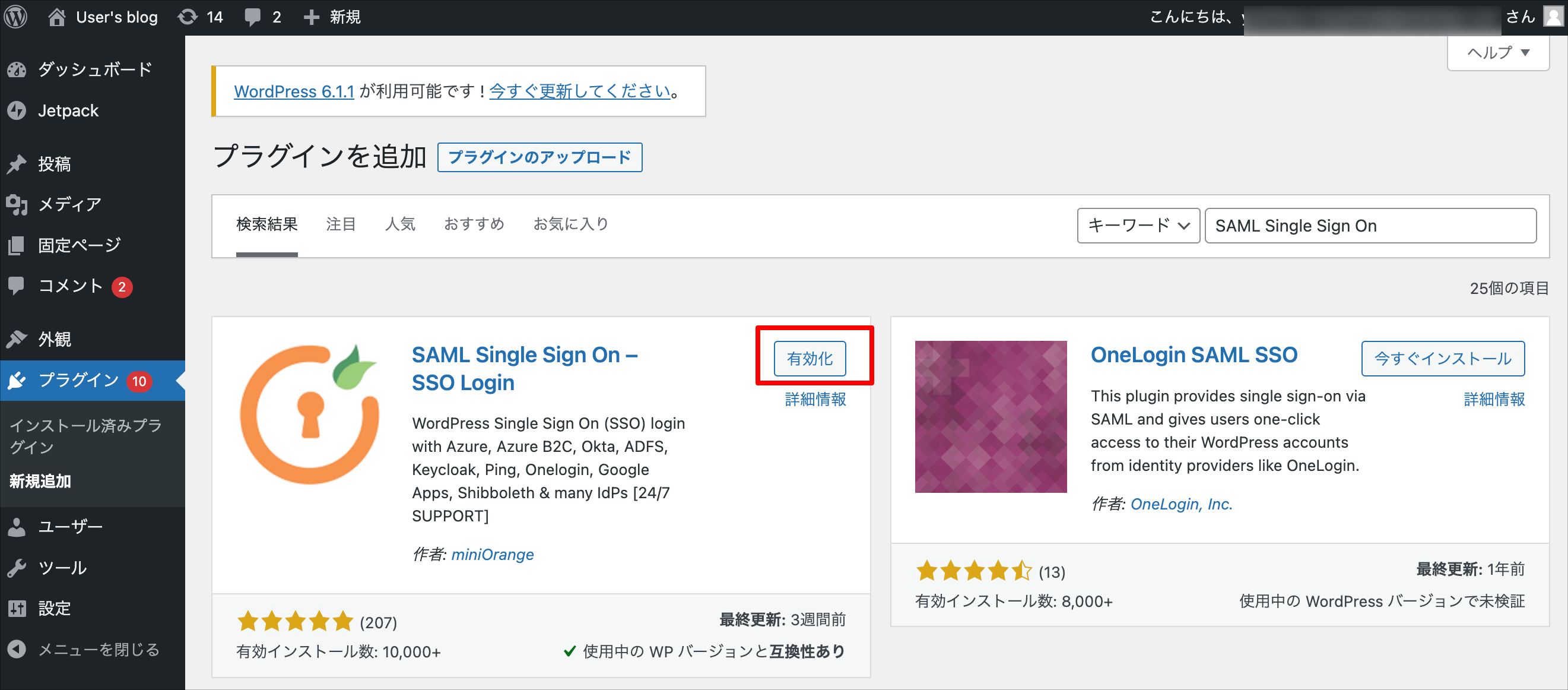

- Click "Activate".

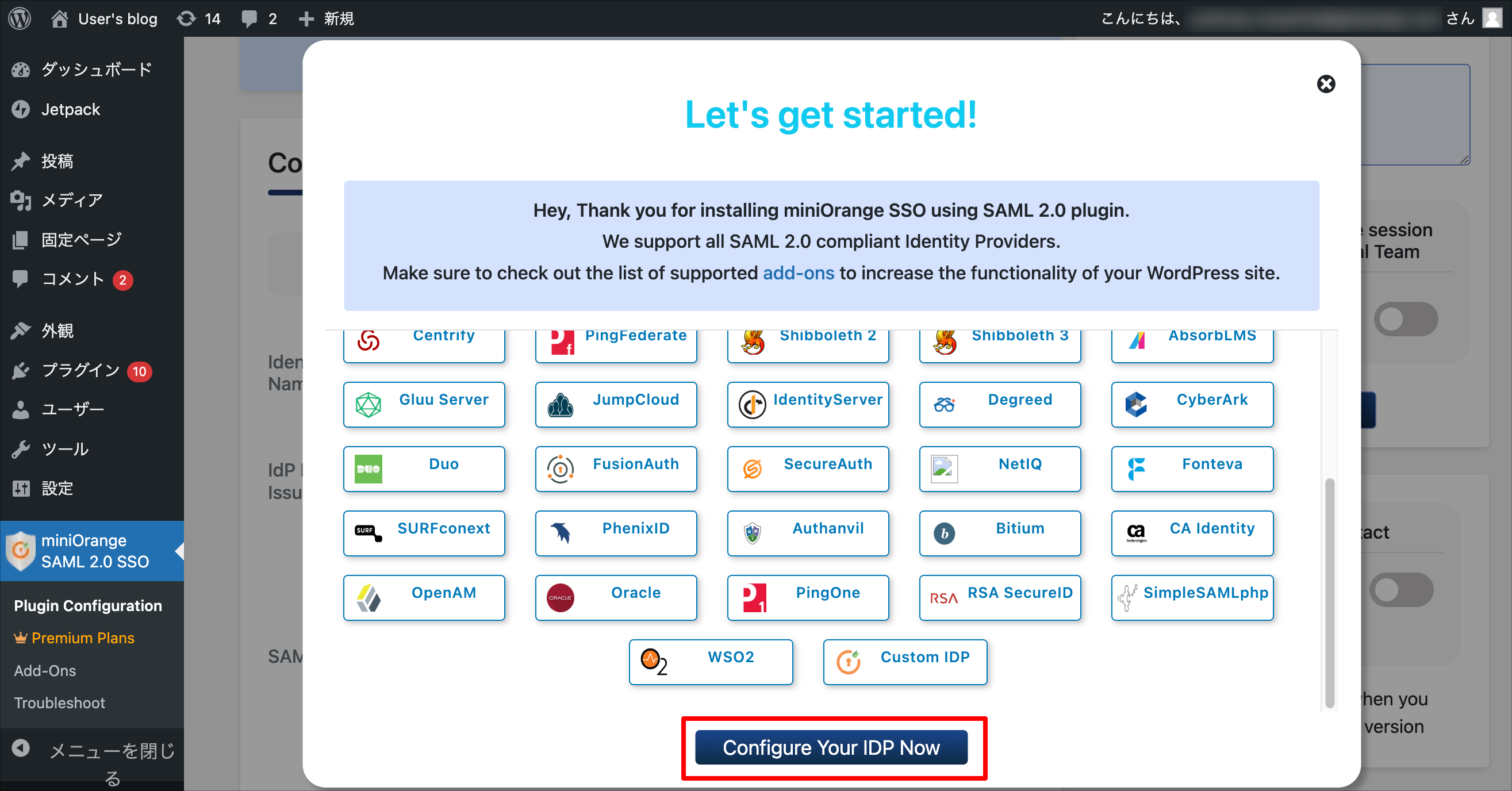

- Click "Configure Your IDP Now".

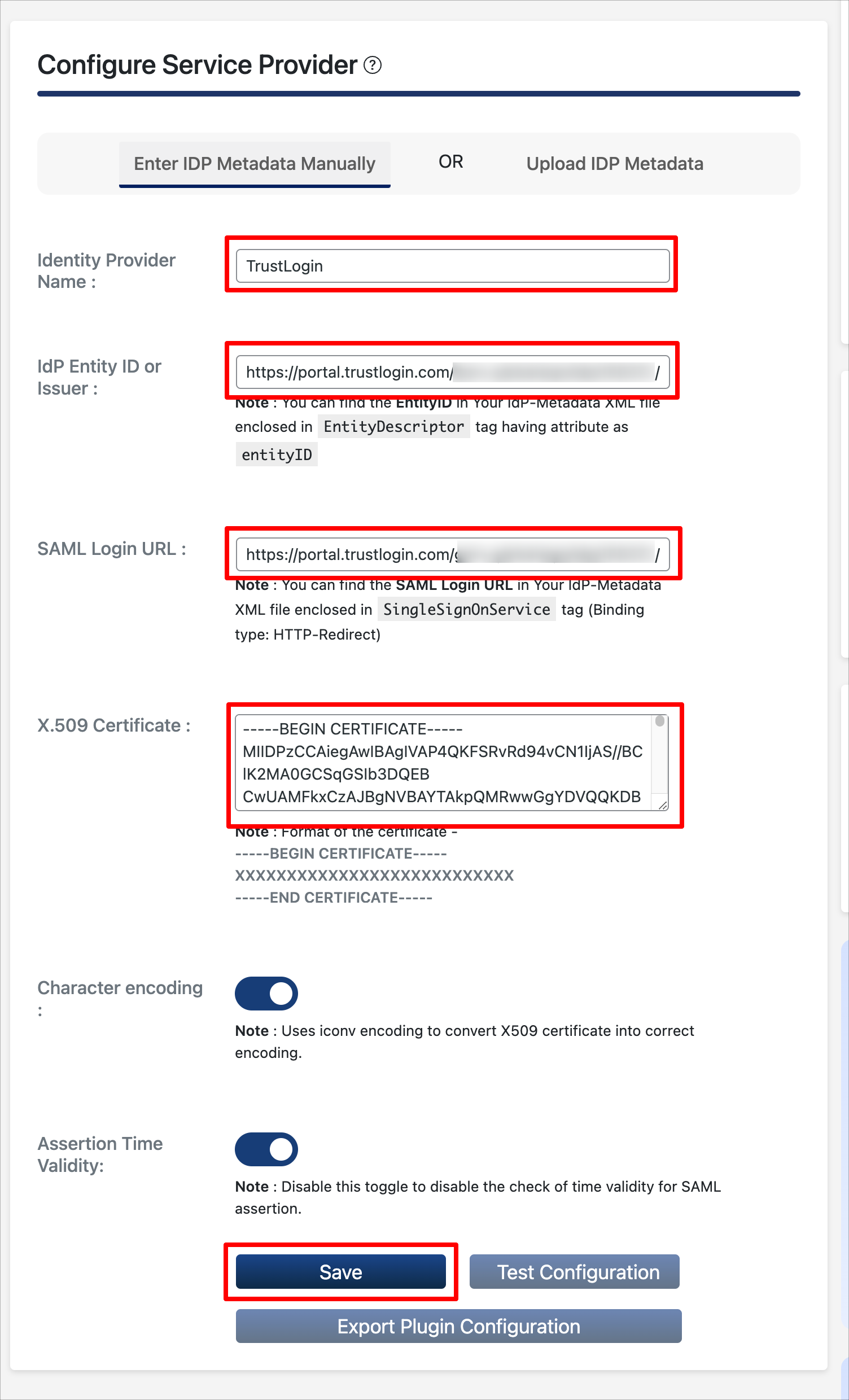

- Configure each field under "Configure Service Provider" in "Service Provider Setup" as follows, and save by clicking "SAVE".
Identity Provider Name Any name of your choosing, such as "TrustLogin"
IdP Entity ID or Issuer The "Issuer / Entity ID" obtained from TrustLogin SAML Login URL The "IdP URL" obtained from TrustLogin X.509 Certificate The contents of the "Certificate" obtained from TrustLogin

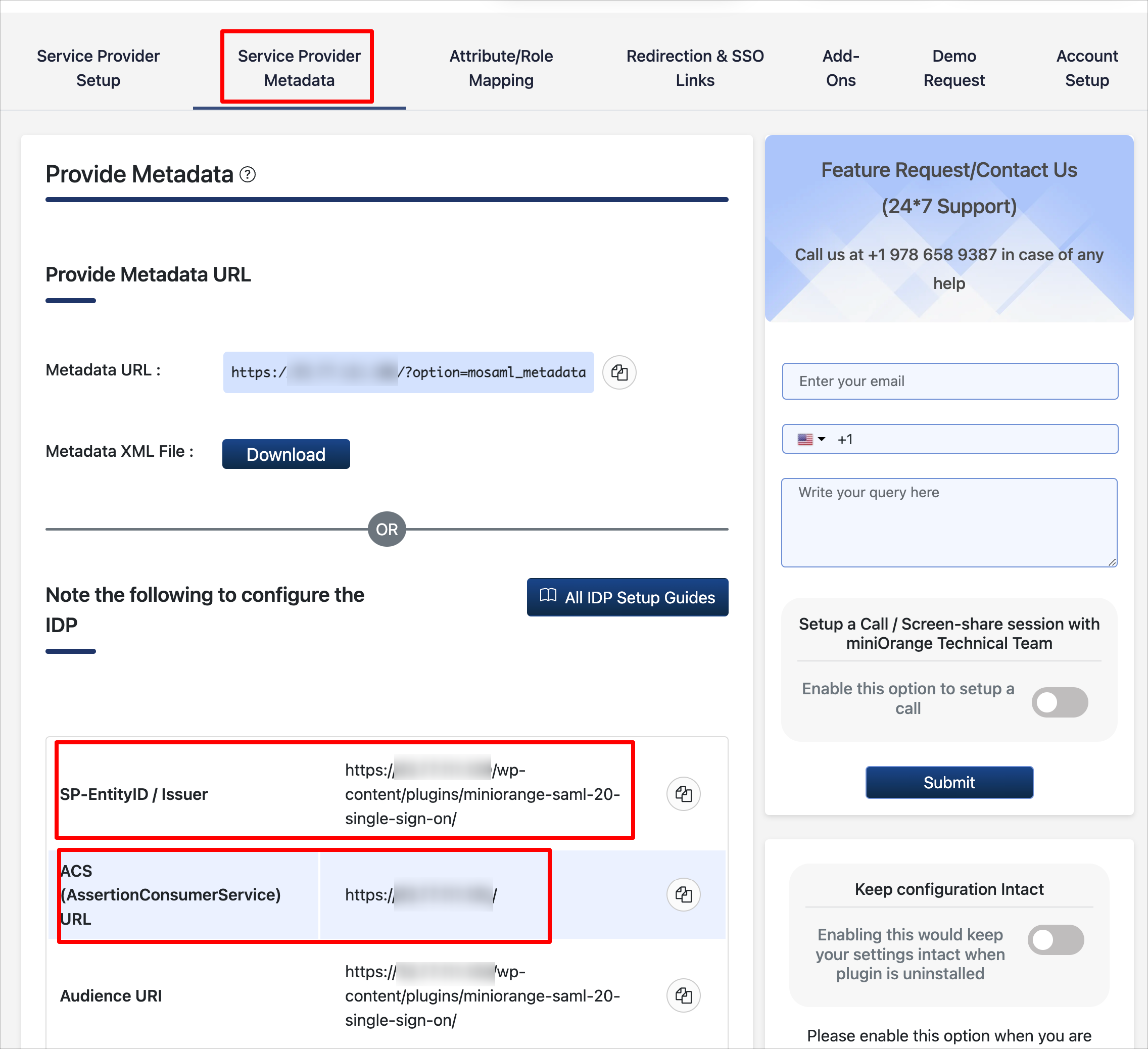

- Open "Service Provider Metadata" and note down the values for "SP-EntityID / Issuer" and "ACS (AssertionConsumerService) URL".
Now return to the TrustLogin configuration.
TrustLogin Admin Page Configuration (Continued)
-

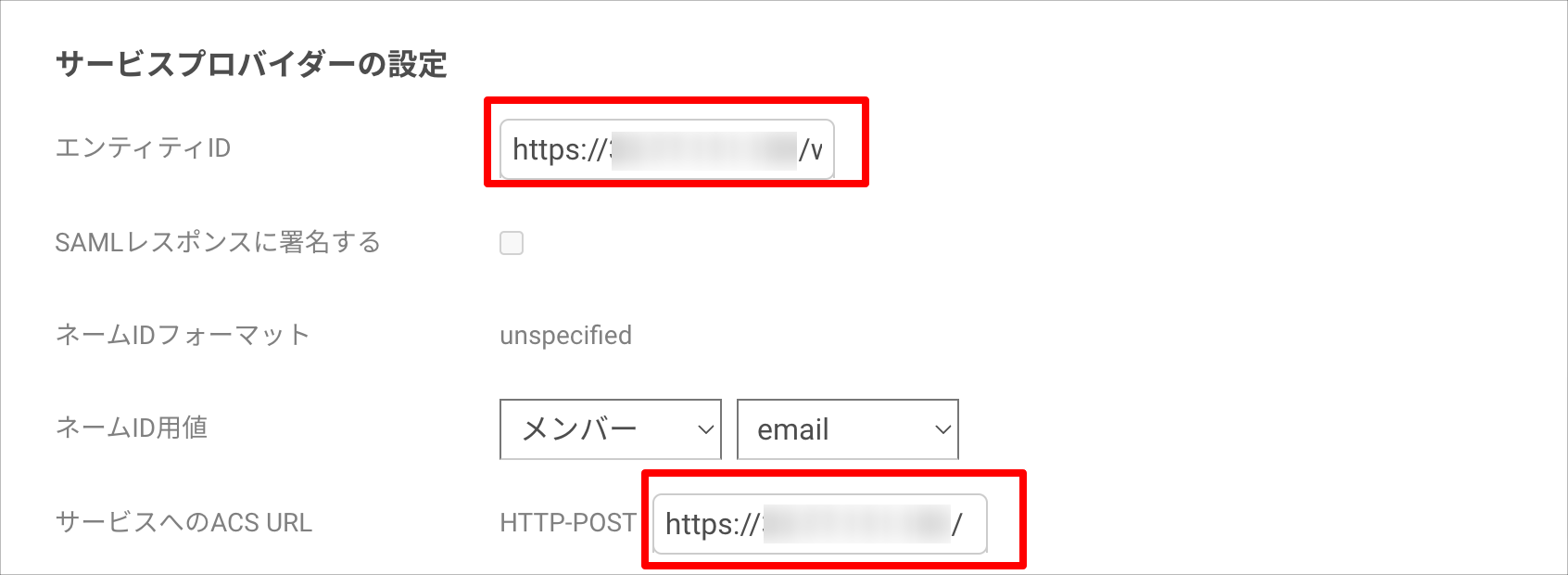

Configure each field under "Service Provider Settings" as follows.
Entity ID The "SP-EntityID / Issuer" obtained from WordPress ACS URL for the Service The "ACS (AssertionConsumerService) URL" obtained from WordPress
- Save by clicking the "Register" button.
TrustLogin User Configuration
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "WordPress (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name," enter it, then click the "Register" button.
② When an Administrator Adds a Member
- In the "Admin Page > Apps" menu, search for the "WordPress (SAML)" app and click it.
- Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
