TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

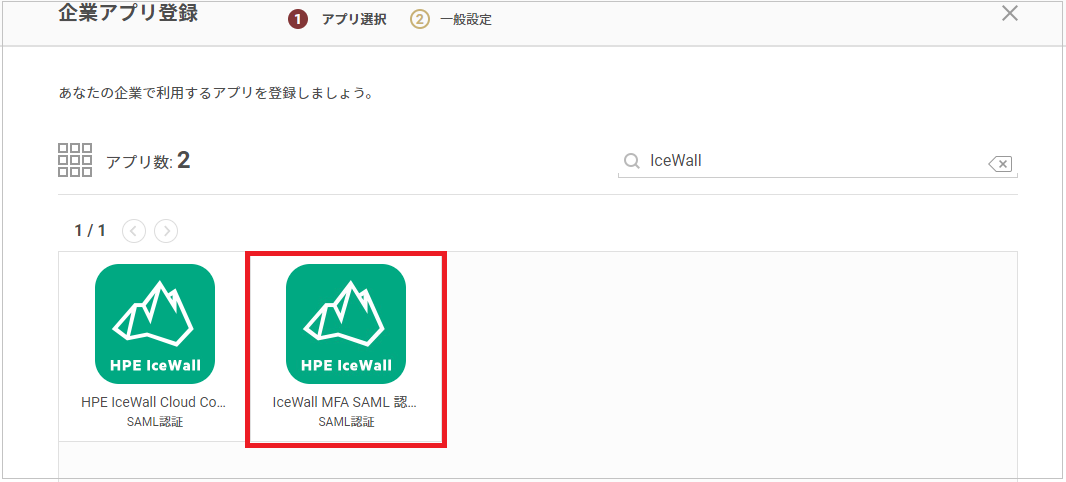

2. On the "Register Corporate App" screen, search and select "IceWall MFA SAML Authentication Option (SAML)".



3. Under Identity Provider Information, obtain the metadata from "Download Metadata", then save the app configuration by clicking the "Register" button.



4. Send the following information to your IceWall MFA SAML Authentication Option representative and request SAML configuration.


   Metadata	The "metadata" downloaded from TrustLogin
   NameID	Email address




5. When you receive notice from the IceWall MFA SAML Authentication Option that their configuration is complete, resume the configuration.
   (On the App screen of the Admin Page, search for the app by name → open the corresponding app's detail screen → change the SAML app settings)

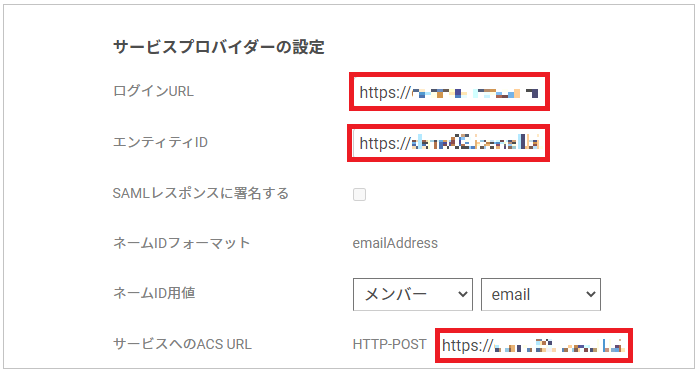

6. Configure "Service Provider Settings" as follows.


   Login URL	The "Access URL" sent by the IceWall MFA SAML Authentication Option
   Entity ID	The "Identifier (Entity ID)" sent by the IceWall MFA SAML Authentication Option
   ACS URL for the service	The "Assertion Consumer Service URL" sent by the IceWall MFA SAML Authentication Option





7. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "IceWall MFA SAML Authentication Option (SAML)", and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds Members

1. In the "Admin Page > App" menu, search for and click the "IceWall MFA SAML Authentication Option (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
