Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
NameID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure custom attributes, see here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
Supports provisioning via API (accounts can be managed in TrustLogin) |
|
|
Supports SAML JIT provisioning (accounts can be managed in TrustLogin; user deletion is not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verified Operation by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

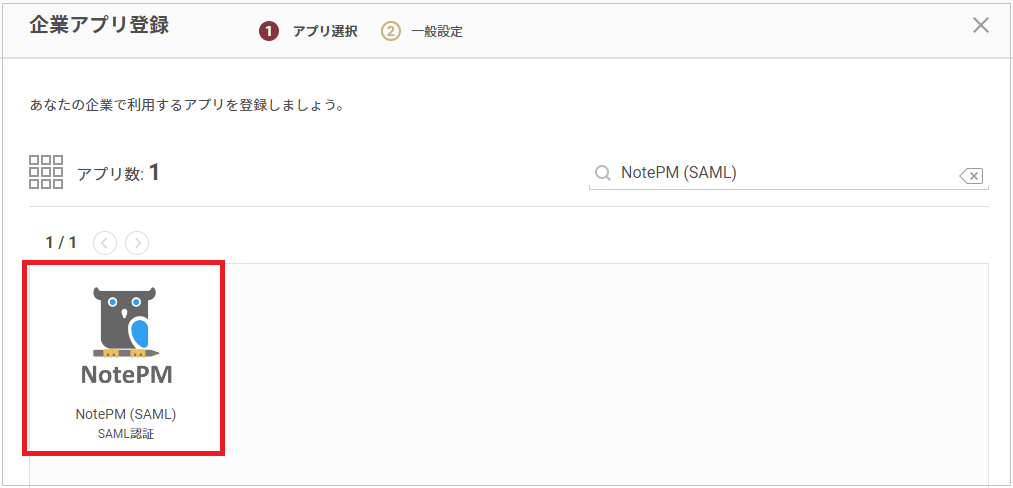

- Search on the "Register Corporate App" screen and select "NotePM (SAML)".
-
Under "Identity Provider Information", download the metadata using the "Download Metadata" button.
Now switch to the NotePM configuration. Please open NotePM in a separate window.
NotePM Configuration

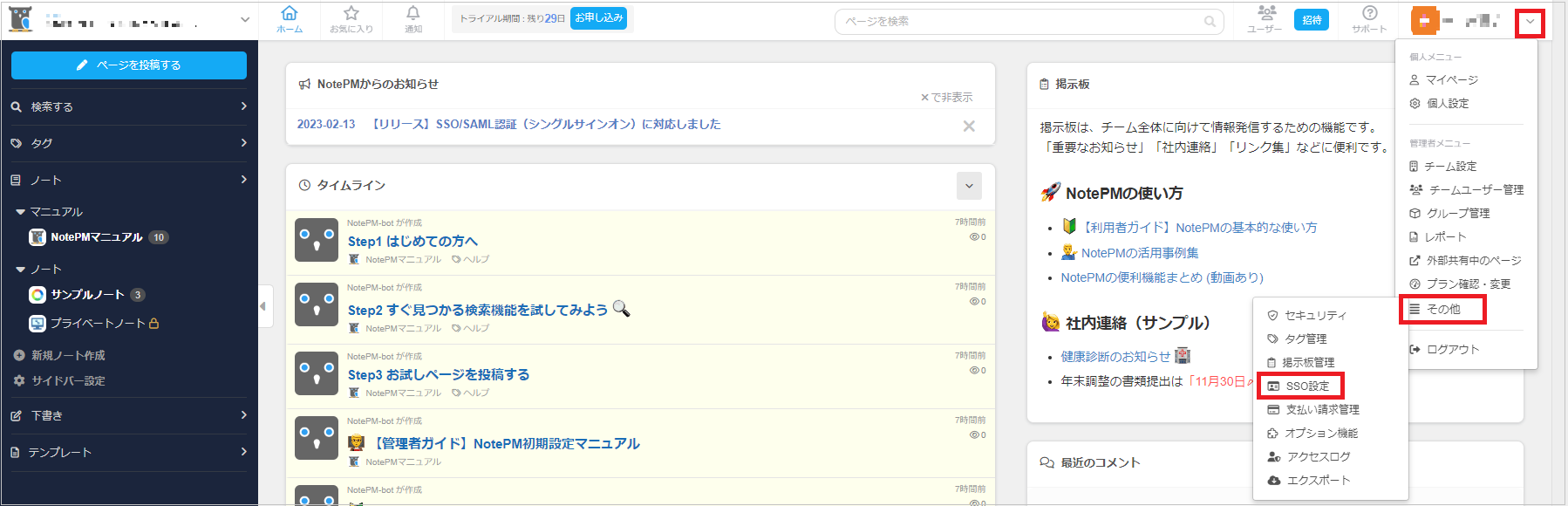

- Log in with an account that has owner privileges, click the registered user name at the top right, and select "Other > SSO Settings".

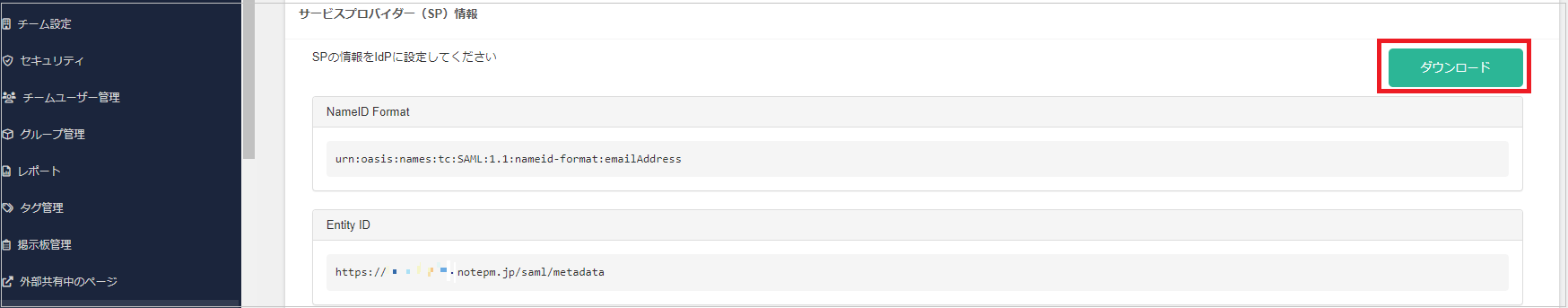

- Under "Service Provider (SP) Information", click the "Download" button to download the metadata.
- Under "Identity Provider (IdP) Information", use "Choose File" to upload the metadata you downloaded from TrustLogin.

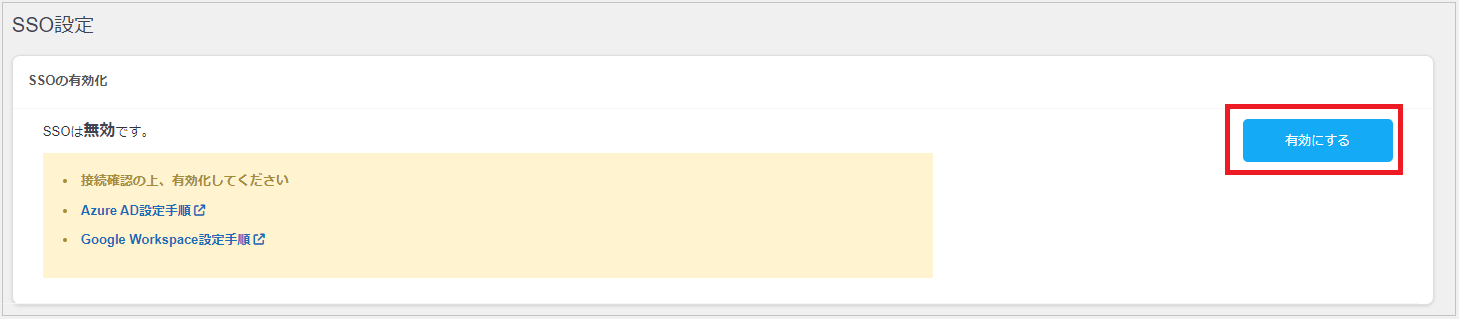

- At the top of the settings screen, under "Enable SSO", click "Enable" to turn on SSO.
-

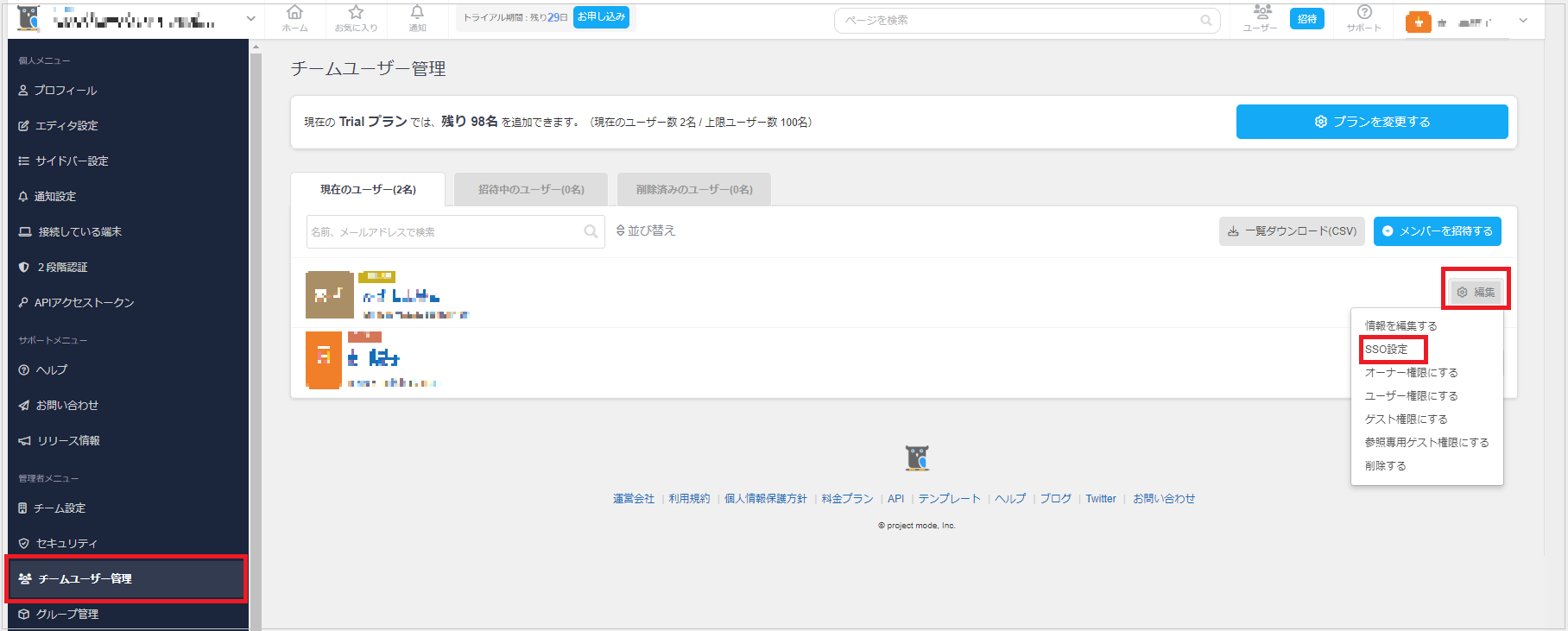

From the menu on the left, select "Team User Management", then select the user for whom you want to enable SSO. Select "Edit > SSO Settings".

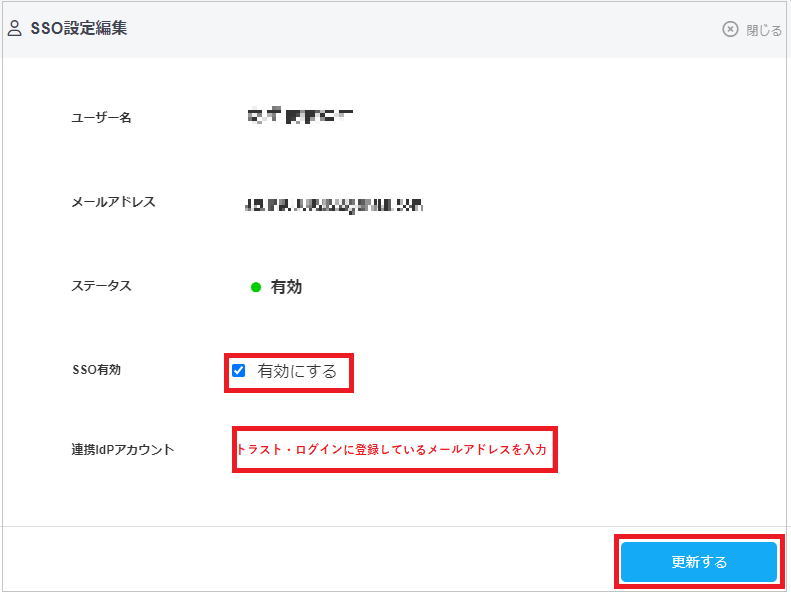

- Check "Enable" under "SSO Enabled", enter the email address registered in TrustLogin into "Linked IdP Account", and click "Update".
TrustLogin Admin Page Configuration (Continued)-

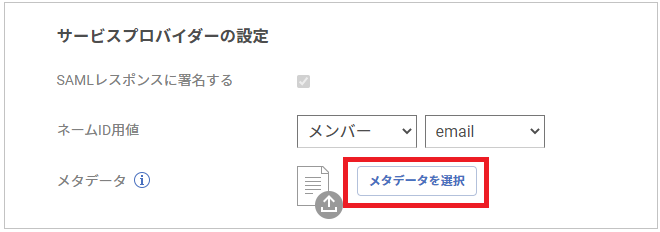

Under "Service Provider Settings", use "Choose Metadata" to upload the metadata you obtained from NotePM.
- Save the settings using the "Register" button.
TrustLogin User Configuration① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- Select "NotePM (SAML)" on the "Register App" screen, and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an administrator adds members
- In the "Admin Page > Apps" menu, search for and click the "NotePM (SAML)" app.
- Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
-
Under "Service Provider Settings", use "Choose Metadata" to upload the metadata you obtained from NotePM.
