How to Configure SAML Authentication for Colorkrew Biz (User Portal)

Item

Details

Prerequisites

  • Prior configuration in Colorkrew Biz is required.

  • You must create an account in Colorkrew Biz using the same email address as your TrustLogin account.

  • For the latest setup instructions, please refer to the manual provided by Colorkrew Biz.

  • This manual describes how to configure SAML authentication for the Colorkrew Biz User Portal. For instructions on configuring SAML authentication for the Admin Tool, please see here.

Name ID

Email address

Custom attribute Note: For instructions on configuring custom attributes, see here

SP-side Configuration

Configured by the administrator

Request configuration from the SP

Provisioning

Supports provisioning via API (provisioning; account management possible in TrustLogin)

Supports SAML JIT provisioning (account management possible in TrustLogin; user deletion not supported)

None (accounts are created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verified Operation Status by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App

TrustLogin Admin Page Configuration

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

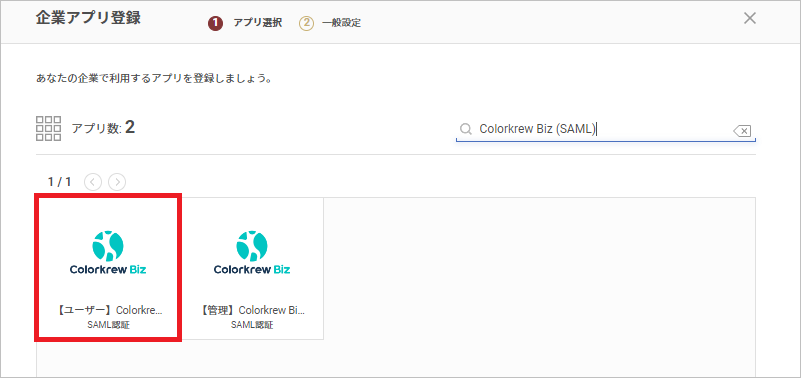

  2. On the "Register Corporate App" screen, search and select "[User] Colorkrew Biz (SAML)".

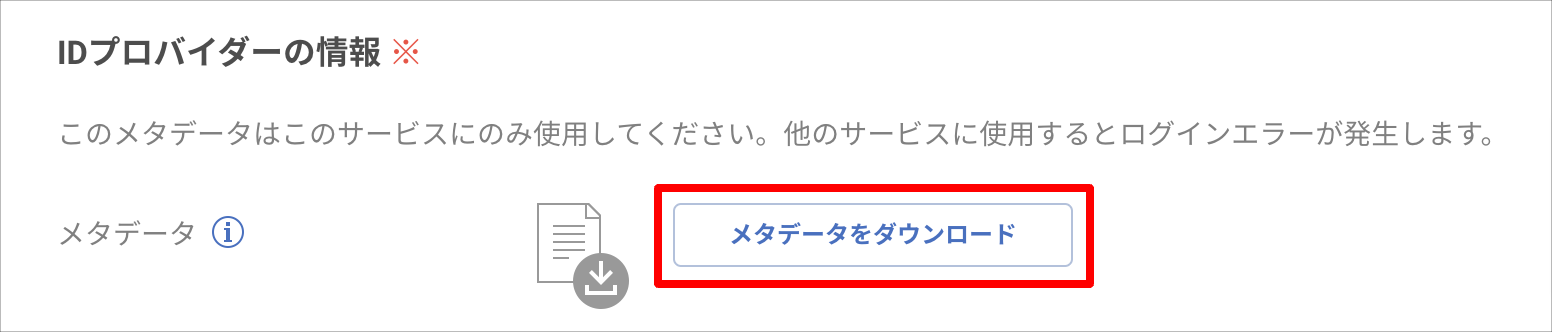

  3. Obtain the metadata from "Download Metadata" under the Identity Provider information, and click the "Register" button to save the app settings. Send this to your Colorkrew Biz representative and request the SAML configuration.

  4. Once Colorkrew Biz provides you with the configuration information, resume the setup.
    (On the Admin Page Apps screen, search for the app by name → open the relevant app's detail screen → change the SAML app settings.)
    Configure each Service Provider setting item as follows:
    Entity ID The "Identifier (Entity ID)" provided by Colorkrew Biz
    ACS URL for the Service The "Response URL (Assertion Consumer Service URL)" provided by Colorkrew Biz


  5. Click the "Register" button to save.

TrustLogin User Configuration

① When a User Adds the App from My Page

  1. On "My Page," click the "Add App" button.
  2. On the "Register App" screen, select "[User] Colorkrew Biz (SAML)" and click the "Next" button at the top right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds Members

  1. In the "Admin Page > Apps" menu, search for and click the "[User] Colorkrew Biz (SAML)" app.
  2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
