How to Configure SAML Authentication for MOVIE LIBRARY

Item

Content

Prerequisites

  • MOVIE LIBRARY requires advance configuration.

  • MOVIE LIBRARY’s email address must match the one used in TrustLogin.

  • For the latest setup instructions, please refer to the manual provided by MOVIE LIBRARY.

Name ID

Email address



Custom attribute Note: For instructions on how to configure custom attributes, see here

SP-Side Configuration



Configured by the administrator

Request configuration from the SP

Provisioning



Supports API-based provisioning (accounts can be managed in TrustLogin)



Supports SAML JIT provisioning (accounts can be managed in TrustLogin; user deletion not supported)

None (accounts are created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verification Status by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App



TrustLogin Admin Page Configuration

  1. Log in to TrustLogin, open the “Admin Page > Apps” menu, and click the “Register App” button in the upper right of the screen.

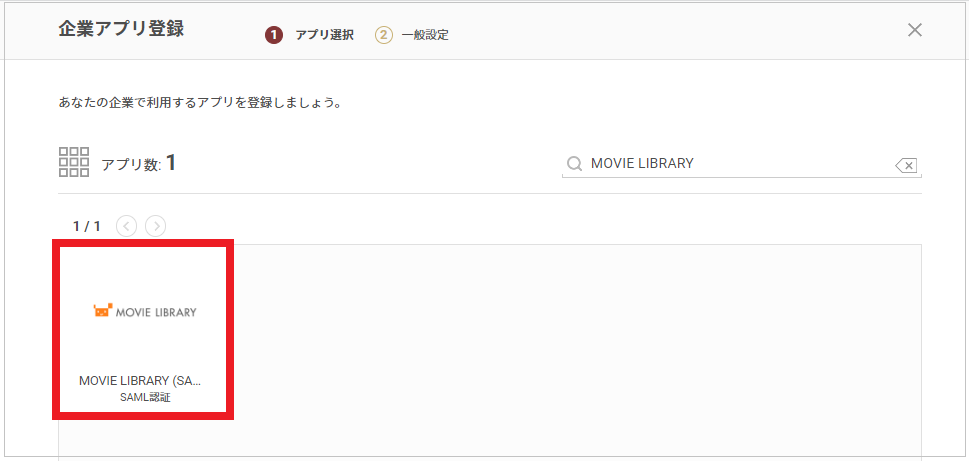

  2. On the “Corporate App Registration” screen, search and select “MOVIE LIBRARY (SAML)”.

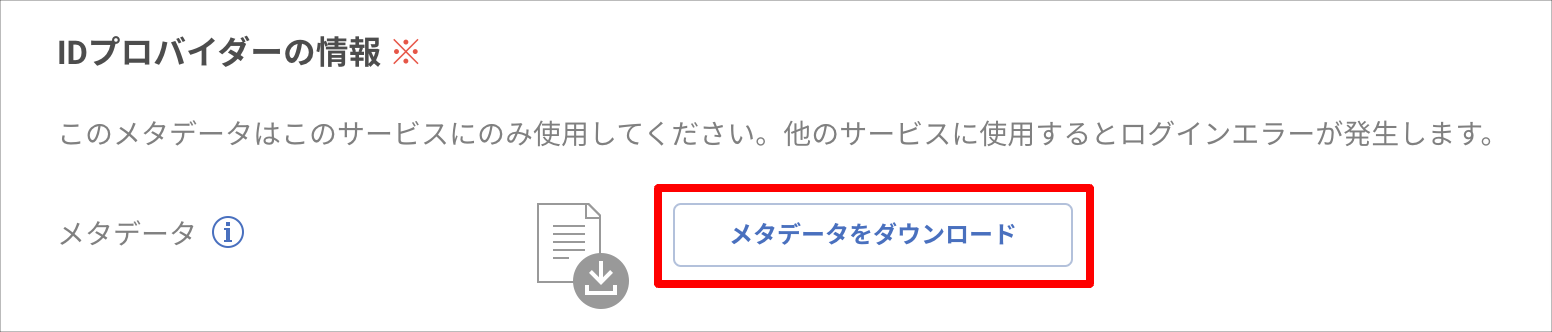

  3. Get the metadata from “Download Metadata” under Identity Provider Information, then save the app configuration using the “Register” button. Send it to MOVIE LIBRARY’s representative and request them to configure SAML.

  4. MOVIE LIBRARY will send you the configuration information; once received, resume the configuration.
    (On the Admin Page Apps screen, search by app name → open the relevant app’s detail screen → change the SAML app settings)

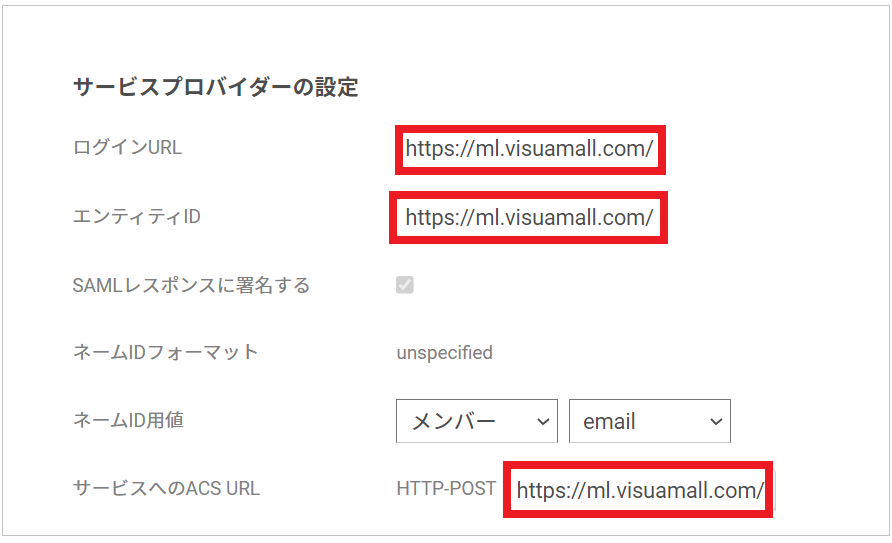

    Configure each item under Service Provider Settings as follows.
    Login URL The “Login URL” from MOVIE LIBRARY
    Entity ID The “Entity ID” provided by MOVIE LIBRARY
    ACS URL for the Service The “ACS URL” provided by MOVIE LIBRARY


  5. Save by clicking the “Register” button.



TrustLogin User Configuration

① When a User Adds the App from My Page

  1. On “My Page,” click the “Add App” button.
  2. On the “App Registration” screen, select “MOVIE LIBRARY (SAML)”, then click the “Next” button in the upper right of the screen.
  3. If you want to change the “Display Name,” enter it, then click the “Register” button.

② When an Administrator Adds Members

  1. In the “Admin Page > Apps” menu, search for and click the “MOVIE LIBRARY (SAML)” app.
  2. Click “Add Member,” select the users to add from the member list, then click the “Register” button to add them.
