Item |
Content |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure custom attributes, click here |
||
|
SP-Side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
Supports provisioning via API (accounts can be managed in TrustLogin) |
|
|
Supports SAML JIT provisioning (accounts can be managed in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
ー |
IdP-Initiated SSO |
|
|
Device Verification Status |
〇 |
PC - Browser |
|
〇 |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App Internal Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App Internal Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the top right of the screen.

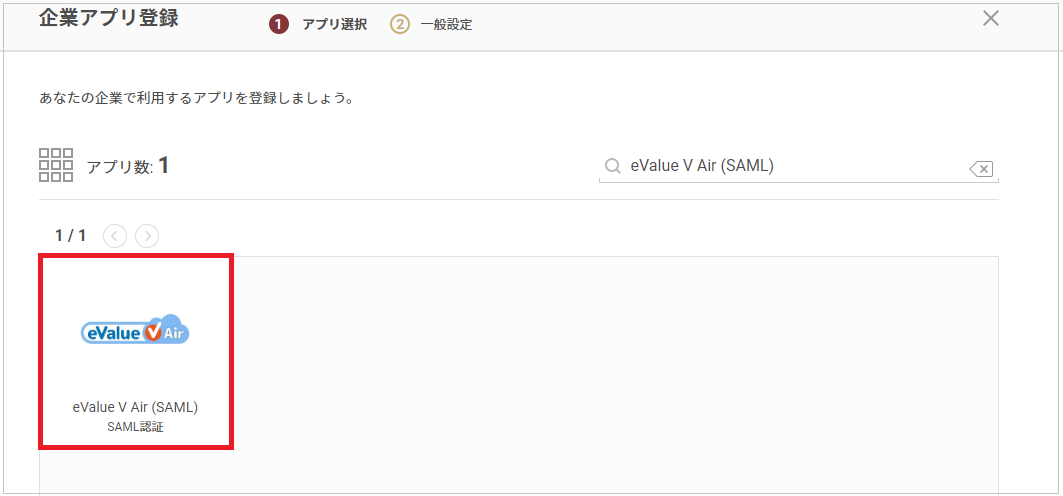

- Search on the "Corporate App Registration" screen and select "eValue V Air (SAML)".

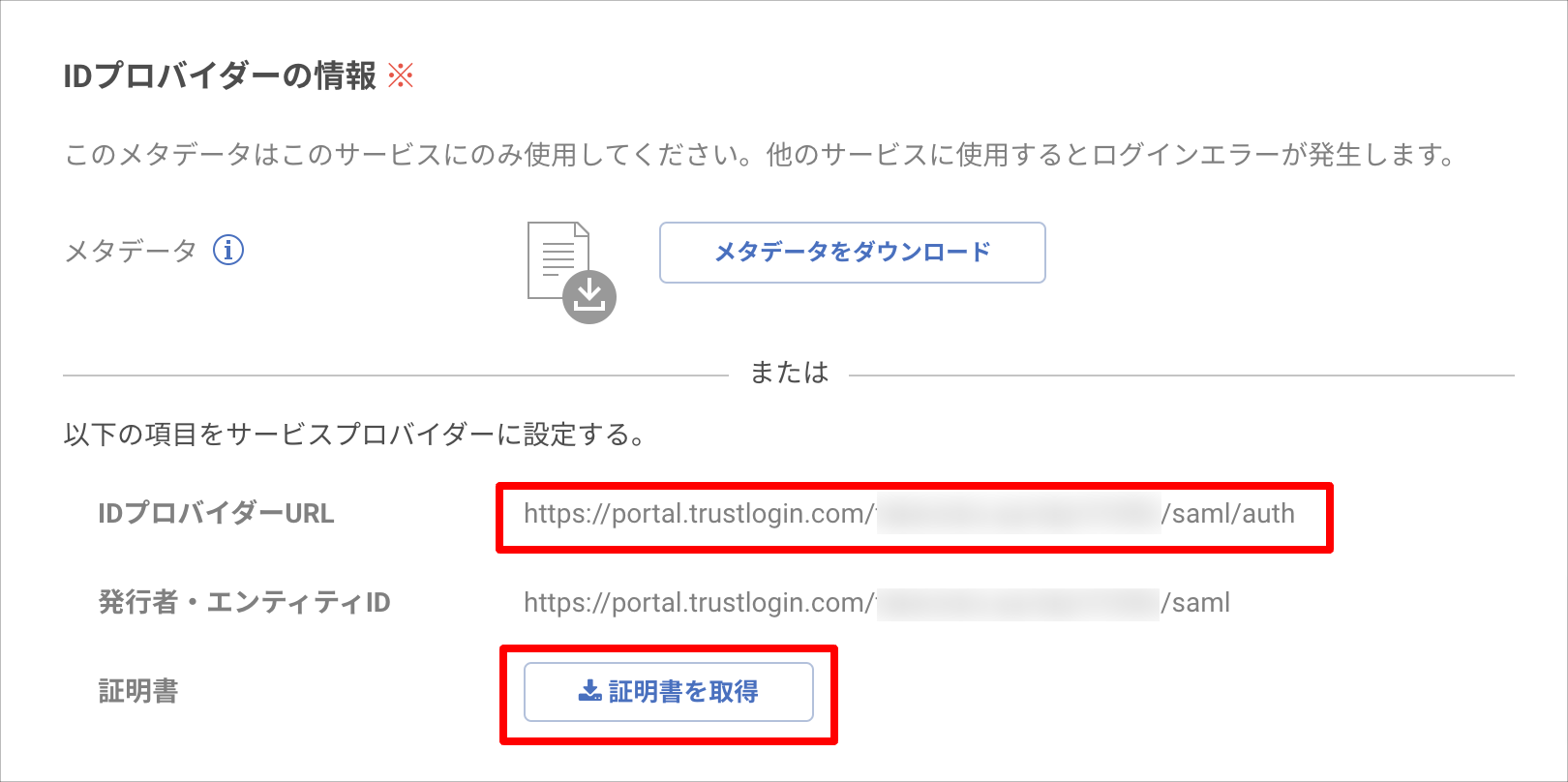

- Note down the "Identity Provider URL" in "Identity Provider Information", and download the certificate using the "Certificate" button.
Now, switch to configuring the eValue V Air side. Please open eValue V Air in a separate window.
eValue V Air Configuration

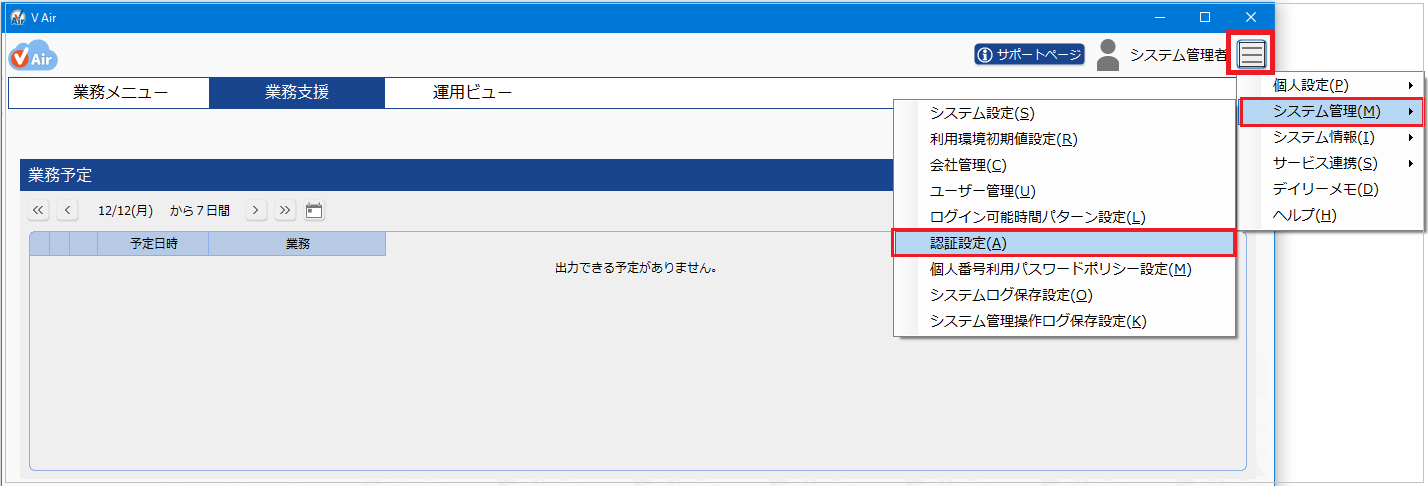

- Open the rich client and log in. Click the hamburger menu and open "System Administration > Authentication Settings".

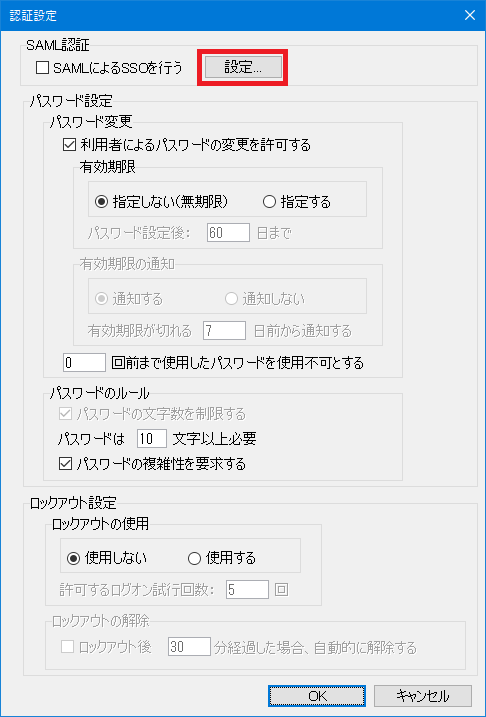

- Click "Settings".
- Check "Enable SSO via SAML", and note down the "SP Entity ID" and "SP Endpoint URL" in the SAML SSO settings.
-

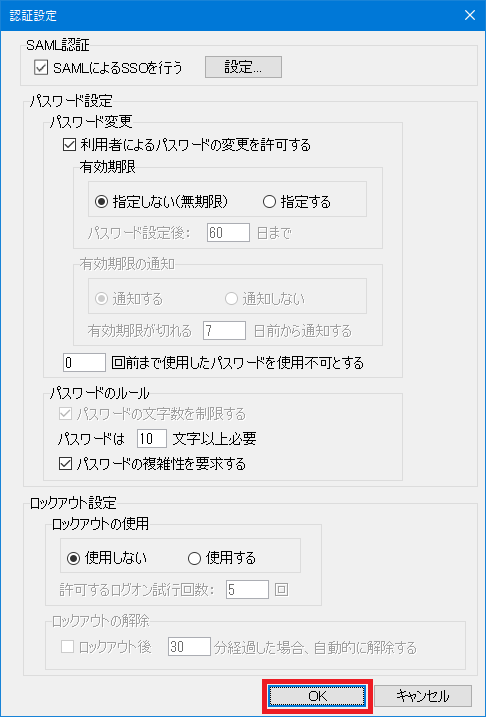

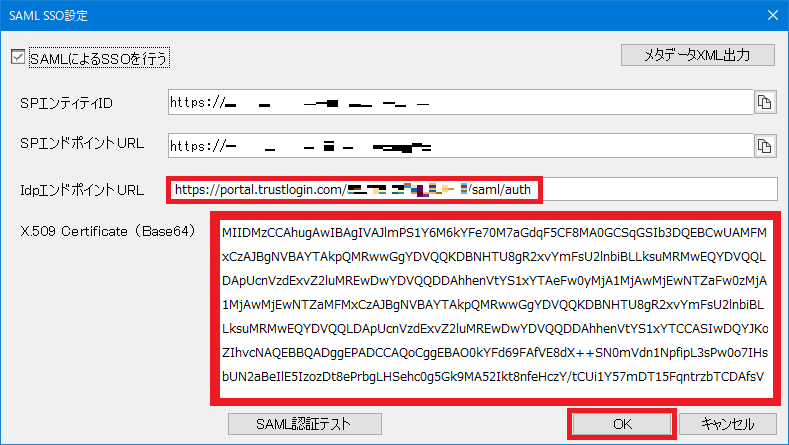

Configure each item as follows, and click "OK".
Idp Endpoint URL The "Identity Provider URL" noted from TrustLogin X509 Certificate Open the certificate downloaded from TrustLogin,
copy the string between "BEGIN CERTIFICATE" and "END CERTIFICATE" and paste it in.
- Click "OK".
Return to the TrustLogin Admin Page again.
TrustLogin Admin Page Configuration (Continued)

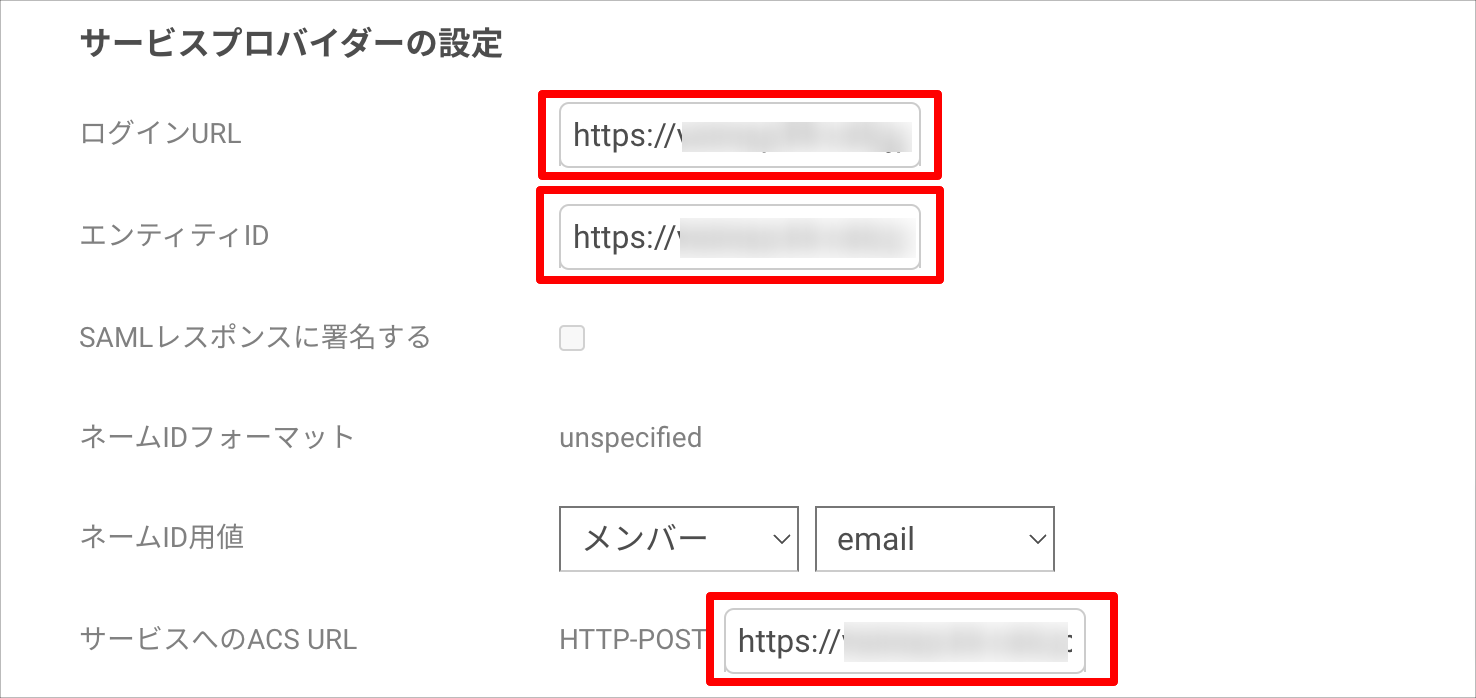

- Configure each item under "Service Provider Settings" as follows.
Login URL The "SP Entity ID" noted from eValue V Air
Entity ID The "SP Entity ID" noted from eValue V Air
ACS URL to the Service The "SP Endpoint URL" noted from eValue V Air
- Click the "Register" button in the top right to finish.
TrustLogin User Configuration
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "App Registration" screen, select "eValue V Air (SAML)" and click the "Next" button in the top right of the screen.
- If you want to change the "Display Name", enter it, and click the "Register" button.
② When an Administrator Adds Members
- In the "Admin Page > Apps" menu, search for and click the "eValue V Air (SAML)" app.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
