TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

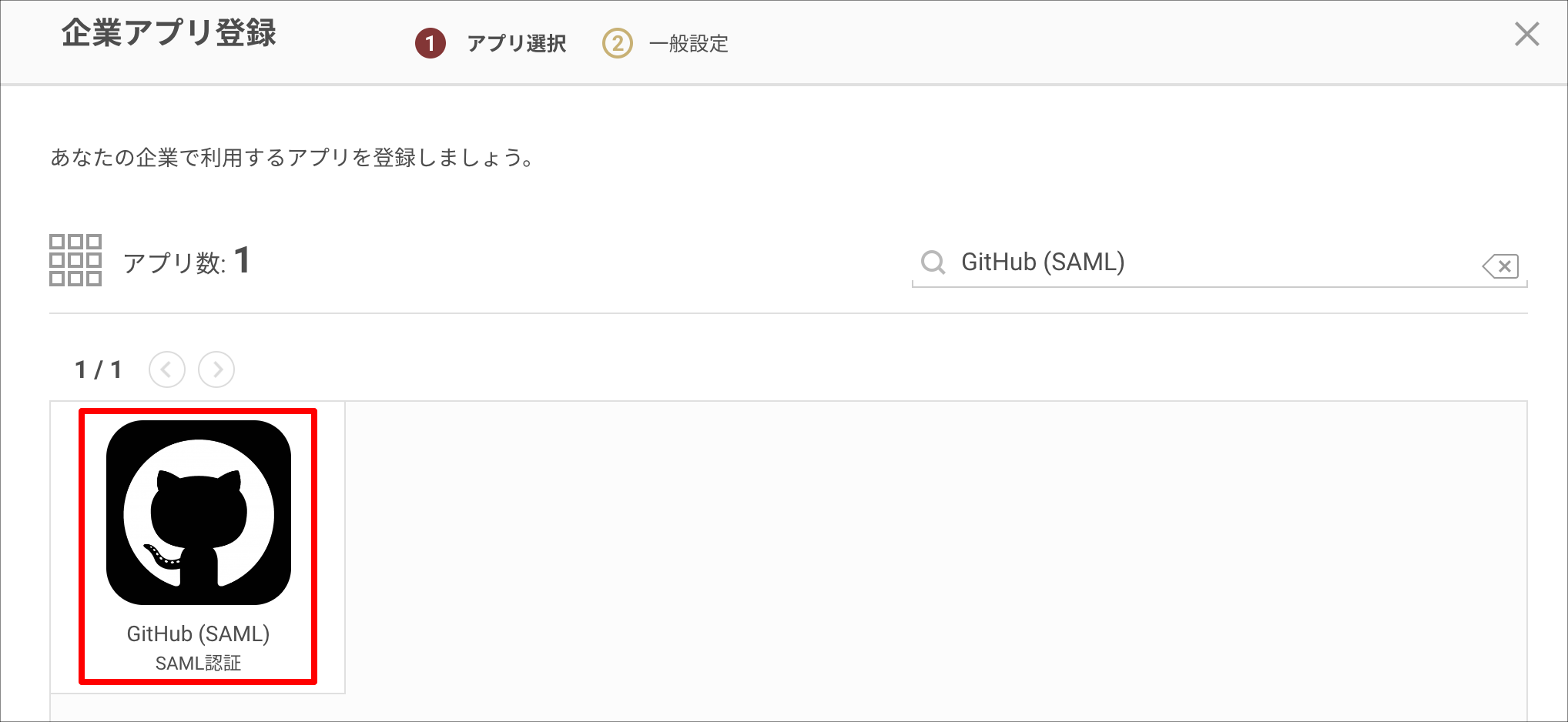

2. Search on the "Register Company App" screen and select "GitHub (SAML)".

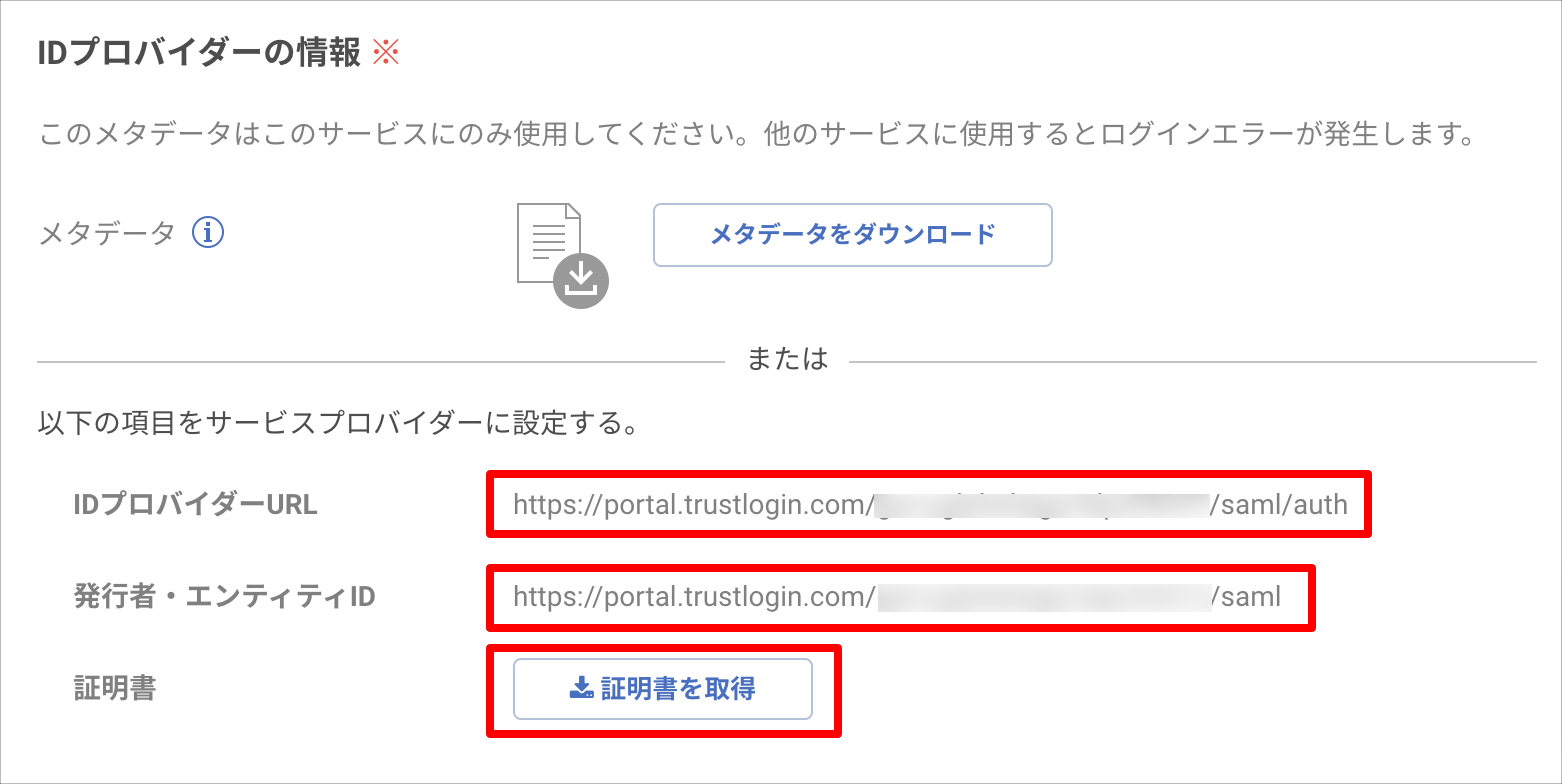

3. Make a note of the "IdP URL" and "Issuer / Entity ID" values under "Identity Provider Information", and download the "Certificate".

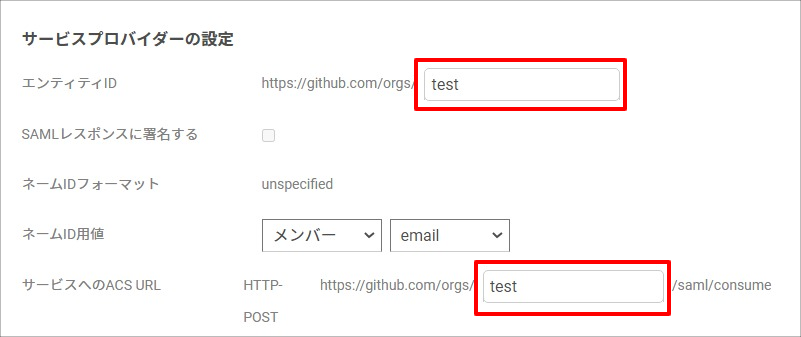

4. Enter your GitHub Organization account name in the two blank fields under "Service Provider Settings".
   Example: For https://github.com/test, enter "test"



5. Save by clicking the "Register" button.

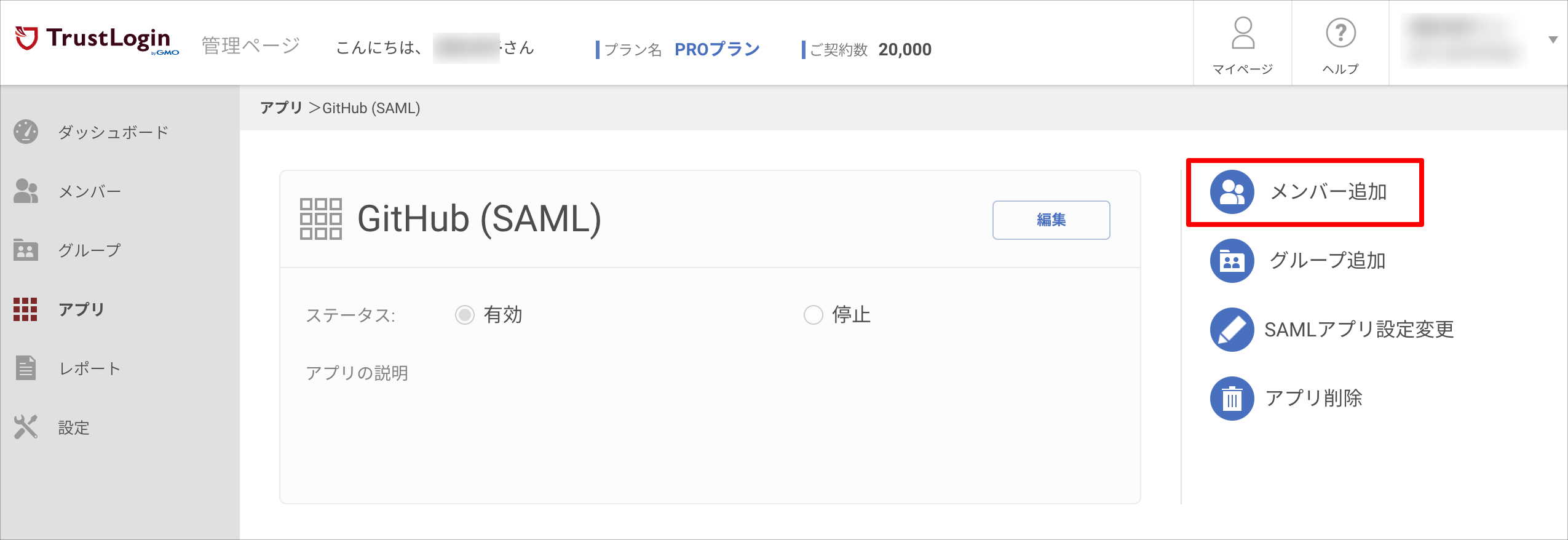

6. To perform a connection test in the GitHub settings below, add the administrator performing this configuration as a member of the SAML app you created. Search for the "GitHub (SAML)" app in the "Admin Page > App" menu, and add the administrator account using "Add Member".




GitHub Settings

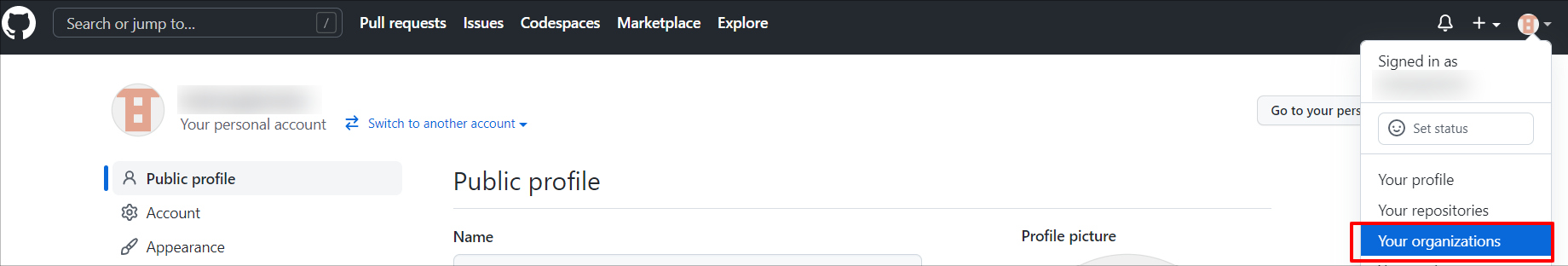

1. After logging in to GitHub with an Owner account, click the icon in the upper right > "Your Organization".

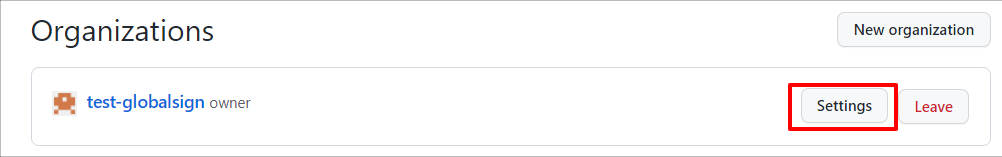

2. Click "Settings" to the right of the target Organization name.

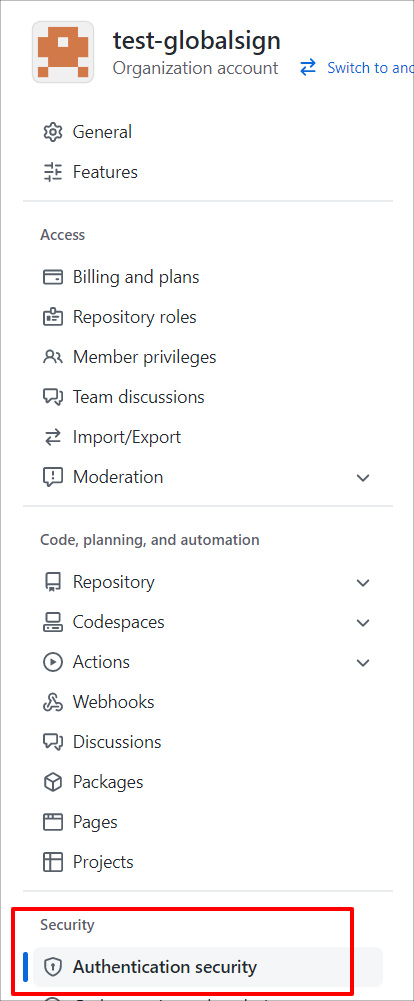

3. Click "Security" > "Authentication security" in the left menu.

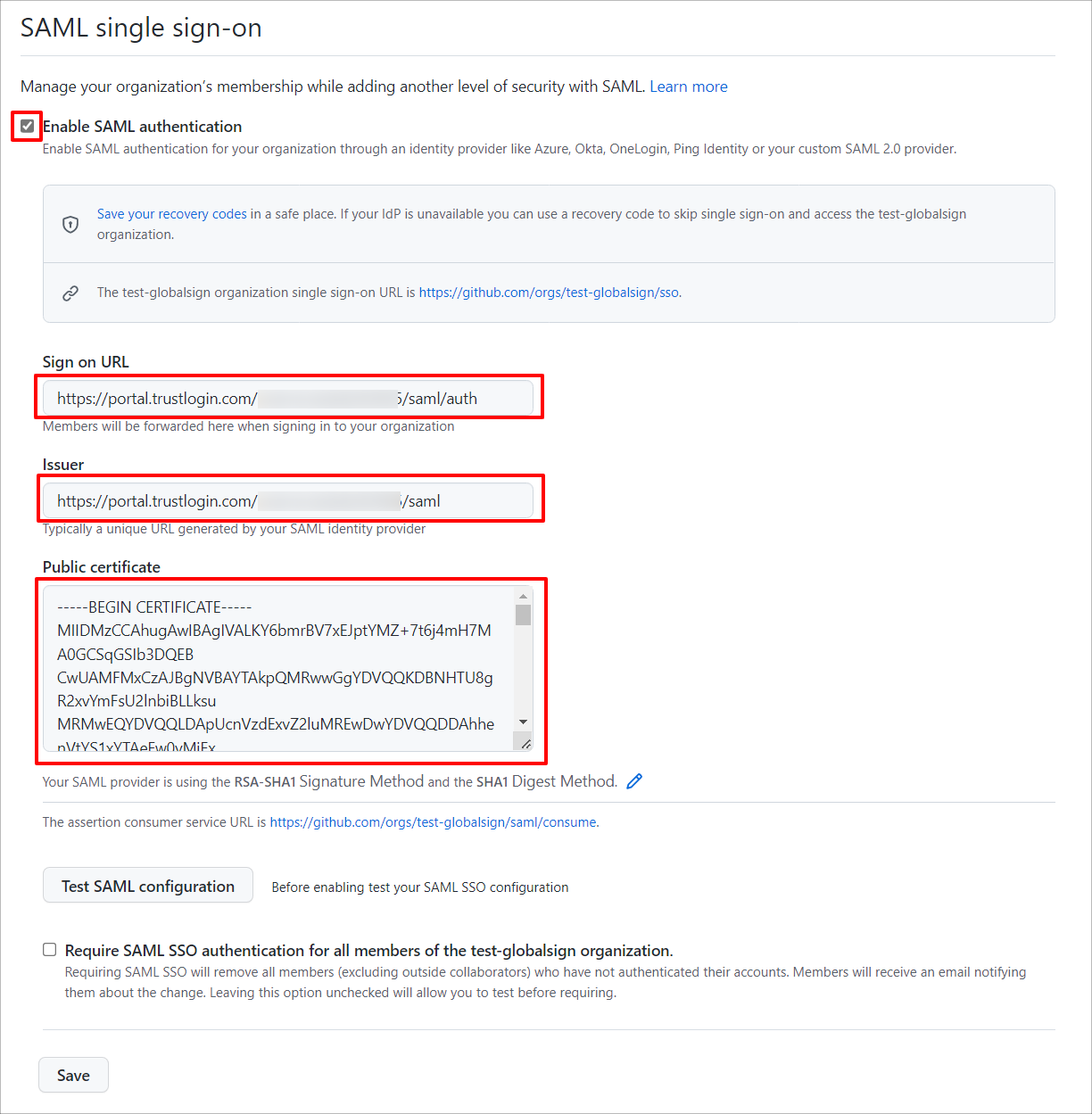

4. Configure each item of "SAML single sign-on" as follows.


   Enable SAML authentication	Check the checkbox
   Sign on URL	The "IdP URL" you noted from TrustLogin
   Issuer	The "Issuer / Entity ID" you noted from TrustLogin
   Public Certificate	The contents of the certificate downloaded from TrustLogin





5. Click " Test SAML configuration" and confirm that SAML authentication succeeds.


6. For the "Require SAML SSO authentication for all members of the test-globalsign organization" checkbox, please review the following and check it as needed based on your operational requirements.
   Enforcing SAML single sign-on for your organization - GitHub Enterprise Cloud Docs


7. Click "SAVE".



TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "GitHub (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Save" button.

②When an administrator adds members

1. Search for and click the "GitHub (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.



How to Log In to GitHub

Single sign-on via GitHub's SAML authentication authenticates a specific organization in GitHub. It cannot authenticate GitHub itself. Members must separately sign in to their individual account in GitHub.

① How to log in when you are already logged in to your GitHub.com individual account

1. Click "GitHub (SAML)" from TrustLogin's "My Page" or the browser extension.
2. Login to the GitHub Organization is complete.

② How to log in when you are not logged in to your GitHub.com individual account

1. Click "GitHub (SAML)" from TrustLogin's "My Page" or the browser extension.

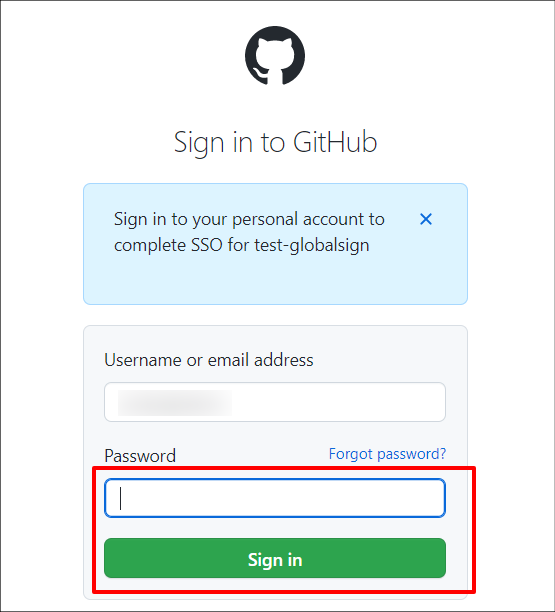

2. You will be taken to the GitHub login screen. Enter your individual account password and click the sign-in button.

3. Login to the GitHub Organization is complete.
