1. Admin Page Settings in TrustLogin

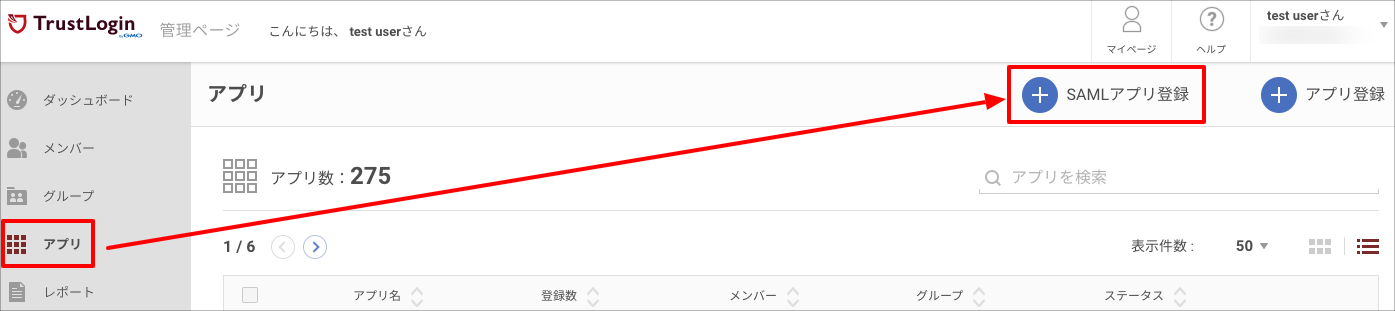

   1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register SAML App" button in the upper right of the screen.

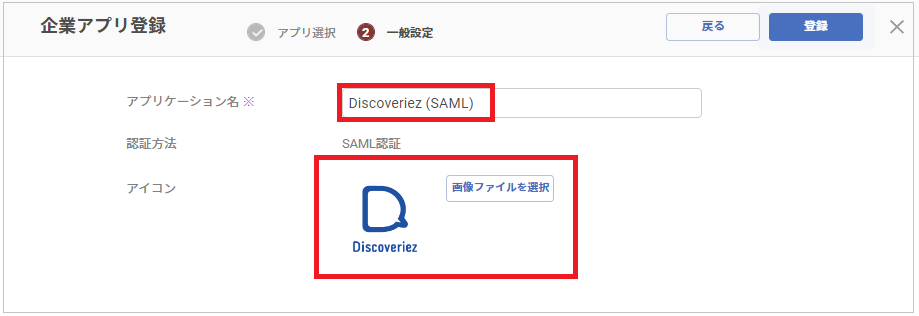

   2. Register the "Application Name" and "Icon" (optional).

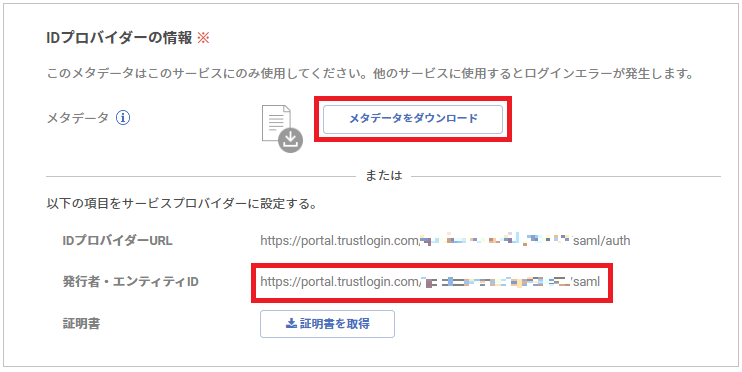

   3. Download the metadata from "Identity Provider Information", and make a note of the "Issuer/Entity ID."


   Now, switch to the configuration on the Discoveriez side. Please open Discoveriez in a separate window.

Discoveriez Configuration

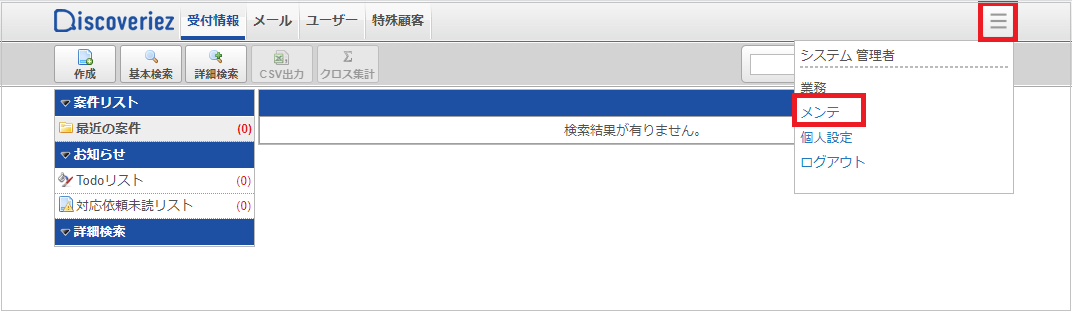

1. Log in with an administrator account, and select "Maintenance" from the hamburger menu.

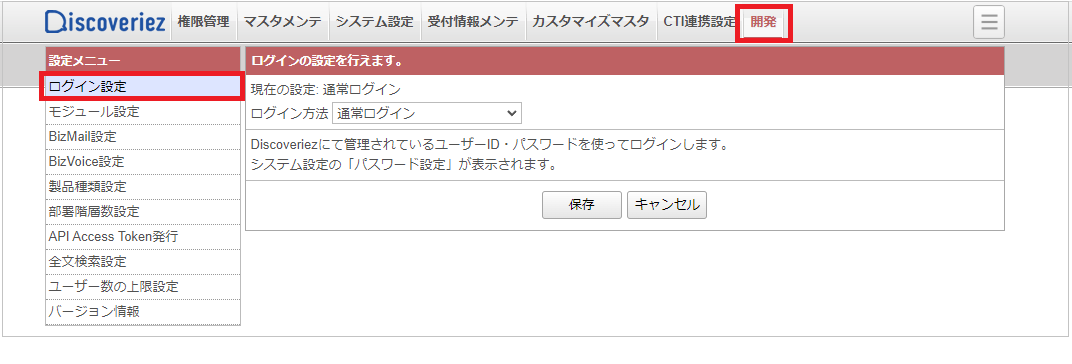

2. Open Development > Login Settings.

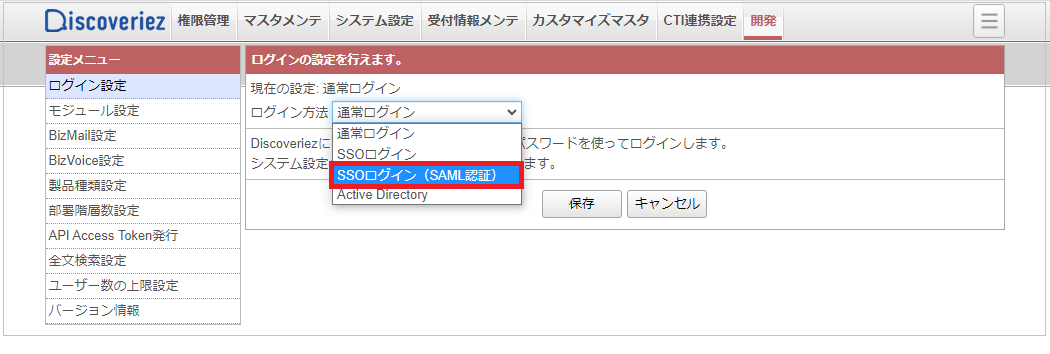

3. From the Login Method dropdown, select "SSO Login (SAML Authentication)".

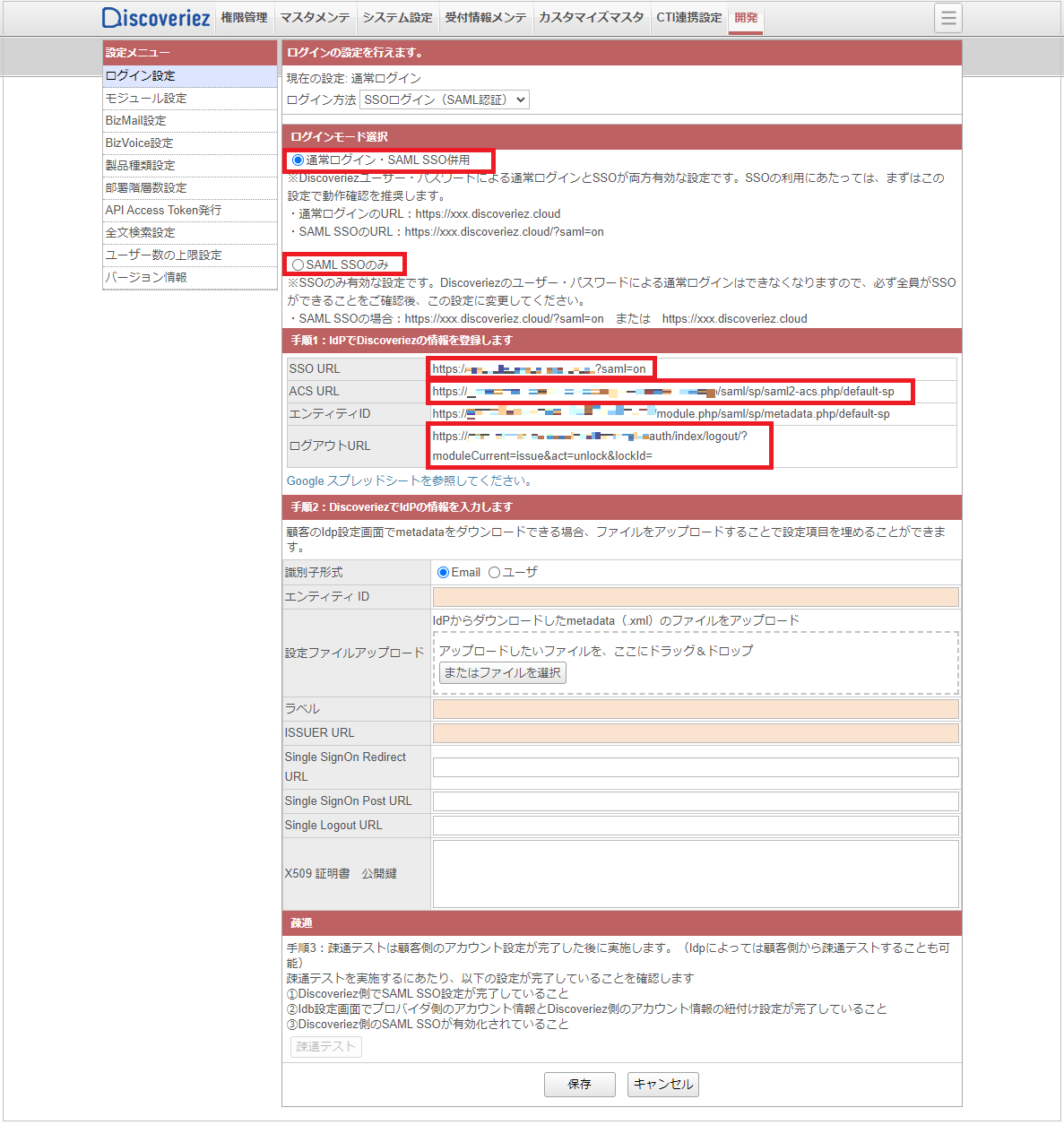

4. For "Login Mode Selection", please choose according to your company's policy.
   Note: If you select "SAML SSO Only", normal login using a username and password will no longer be possible. When configuring SAML, we recommend selecting "Use Normal Login and SAML SSO Together".
5. From "Step 1: Register Discoveriez information with the IdP", make a note of the "SSO URL", "ACS URL", and "Logout URL". (You will set these in TrustLogin later.)

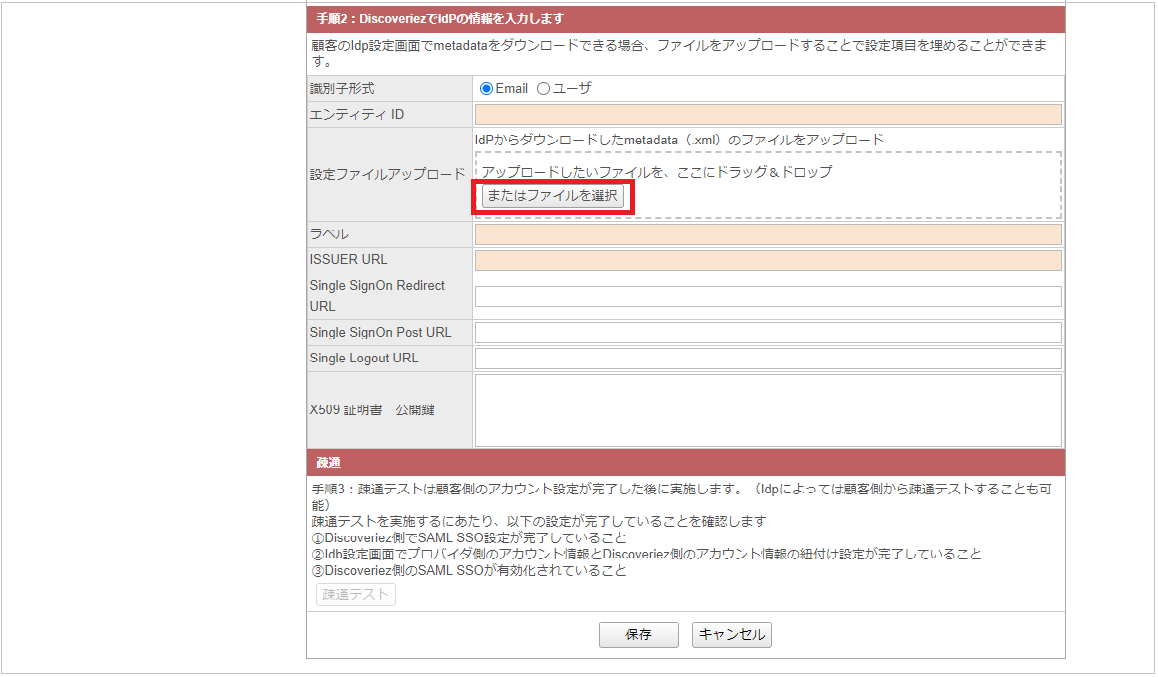

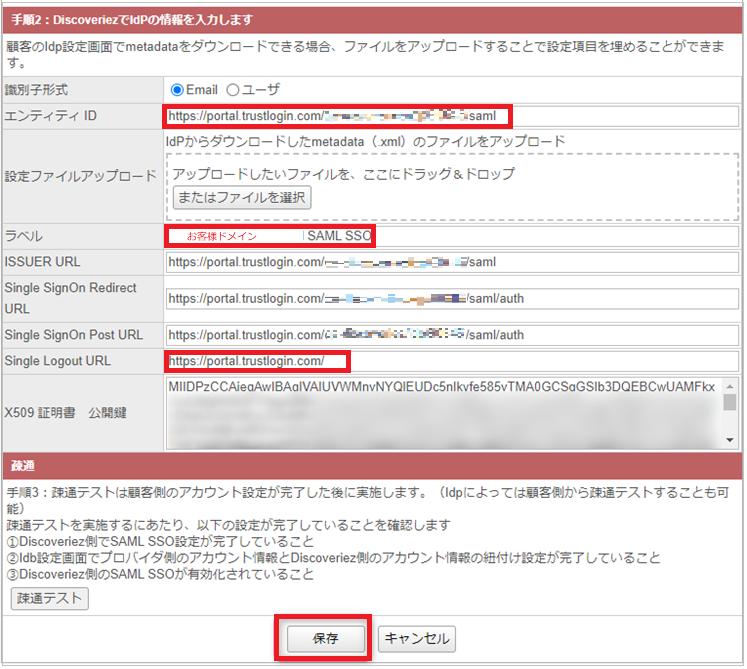

6. In "Step 2: Enter IdP information in Discoveriez", under the "Upload Authentication File" item, upload the metadata you noted from TrustLogin.

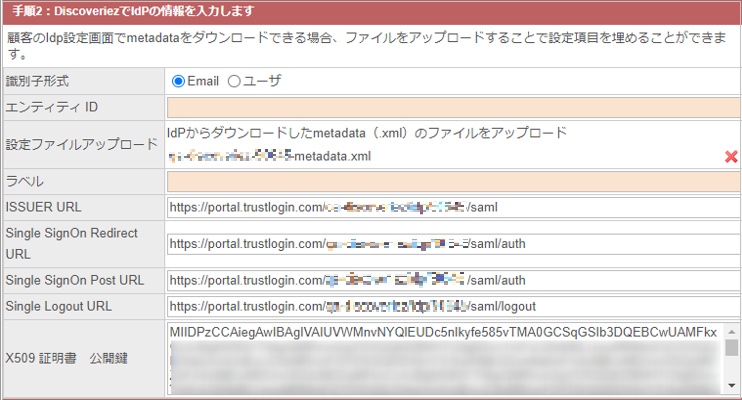

7. After the upload is complete, confirm that all fields except "Entity ID" and "Label" are populated.


8. Enter the following into the "Entity ID", "Label", and "Single Logout URL" fields, and click the "Save" button.


   "Entity ID"	The "Issuer/Entity ID" you noted from TrustLogin
   "Label"	Enter the Discoveriez login URL changed as follows: Example: Login URL　https://●●●●.xxxxxxxx.cloud →●●●●.xxxxxxxx.cloud SAML SSO Note: Be sure to enter a half-width space between "cloud" and "SAML SSO".
   "Single Logout URL"	https://portal.trustlogin.com/

Admin Page Settings in TrustLogin (Continued)

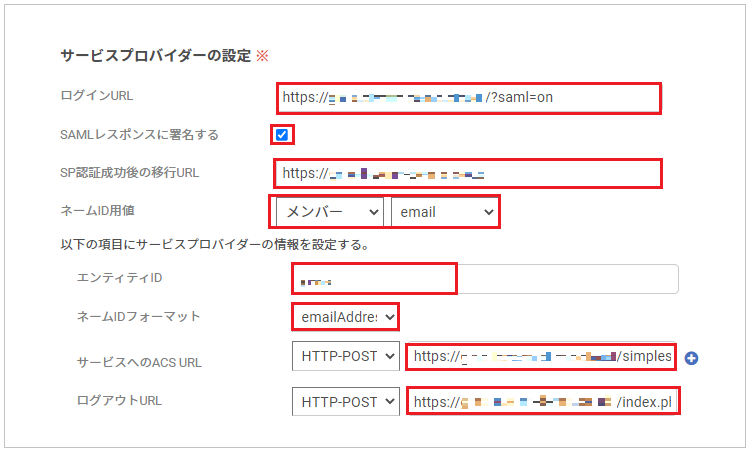

1. Set each item in "Service Provider Settings" with the Discoveriez information as follows.

   Login URL	The "SSO URL" you noted from Discoveriez
   Sign SAML Response	Check this box
   Redirect URL After SP Authentication	Enter the Discoveriez login URL Example: Login URL　https://●●●●.xxxxxxxx.cloud
   Value for Name ID	Select "Member" - "email" (leave as default)
   Entity ID	From the Discoveriez login URL (https://●●●●.xxxxxxxx.cloud) extract and enter the ●●●● portion
   Name ID Format	Select "emailAddress"
   ACS URL to Service	The "ACS URL" you noted from Discoveriez
   Logout URL	The "Logout URL" you noted from Discoveriez

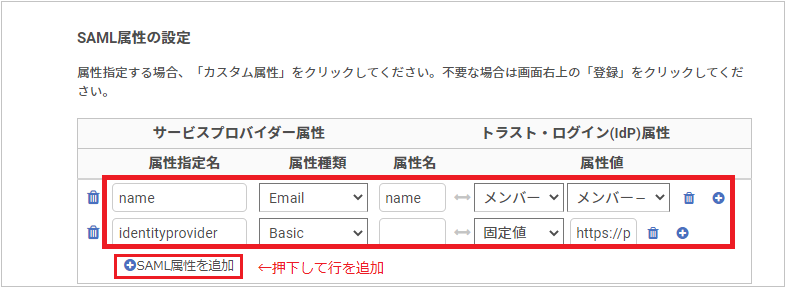

2. Using the "Add SAML Attribute" button in "SAML Attribute Settings", add rows (attributes) and configure as follows.

   Service Provider Attribute			TrustLogin (IdP) Attribute
   Specified Attribute Name	Attribute Type	Attribute Name		Attribute Value
   name	Email	name	Member	Member - Email Address
   identityprovider	Basic		Fixed Value	Enter the "Issuer/Entity ID" of TrustLogin





3. Click the "Register" button to save the settings.

User Settings in TrustLogin

① When a User Adds the App via My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select the custom SAML app you created, and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter a new one, and click the "Register" button.

② When an Administrator Adds a Member

1. In the "Admin Page > Apps" menu, search for the custom SAML app you created and click it.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
