TrustLogin Admin Page Configuration

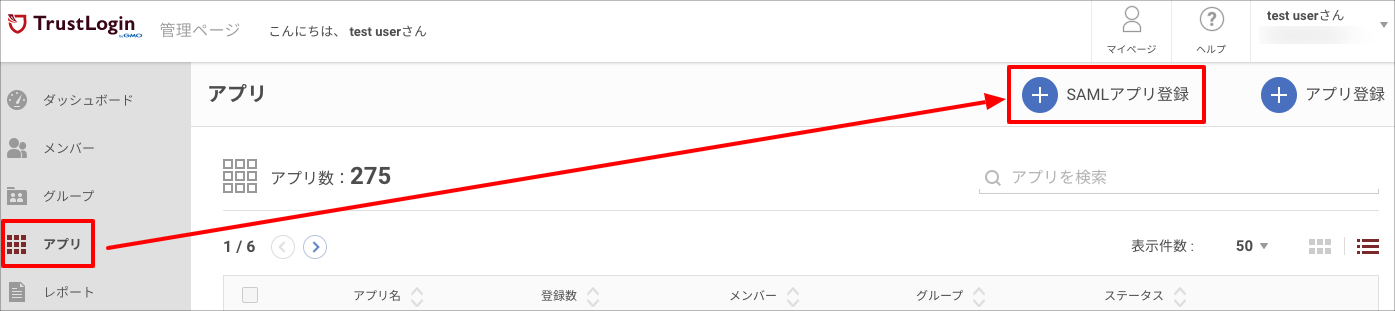

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register SAML App" button in the upper right of the screen.

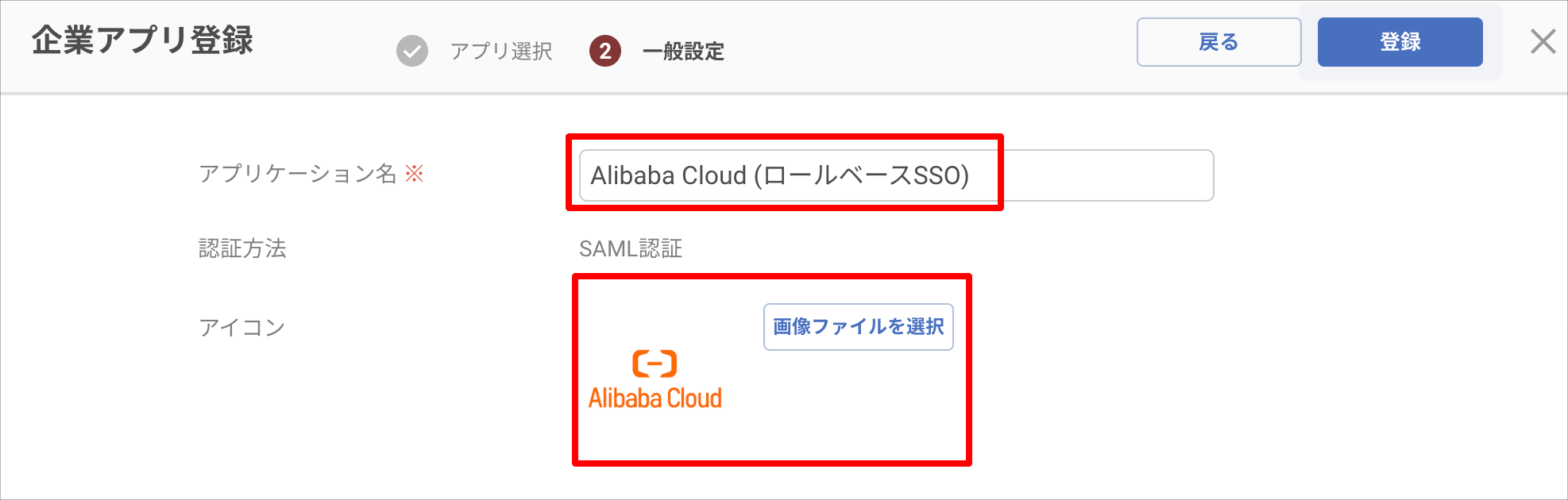

2. Register the "Application Name" and (optionally) an "Icon".

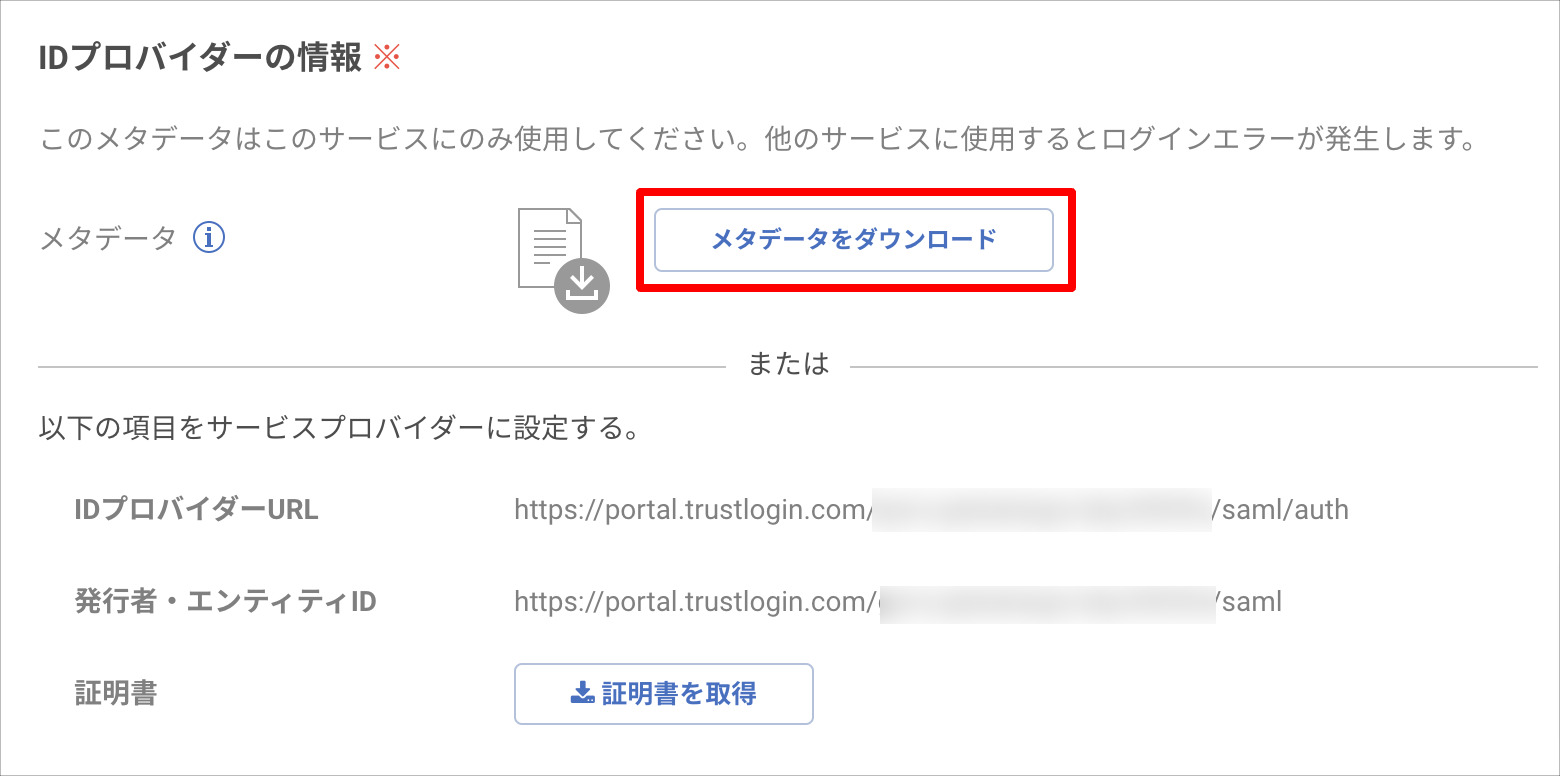

3. Download the metadata under "Identity Provider Information" in advance.


Now switch to configuring Alibaba Cloud.
In a separate window, log in to the Alibaba Cloud RAM console with an administrator account.

Alibaba Cloud Configuration

1. [Create IdP]

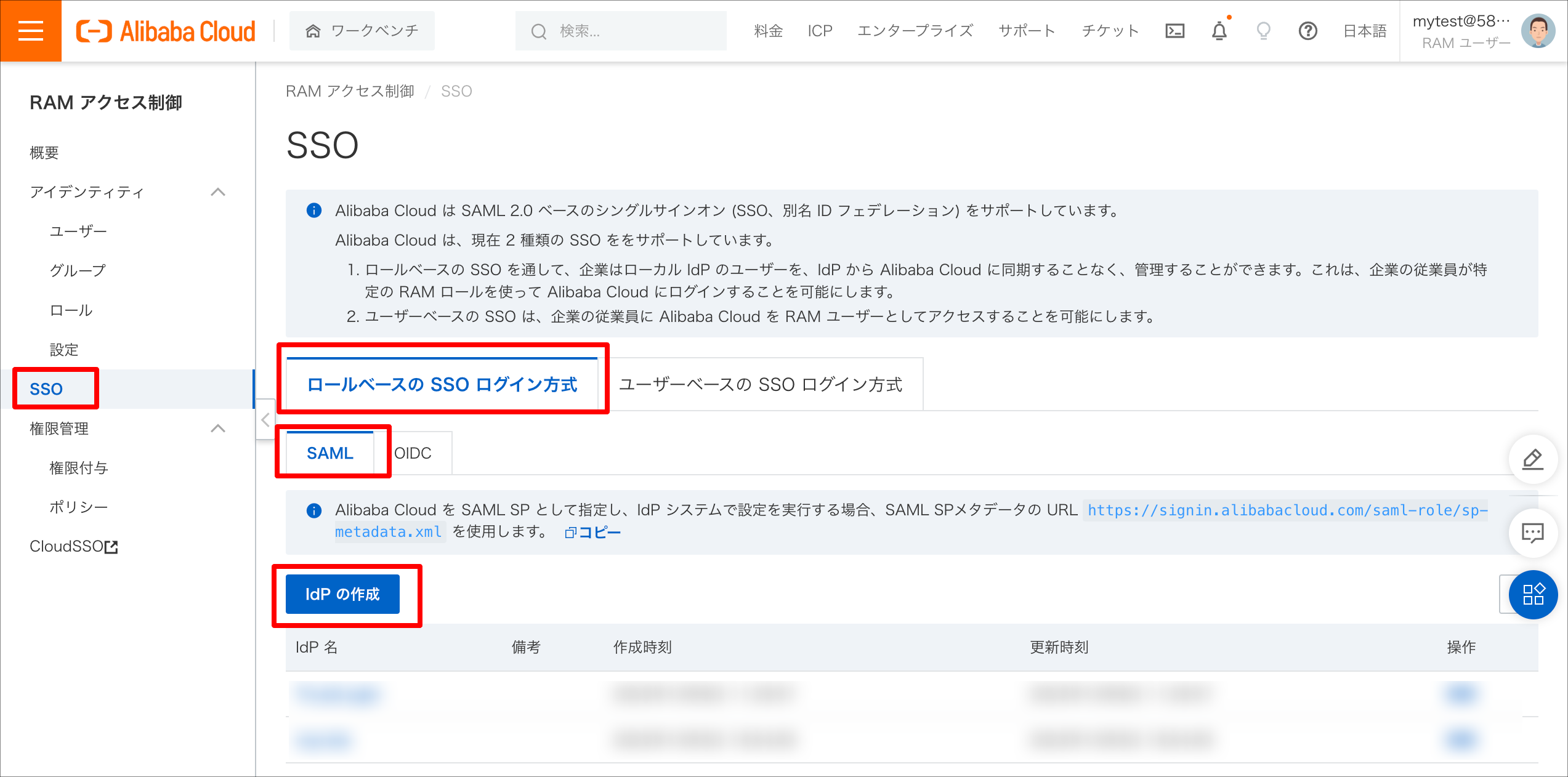

   Open "SSO > Role-based SSO Login Method" and click "Create IdP" on the SAML tab.

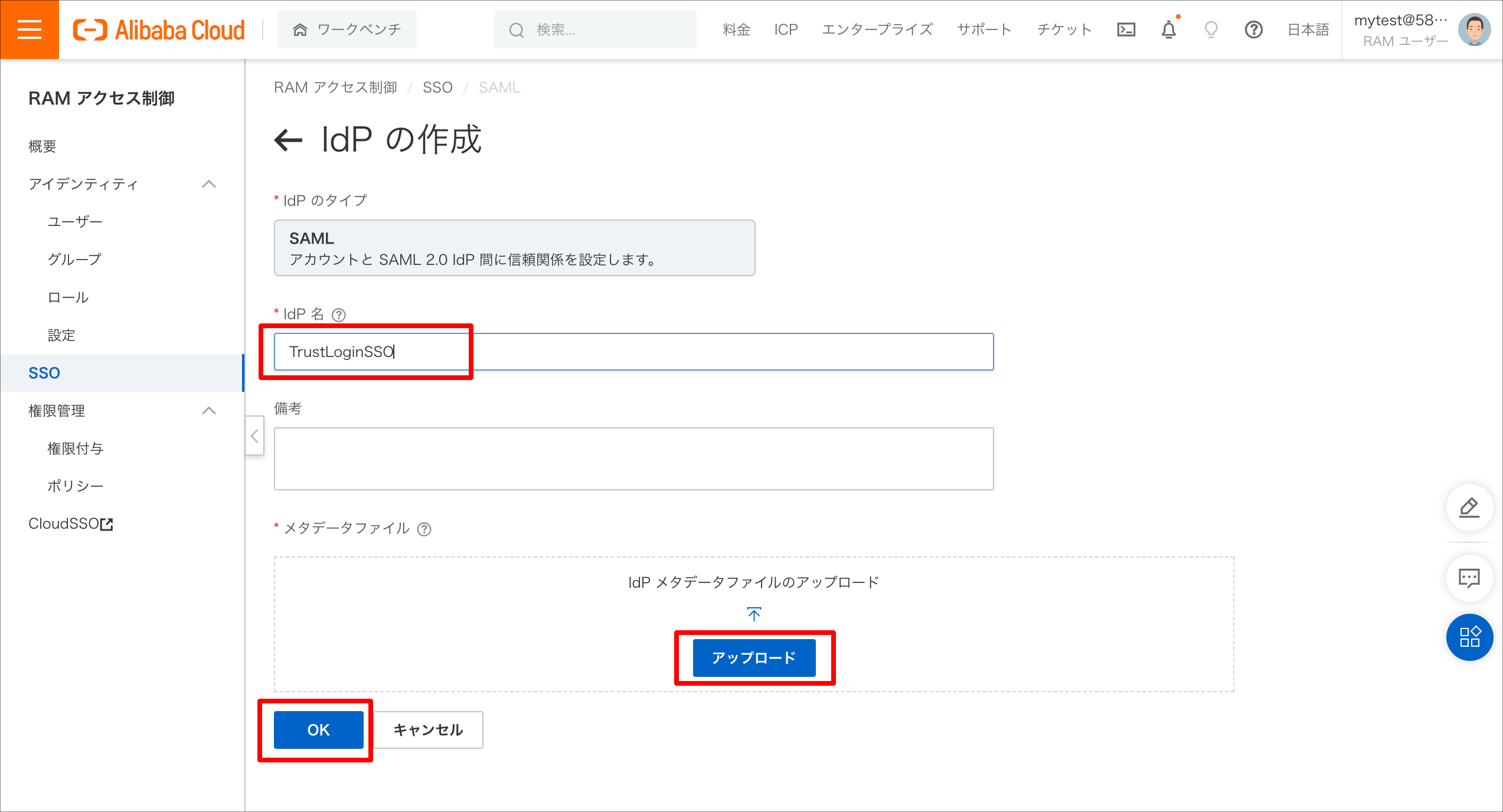

2. Enter any name for "IdP Name", upload the metadata downloaded from TrustLogin via "Upload" under the metadata file, and click "OK" to save.

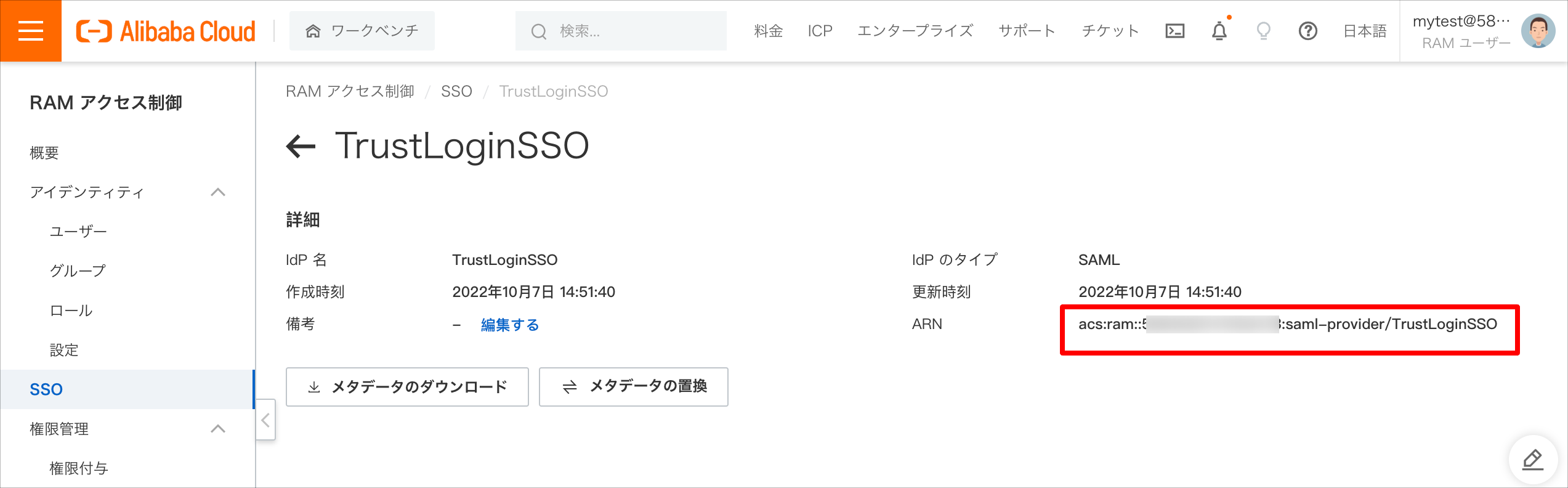

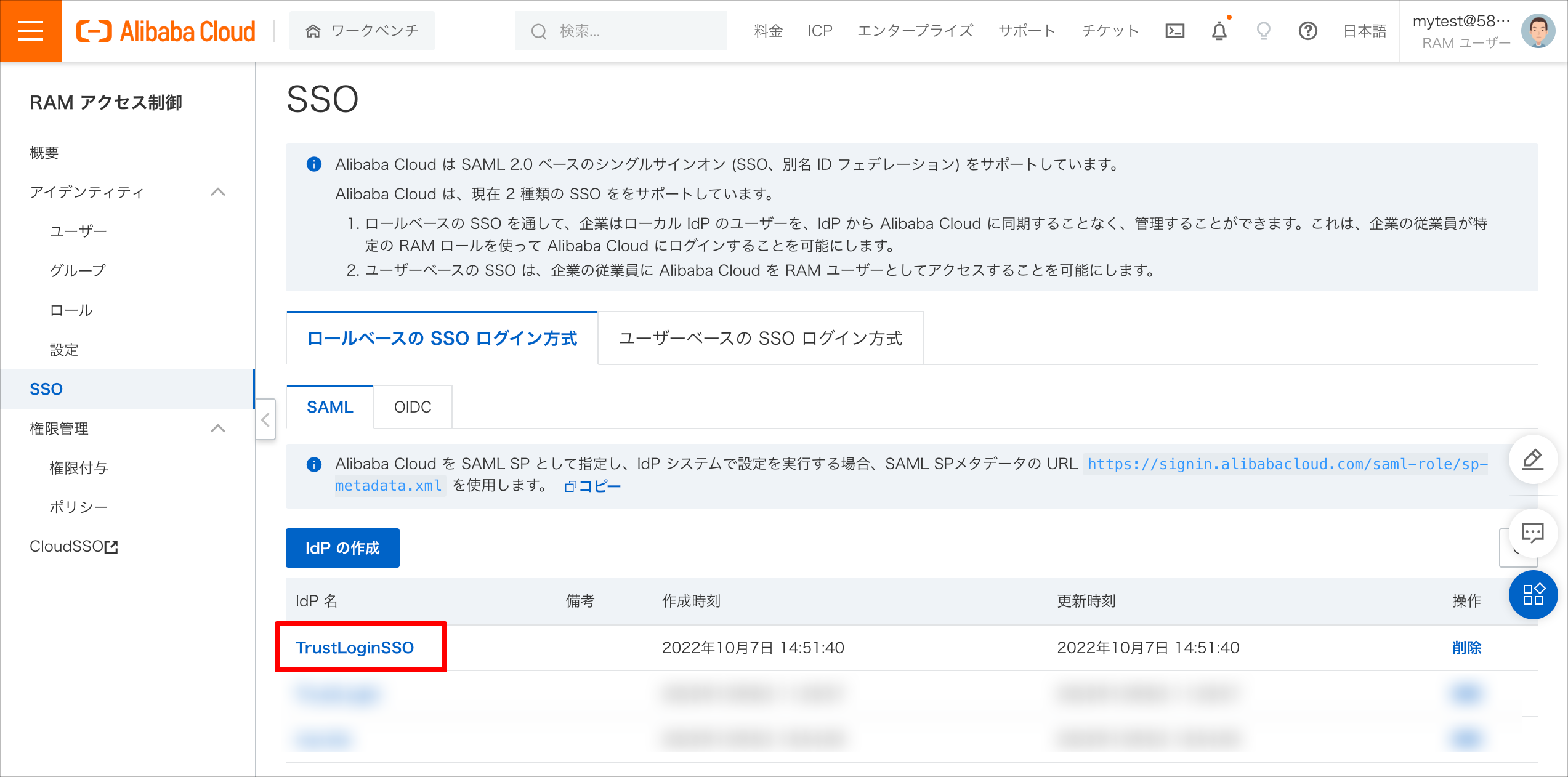

3. Click the name of the IdP you created and note down the "ARN" value.





4. [RAM Role Configuration]

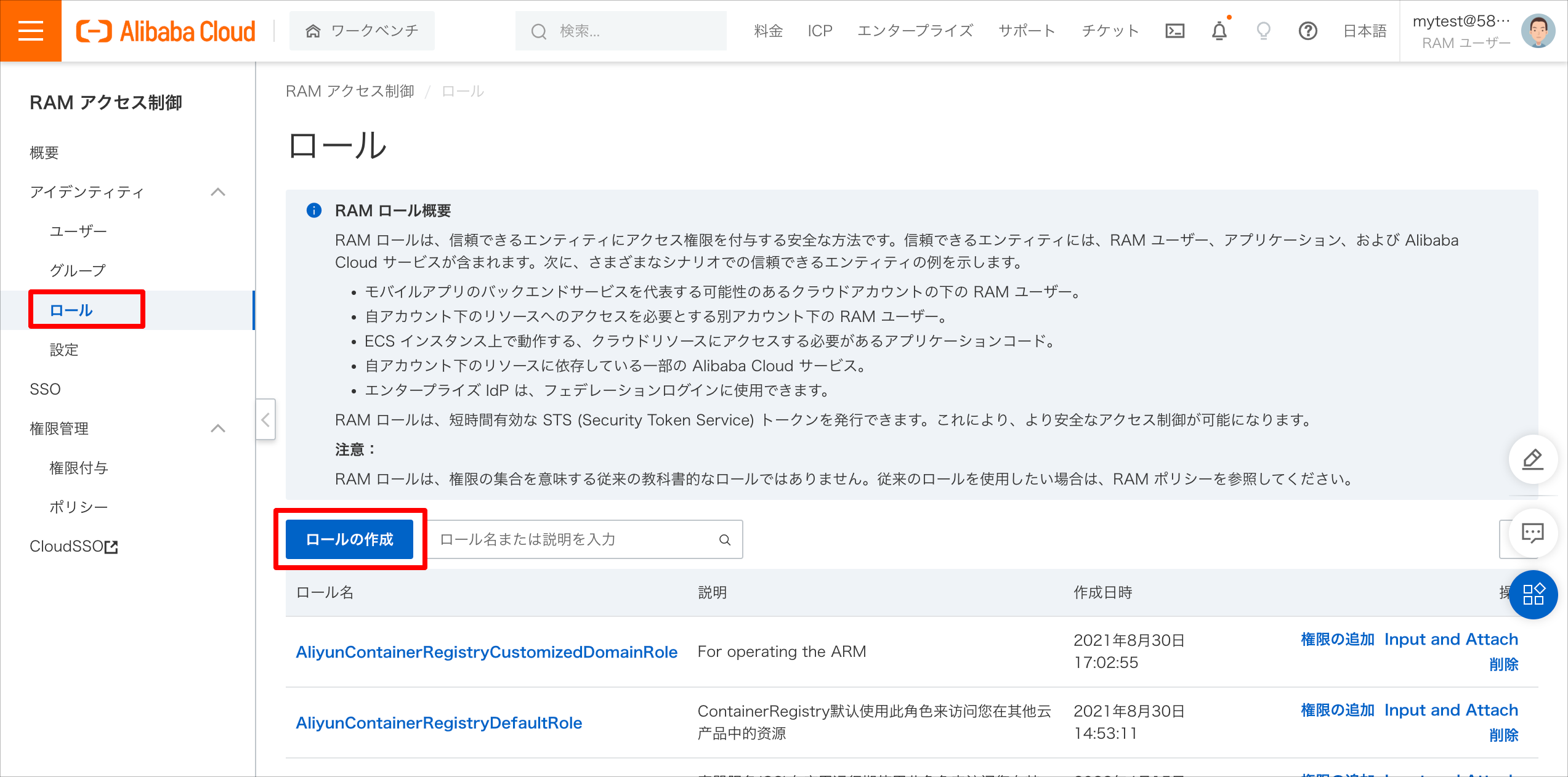

   Open "Identity > Roles" and click "Create Role".

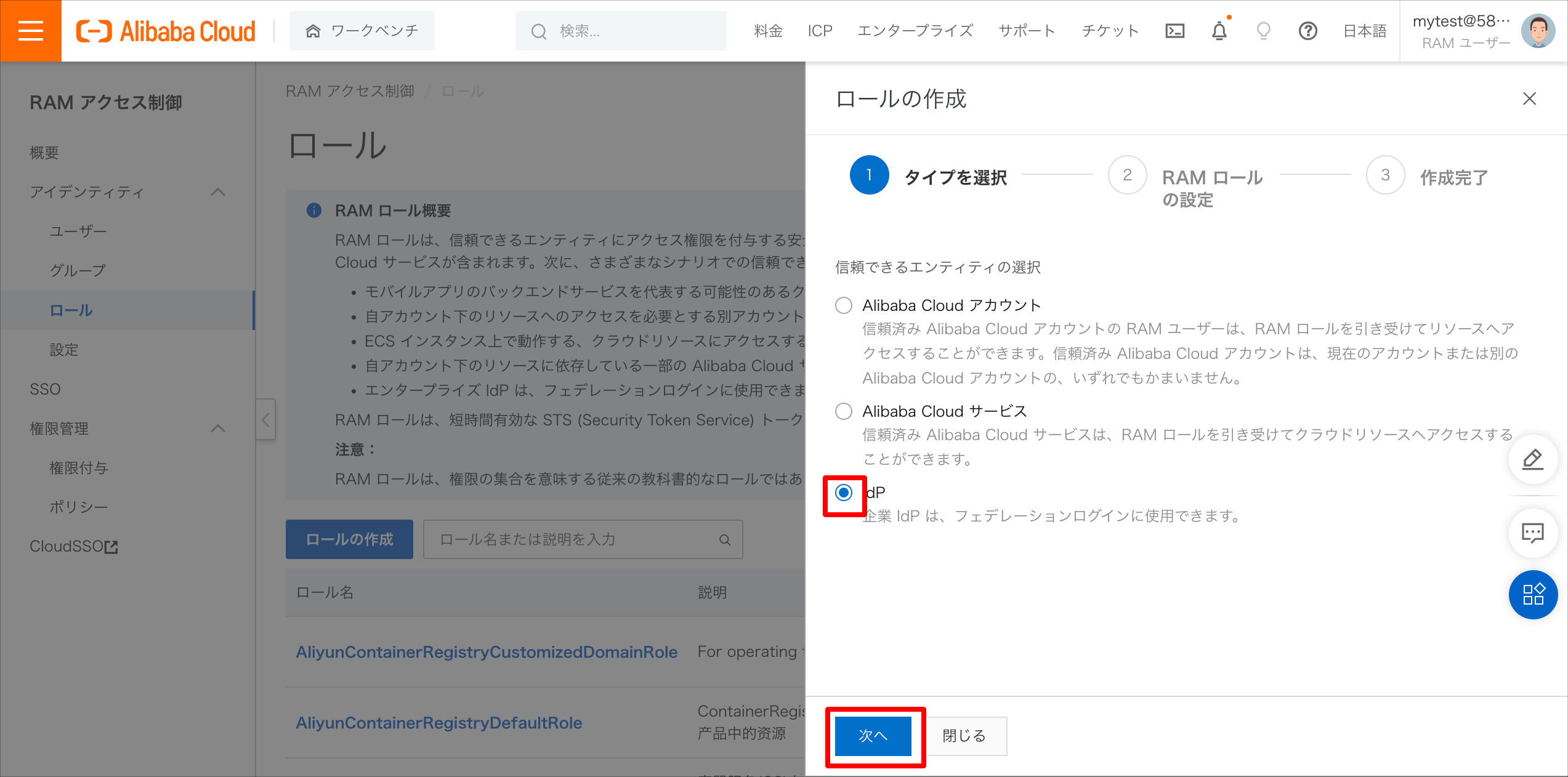

5. Select "IdP" and click "Next" to proceed.

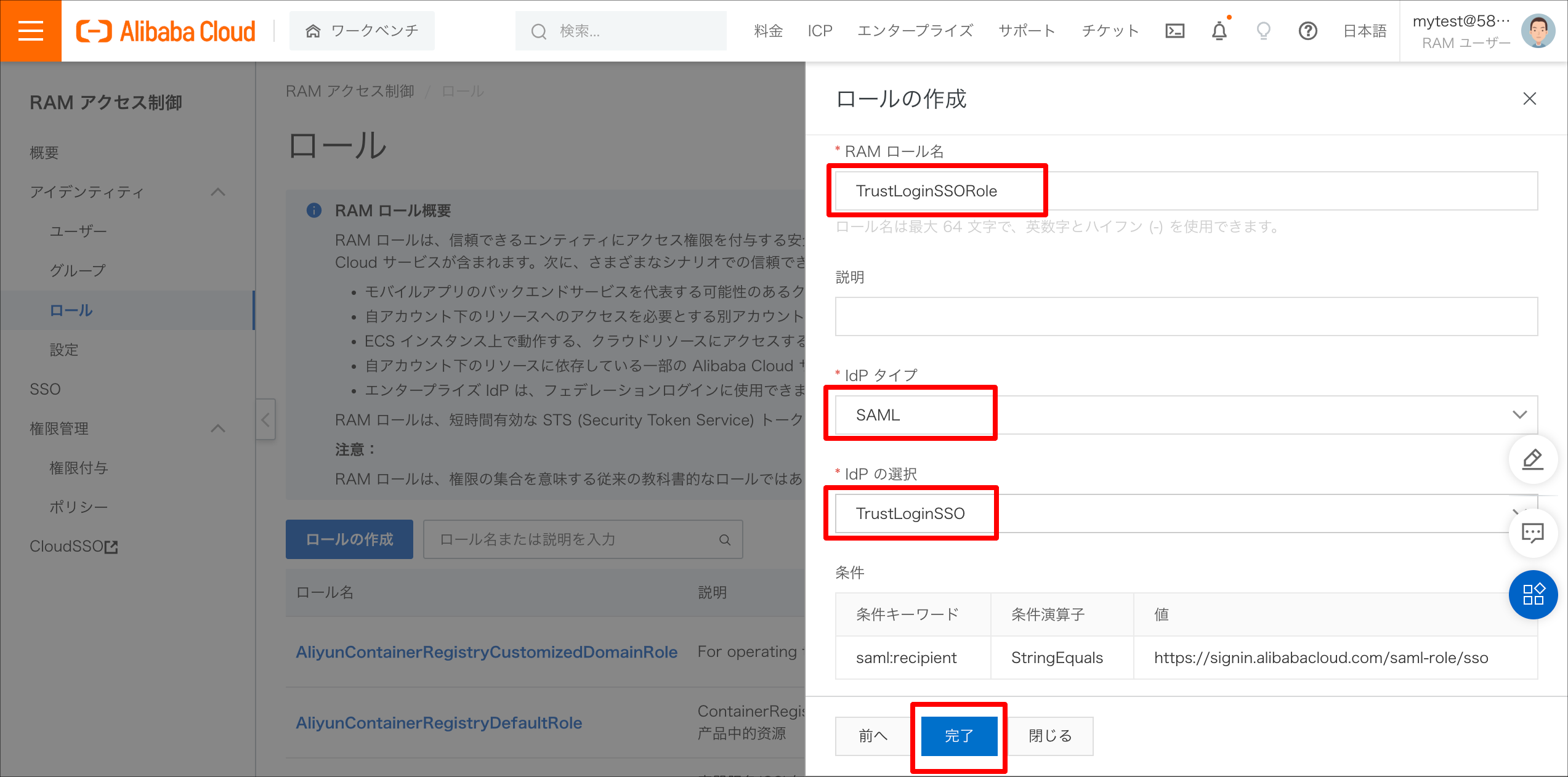

6. Enter any name for "RAM Role Name", select "SAML" for "IdP Type", select the IdP you created under "Select IdP", and click "Complete" to save.

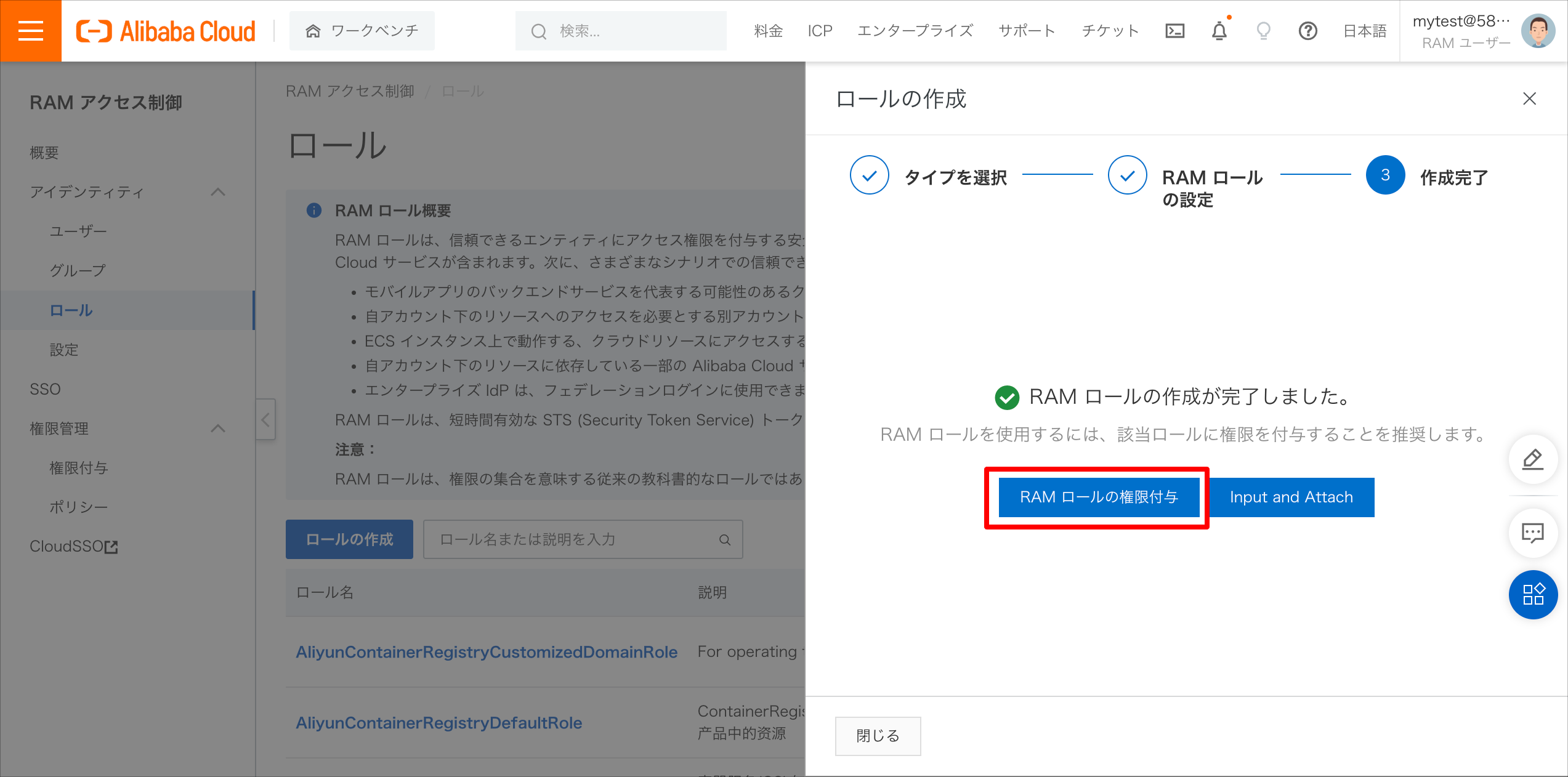

7. Click "Grant Permissions to RAM Role".

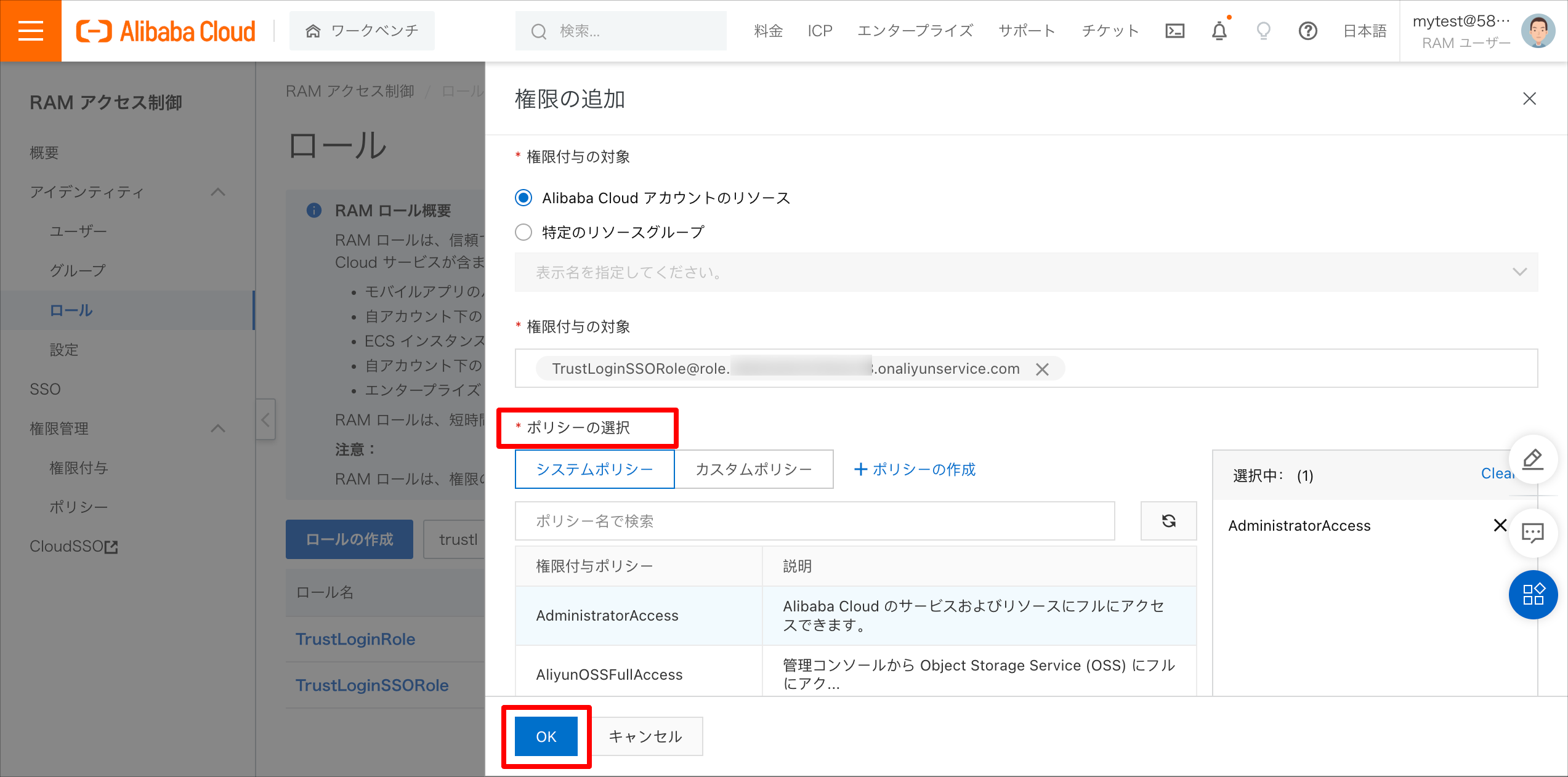

8. Select the policy to grant permissions to the RAM role and click "OK".
   For details, please refer to "Grant permissions to a RAM role".

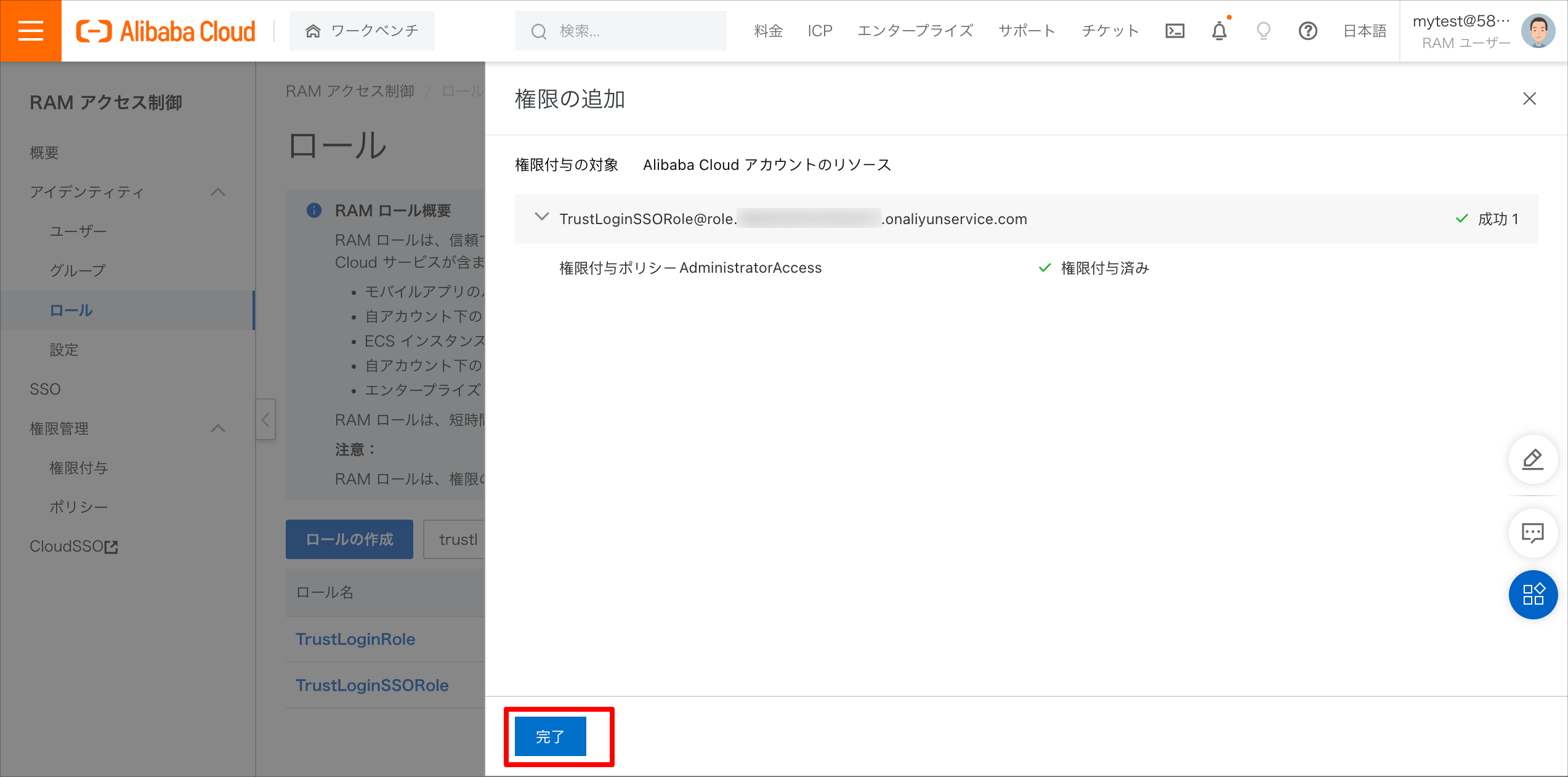

9. Once permissions have been granted successfully, click the "Complete" button.

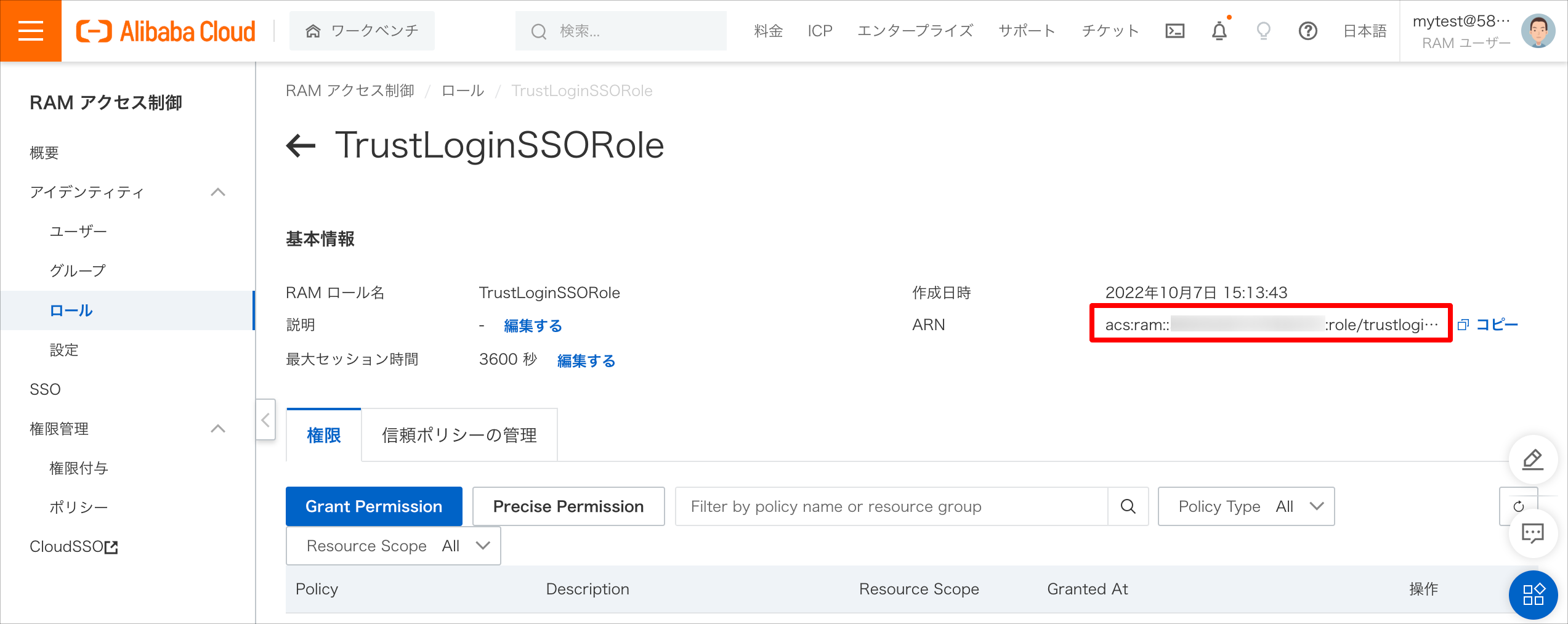

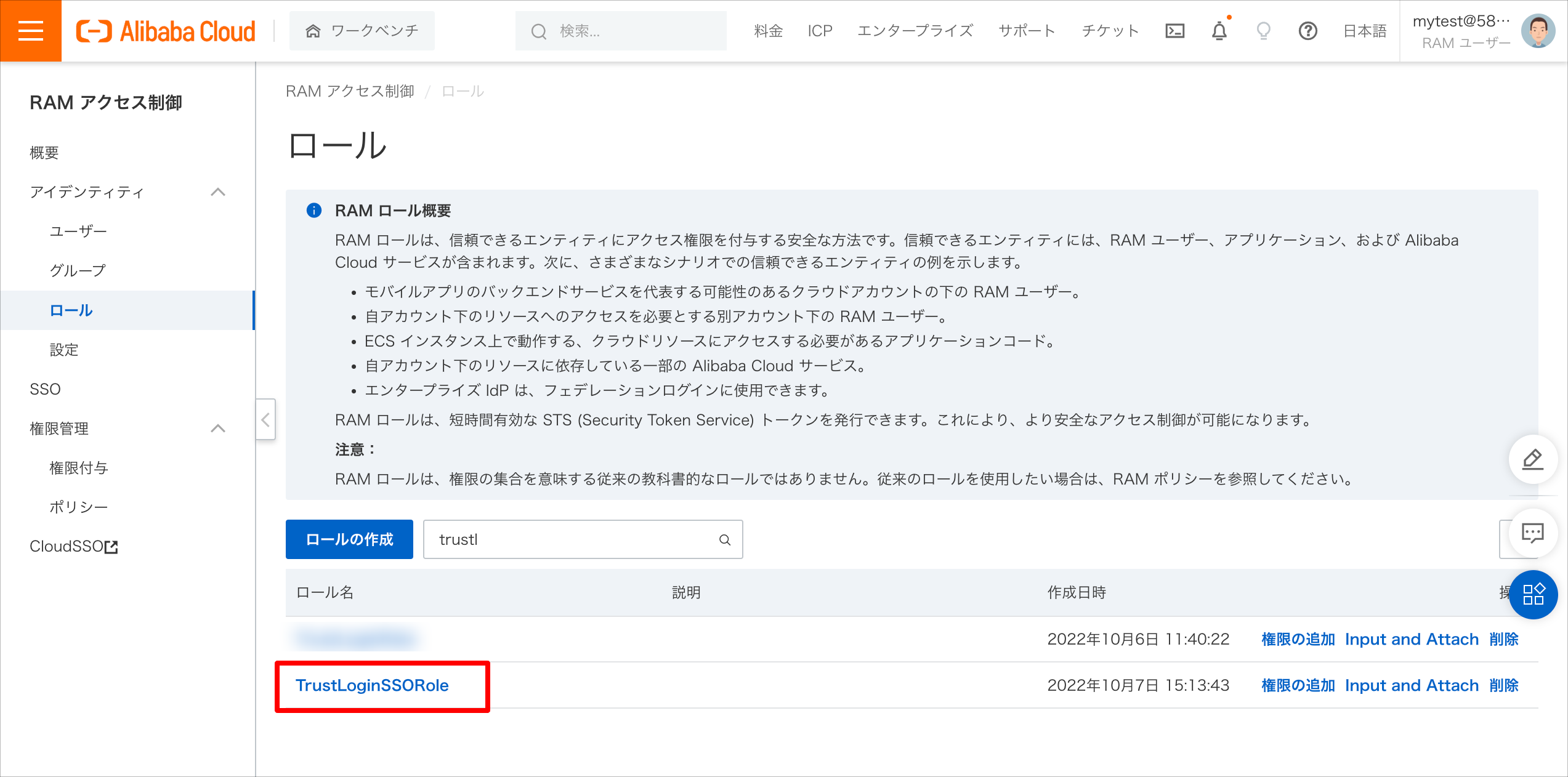

10. Click the name of the role you created and note down the "ARN" value.



Return to the TrustLogin configuration again.

TrustLogin Admin Page Configuration (Continued)

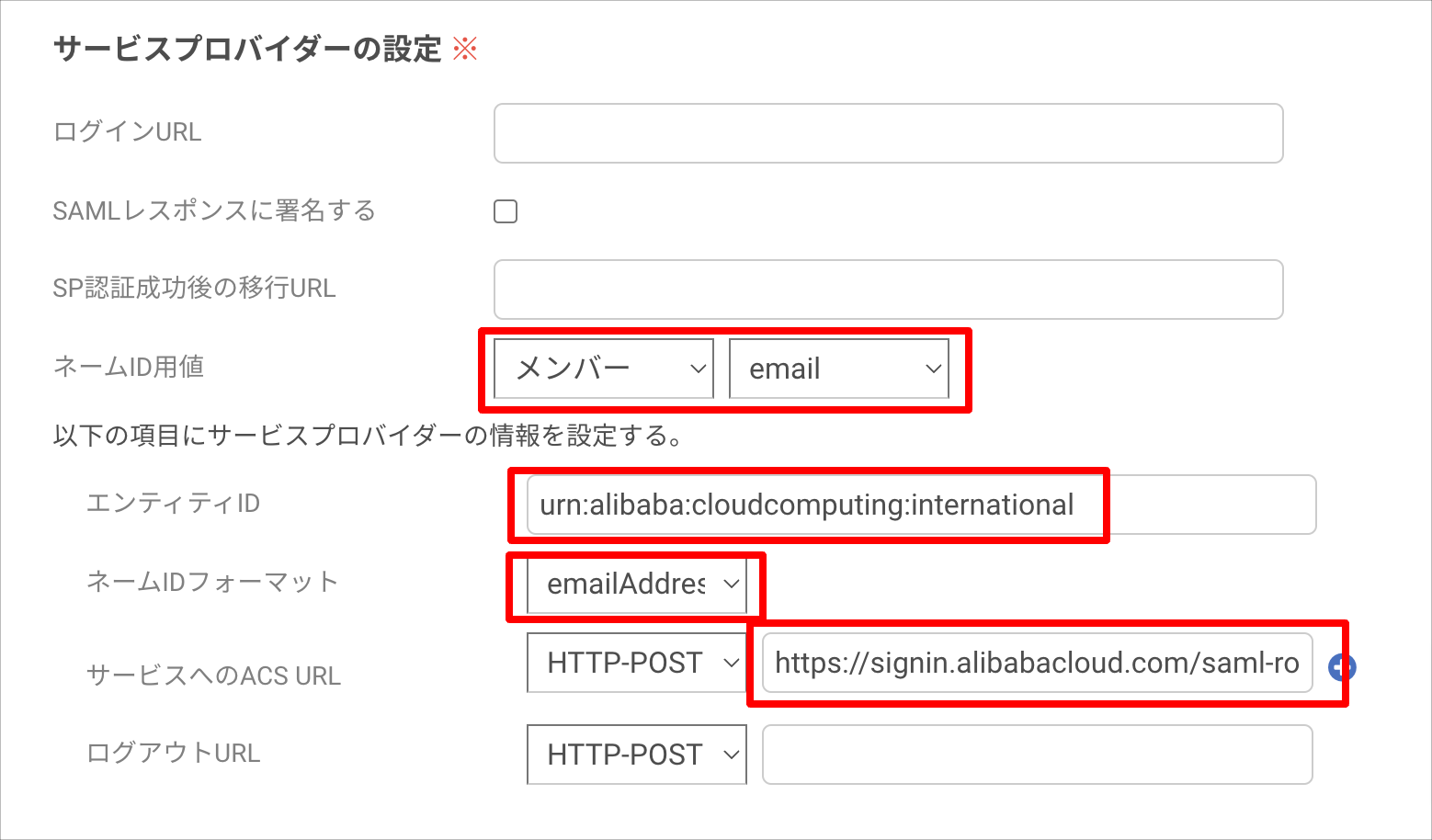

1. Configure each item under "Service Provider Settings" as follows.


   Value for Name ID	Select "Member" > "email"
   Entity ID	urn:alibaba:cloudcomputing:international
   Name ID Format	Select "emailAddress"
   ACS URL for Service	https://signin.alibabacloud.com/saml-role/sso

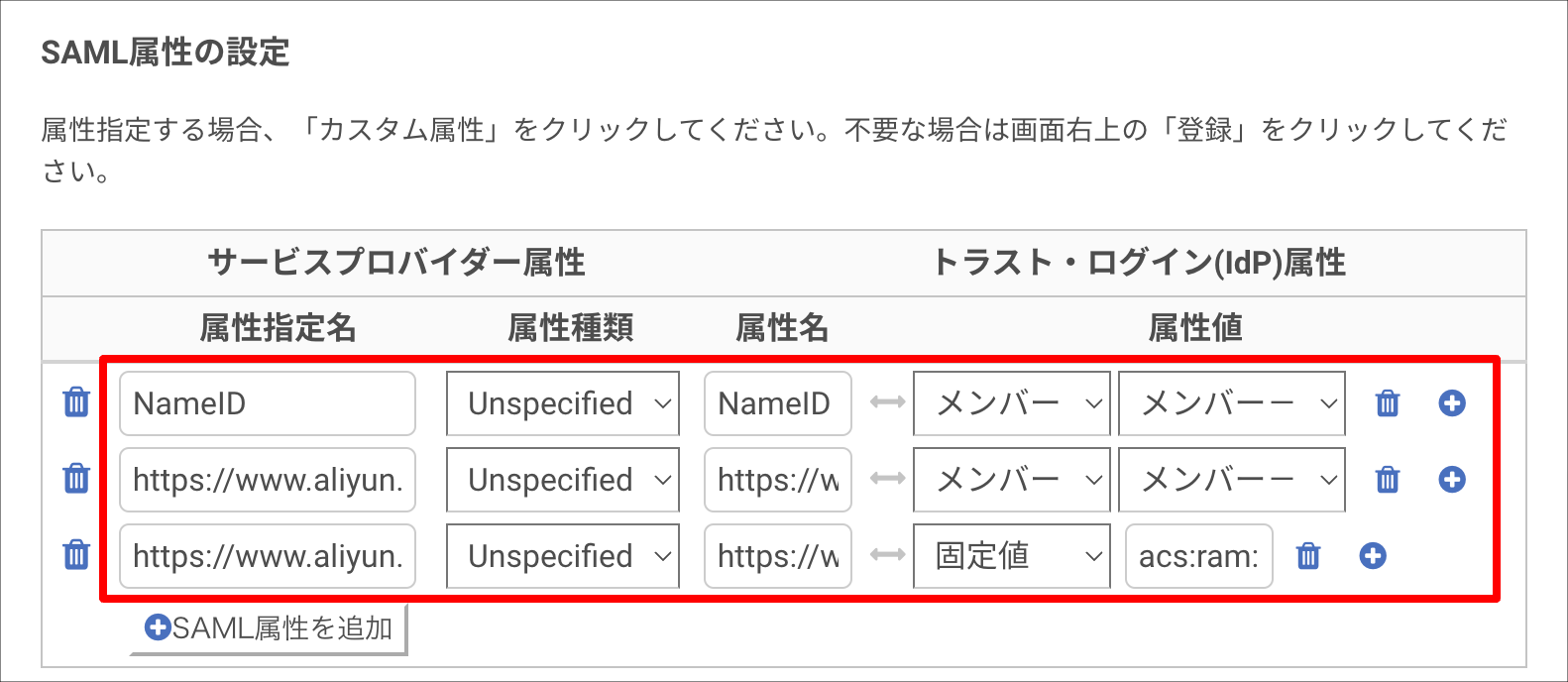

2. In "SAML Attribute Settings", click the "Specify Custom Attribute" button, then click "Add SAML Attribute" to add a row (attribute). Configure as follows.


   Service Provider Attributes			TrustLogin (IdP) Attributes
   Attribute Name (as specified)	Attribute Type	Attribute Name		Attribute Value
   NameID	Unspecified	NameID	Member	Member - Email Address
   Value of ① below	Unspecified	Value of ① below	Member	Member - Email Address
   Value of ② below	Unspecified	Value of ② below	Fixed Value	"Role ARN", "IdP ARN" (Separate the "Role ARN" and "IdP ARN" with a comma (,))


   ①: https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName
   ②: https://www.aliyun.com/SAML-Role/Attributes/Role




3. Click "Register" to save.

TrustLogin User Configuration

① When a User Adds the App via My Page

1. In "My Page", click the "Add App" button.
2. On the "App Registration" screen, select the custom SAML app you created, and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.
4. Click the app in "My Page" or the "Browser Extension" and verify that login is successful.

② When an Administrator Adds a Member

1. In the "Admin Page > Apps" menu, search for and click the custom SAML app you created.
2. Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
