Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on setting custom attributes, see here |
||
|
SP-side settings |
〇 |
Configured by the administrator |
|
Request the SP to configure the settings |
||
|
Provisioning |
Supports provisioning via API (accounts can be managed in TrustLogin) |
|
|
Supports SAML JIT provisioning (accounts can be managed in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verified Operation by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop app |
|
|
〇 |
iOS - Standard browser (Safari) |
|
|
〇 |
iOS - TrustLogin mobile app in-app browser |
|
|
ー |
iOS - Native app |
|
|
〇 |
Android - Standard browser (Chrome) |
|
|
〇 |
Android - TrustLogin mobile app in-app browser |
|
|
ー |
Android - Native app |
|
Configuring the TrustLogin Admin Page
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

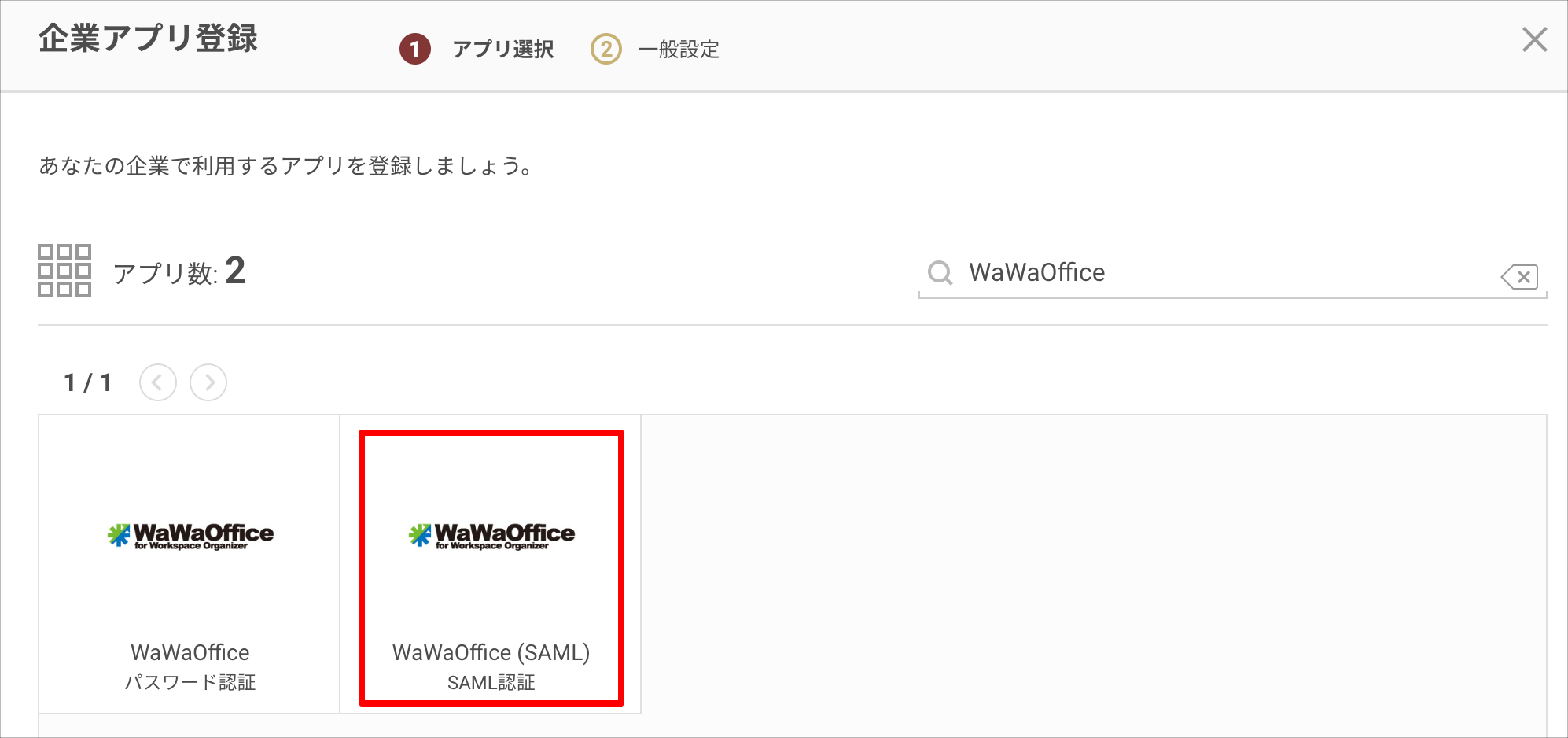

- Search on the "Register Company App" screen and select "WaWaOffice (SAML)".

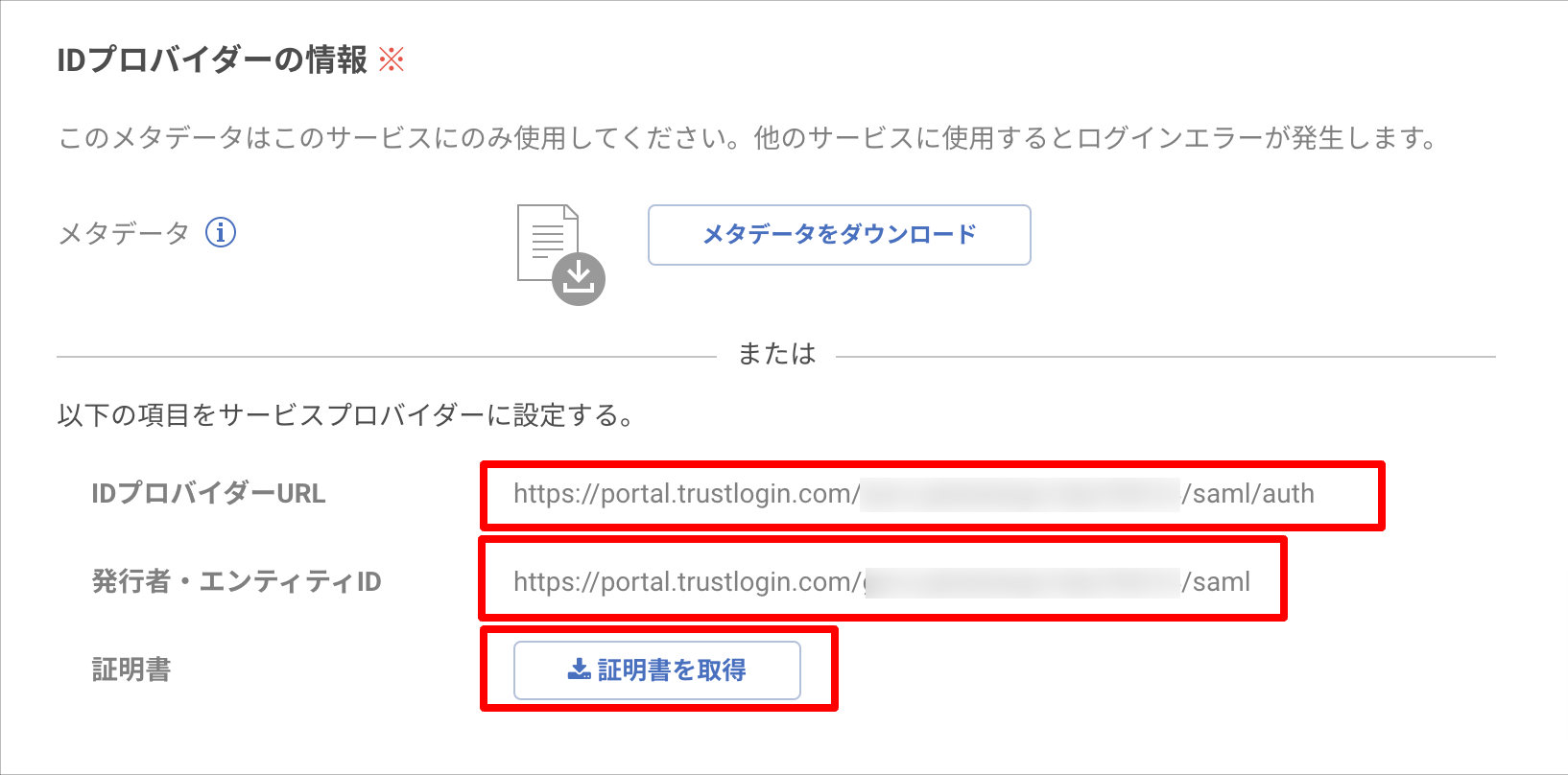

- Note down the "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate from "Get Certificate".
Now switch to the settings on the WaWaOffice side.
Please log in to WaWaOffice with an administrator account in a separate window.
Configuring WaWaOffice

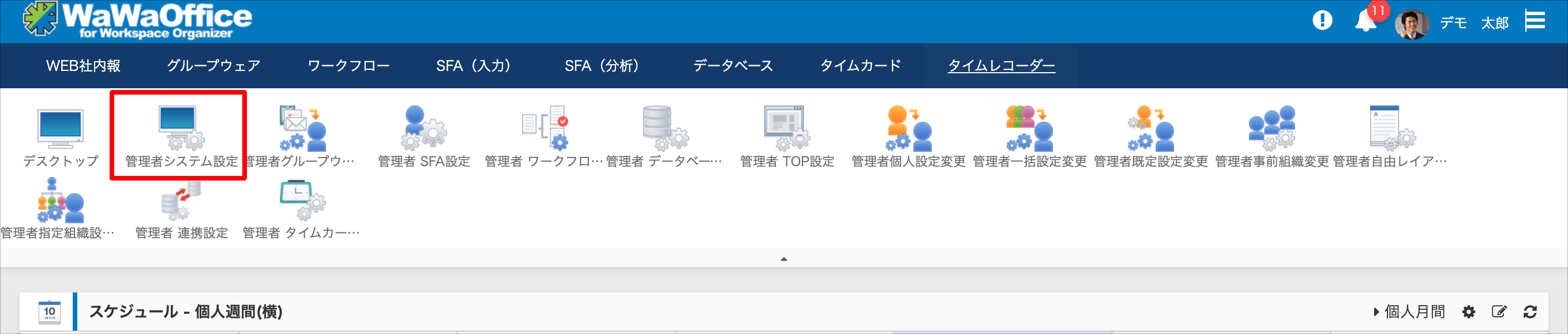

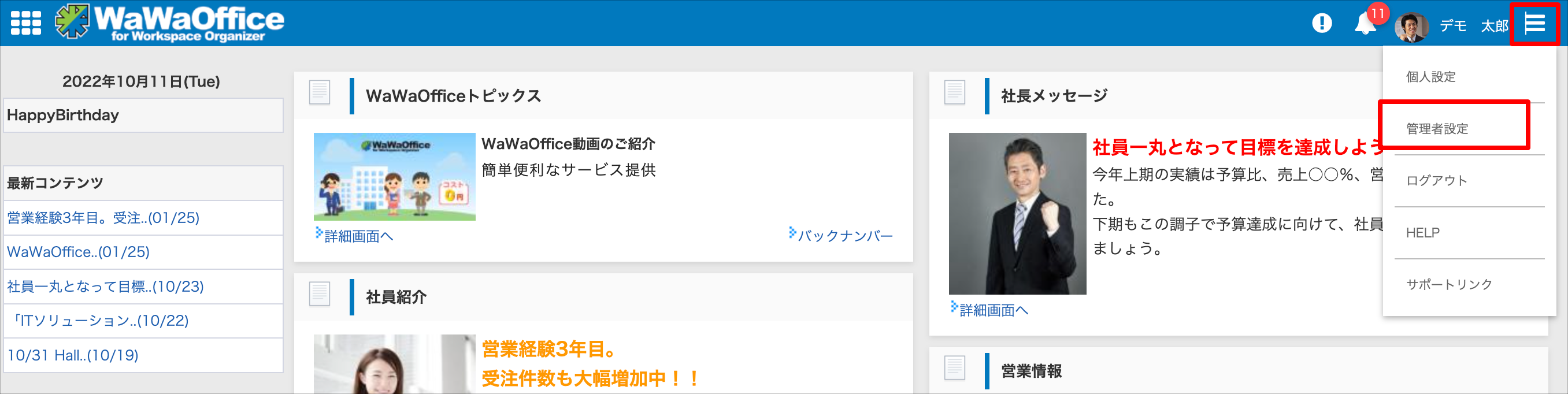

- Open "Administrator Settings" from the menu in the upper right.

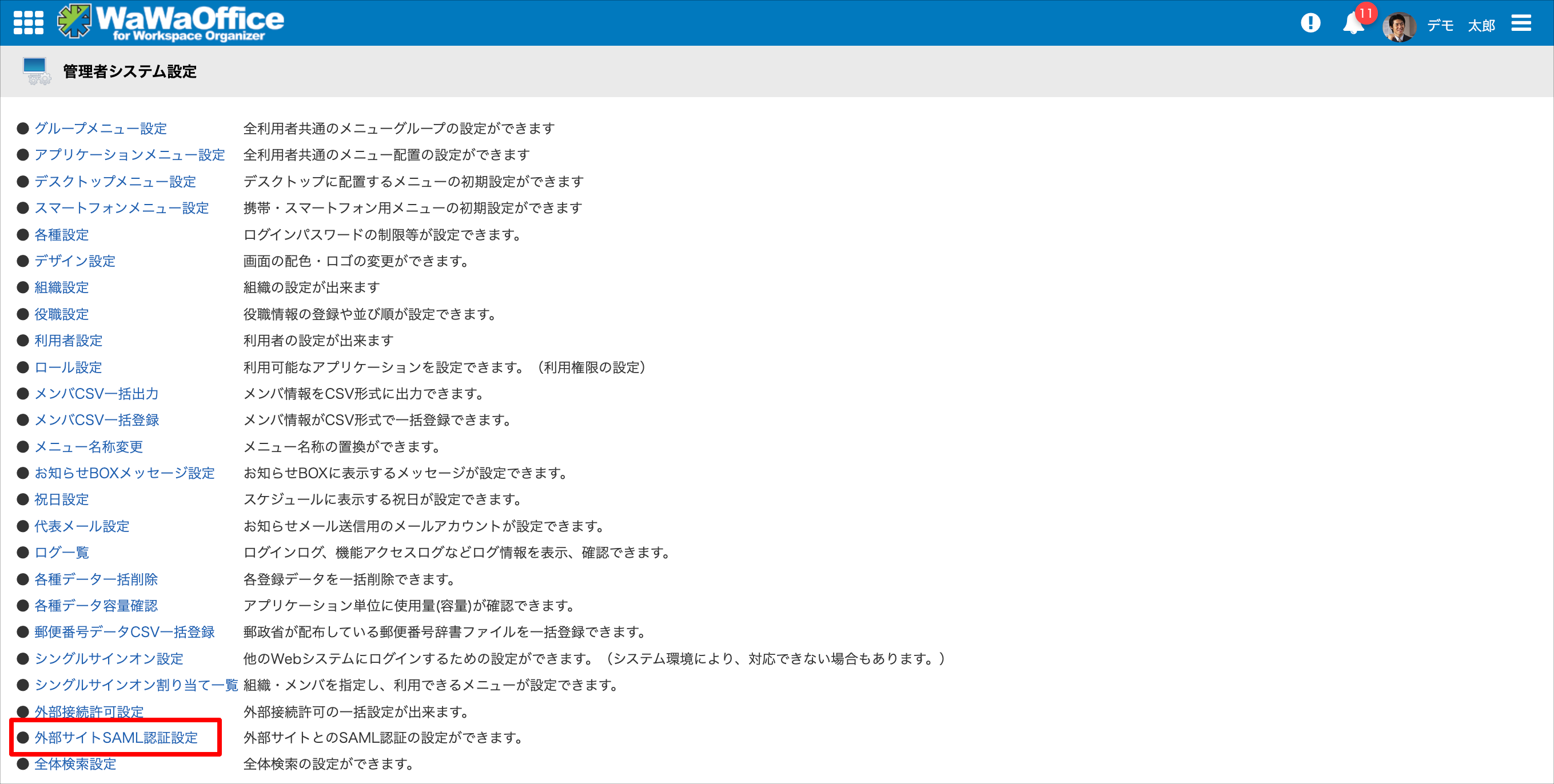

- Open "Administrator System Settings > External Site SAML Authentication Settings".

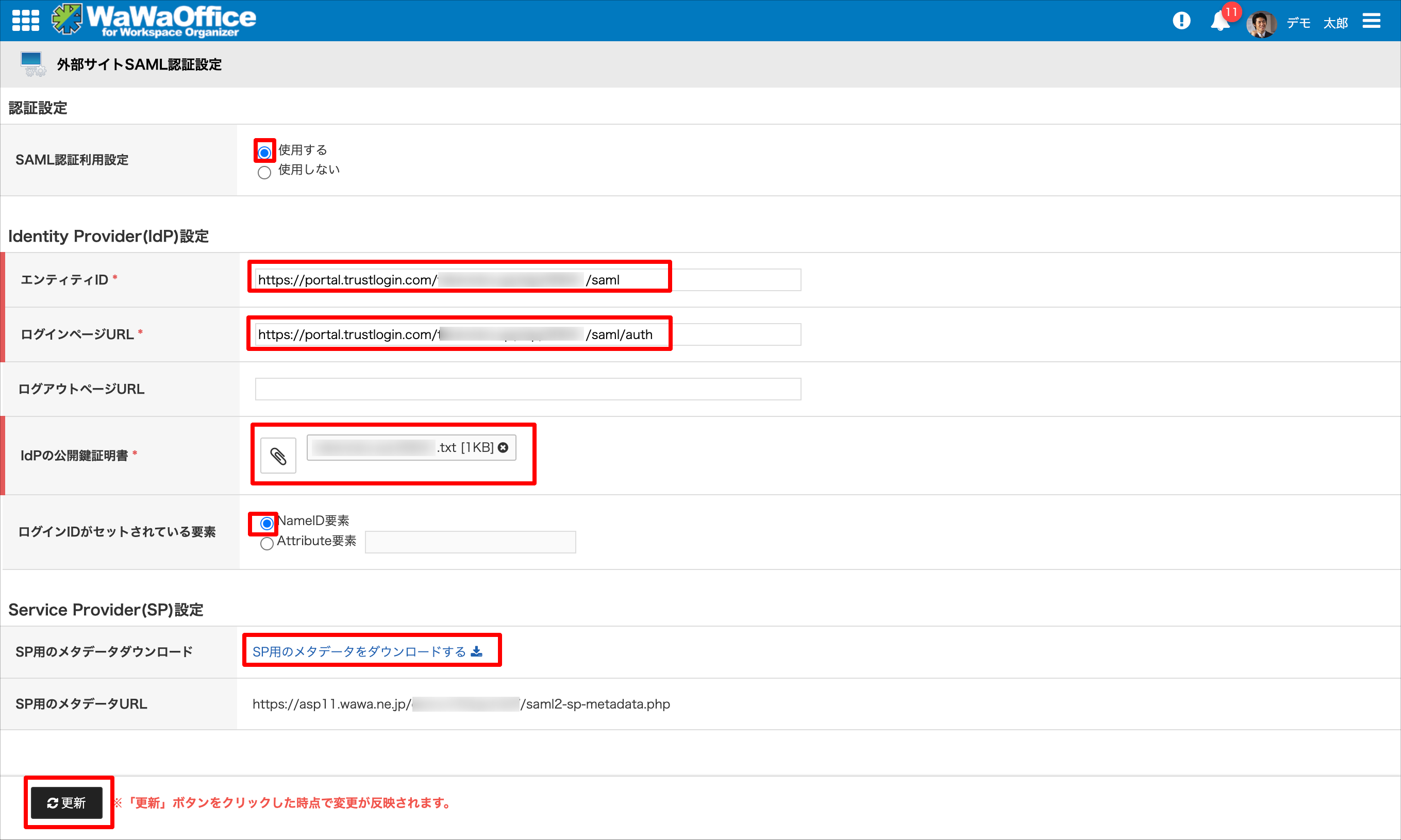

- Configure each item as follows and save by clicking the "Update" button.
SAML Authentication Usage Setting Select "Use" Entity ID The "Issuer/Entity ID" you noted from TrustLogin Login Page URL The "Identity Provider URL" you noted from TrustLogin IdP Public Key Certificate The "Certificate" obtained from TrustLogin Element containing the login ID Select "NameID element" Download metadata for the SP Obtain from "Download metadata for the SP"
Now go back to the TrustLogin settings.
Configuring the TrustLogin Admin Page (Continued)

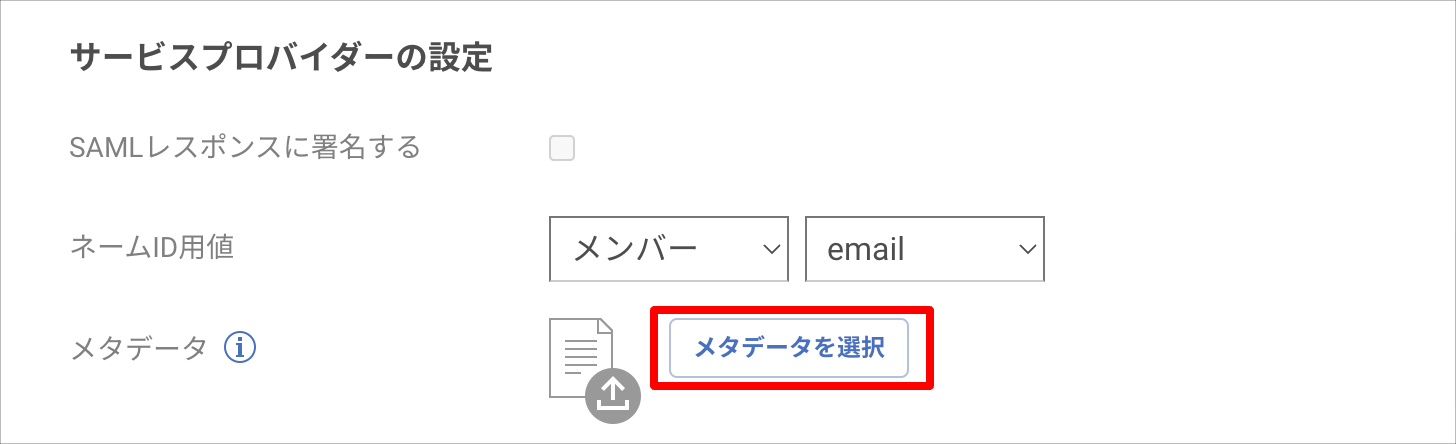

- From "Select Metadata" under "Service Provider Settings", upload the metadata obtained from WaWaOffice.
- Click the "Register" button to save the settings.
Configuring TrustLogin Users
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- Select "WaWaOffice (SAML)" on the "Register App" screen and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
- Click the app on "My Page" or in the browser extension, and confirm that login succeeds.
② When an administrator adds a member
- Search for the "WaWaOffice (SAML)" app on the "Admin Page > Apps" menu and click it.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
