TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

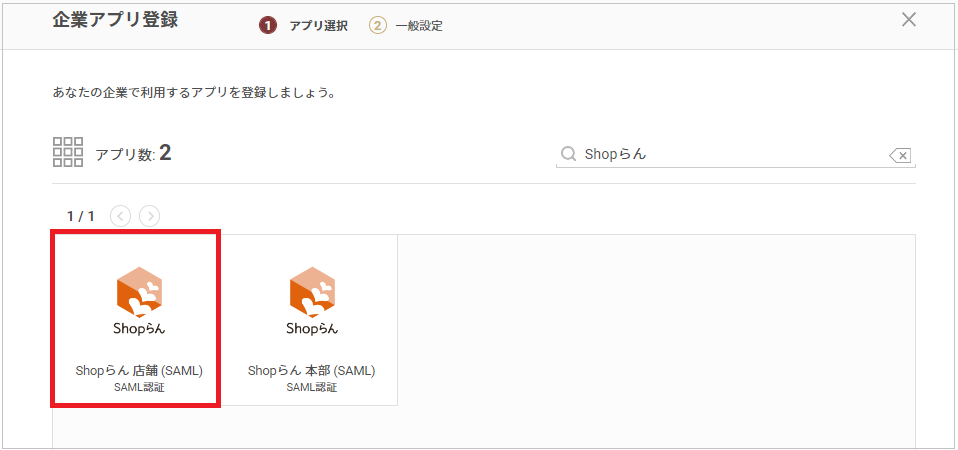

2. On the "Company App Registration" screen, search and select "Shoplan Store (SAML)."

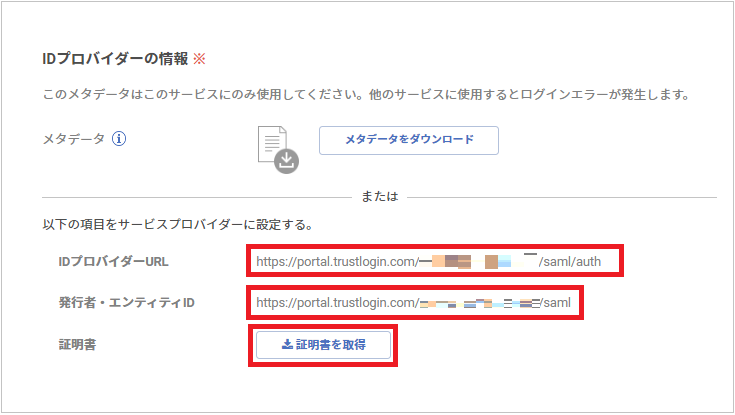

3. Note down the "IdP URL" and "Issuer / Entity ID" under "Identity Provider Information," then download the certificate from "Get Certificate."

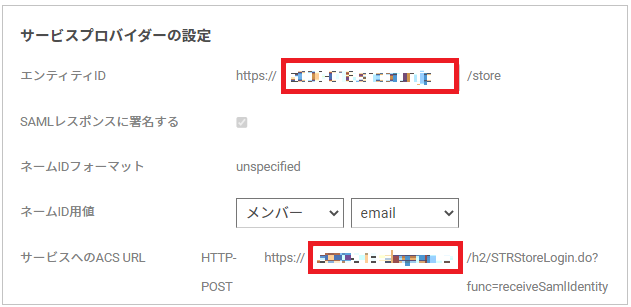

4. Enter your domain in the blank fields for "Entity ID" and "ACS URL for Service" under "Service Provider Settings."
   Note: To check your domain, refer to the login URL provided by Shoplan.
   　Example: https://[Your Domain]/h2/STRStoreLogin.do

5. Note down the "Entity ID" (you will enter this in Shoplan later).
   　Example: https://[Your Domain]/store


   Now, let's move on to the Shoplan configuration. Please open Shoplan in a separate window.

Shoplan Configuration

1. Log in to the headquarters account using an administrator account.

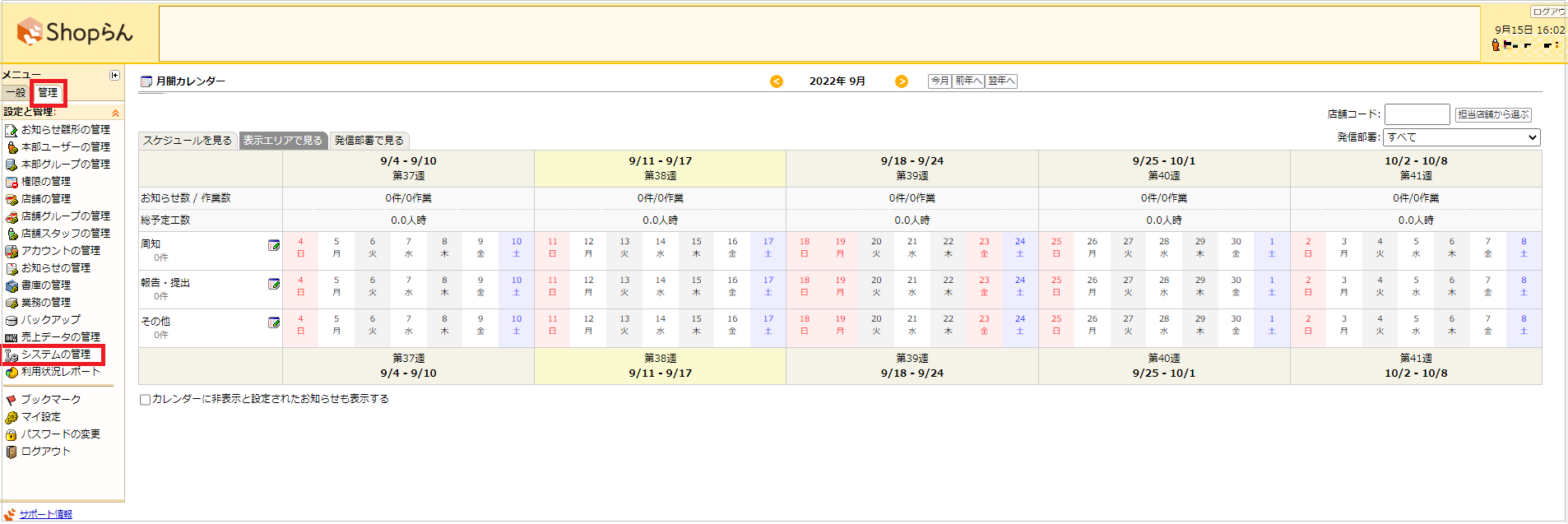

2. Open the "Management" tab and select "System Management."

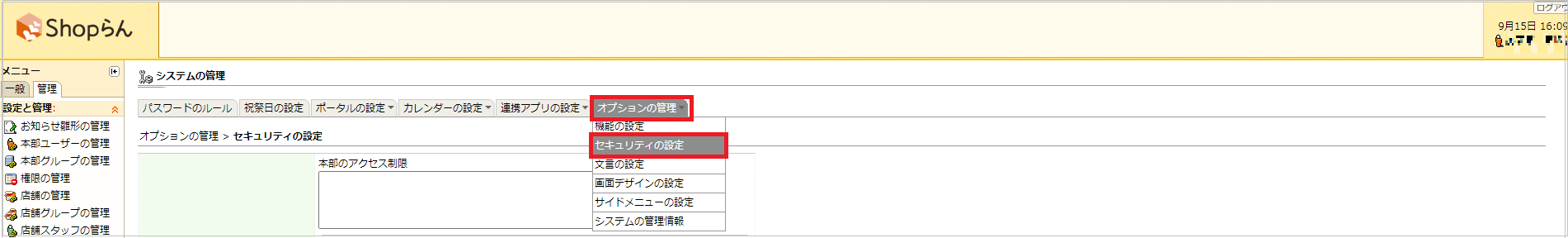

3. From the "Option Management" tab, select "Security Settings."

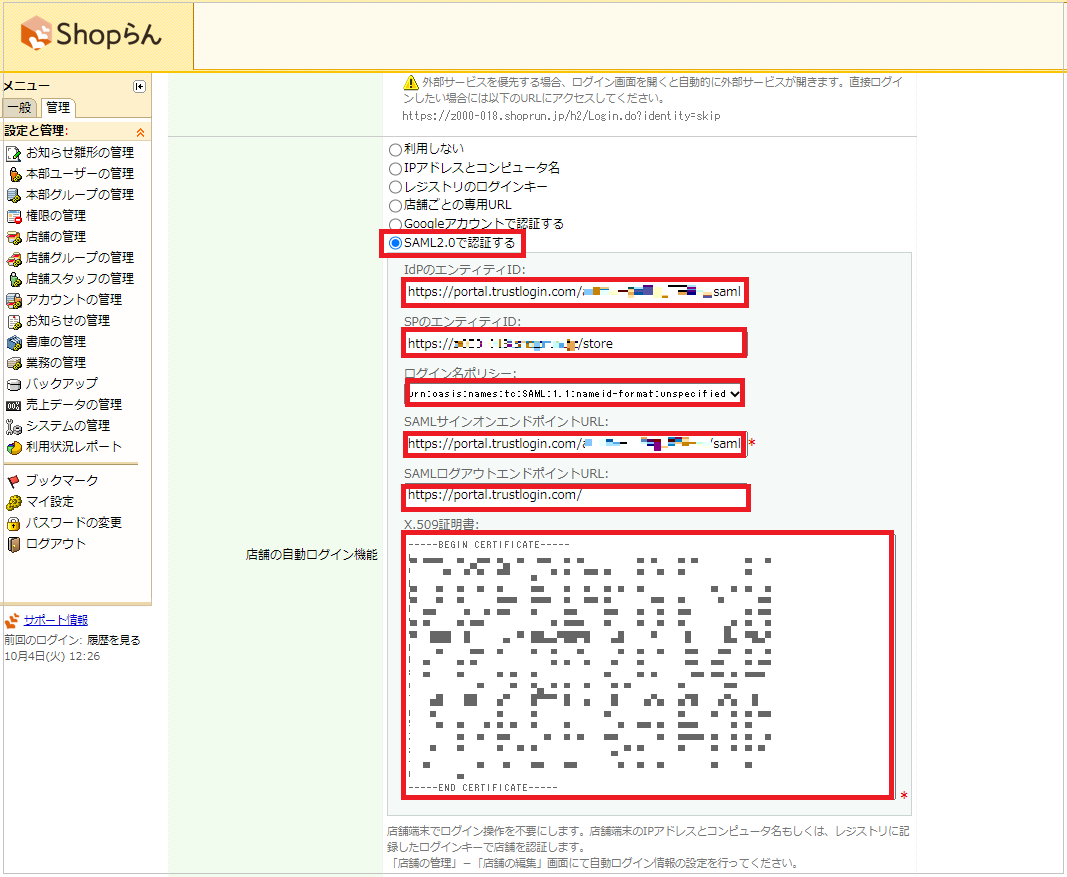

4. In the "Store Auto Login" section, select "Authenticate with SAML 2.0" and configure the fields as follows.


   IdP Entity ID	The Issuer/Entity ID noted from TrustLogin
   SP Entity ID	The Entity ID entered in TrustLogin's "Service Provider Settings" https://[Your Domain]/store
   Login Name Policy	Select urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified
   SAML Sign-On Endpoint URL	The IdP URL noted from TrustLogin
   SAML Logout Endpoint URL	https://portal.trustlogin.com/
   X.509 Certificate	Open the certificate downloaded from TrustLogin and paste it in





5. For "Combined Use with ID/Password Authentication," select according to your company's policy.
   Note: Selecting "Prioritize External Service" will result in SAML-only login.

6. Click "Change" at the bottom of the page.



TrustLogin User Configuration

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page."
2. On the "App Registration" screen, select "Shoplan Store (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.
4. Click the app from "My Page" or the browser extension, and confirm that login is successful.

② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "Shoplan Store (SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.

About the Login Screen After Configuring SAML for Shoplan

If a single user in Shoplan belongs to multiple stores, the following store selection screen will appear when logging in via SAML.

Select the store you want to log in to, and confirm that SAML authentication is successful.
