Configuring the TrustLogin Admin Page

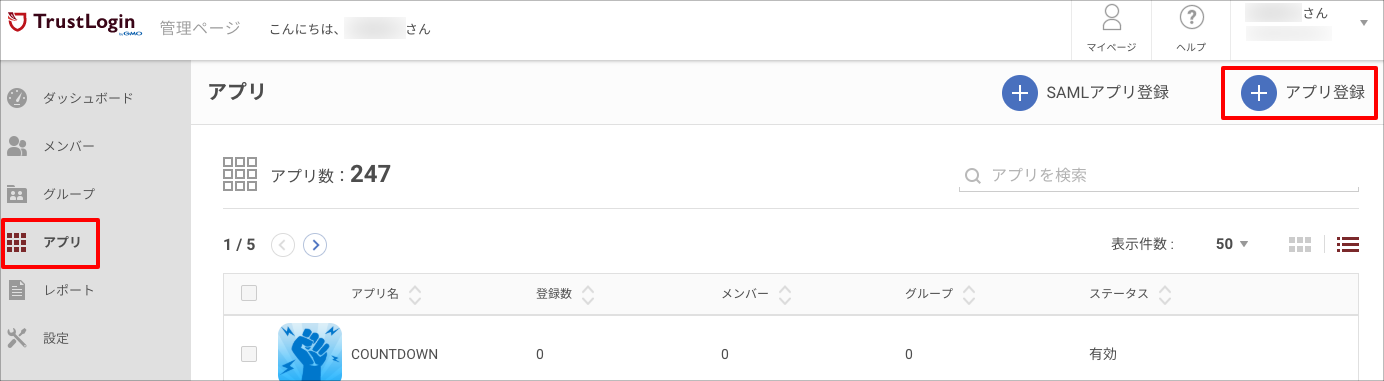

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

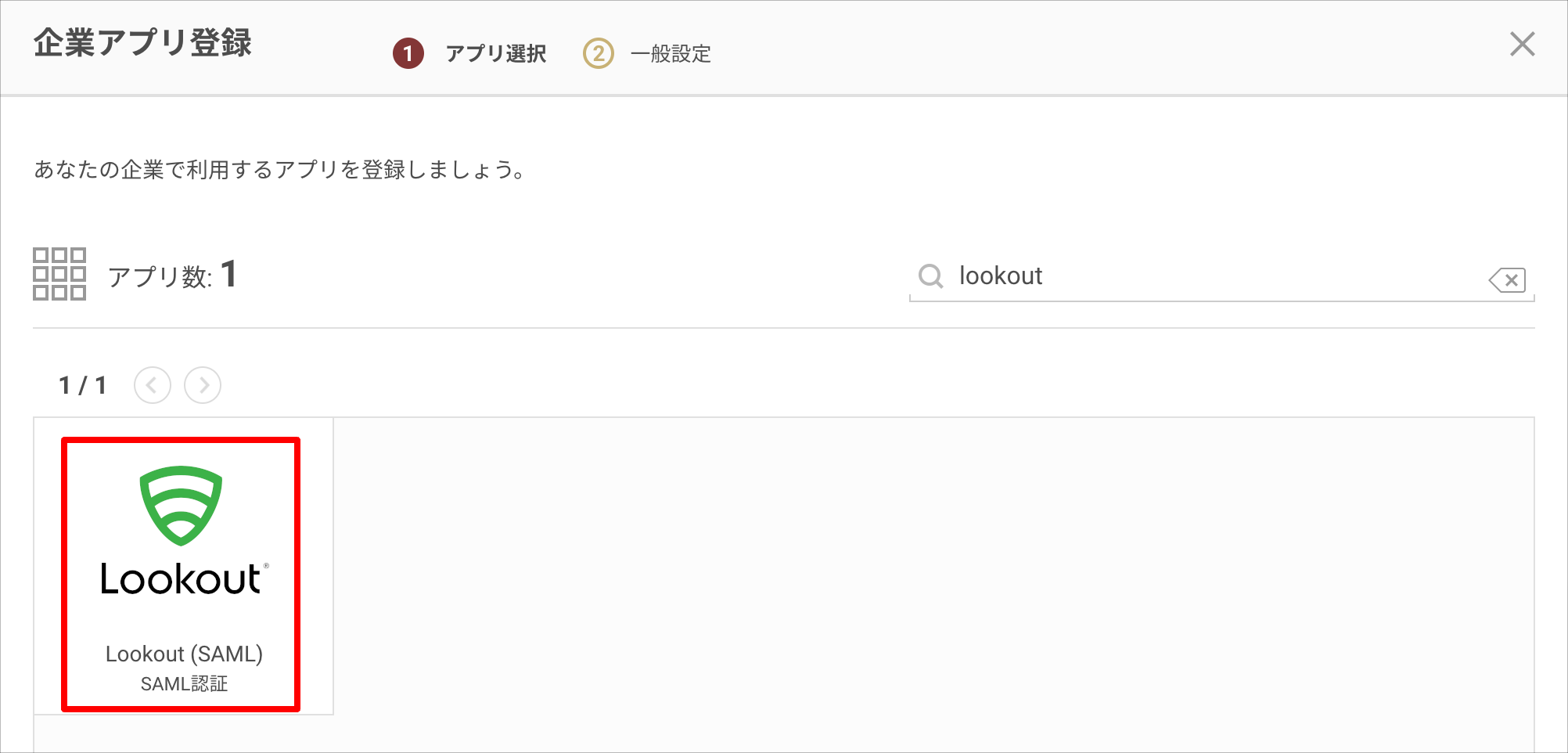

2. Search on the "Register Enterprise App" screen and select "Lookout (SAML)".

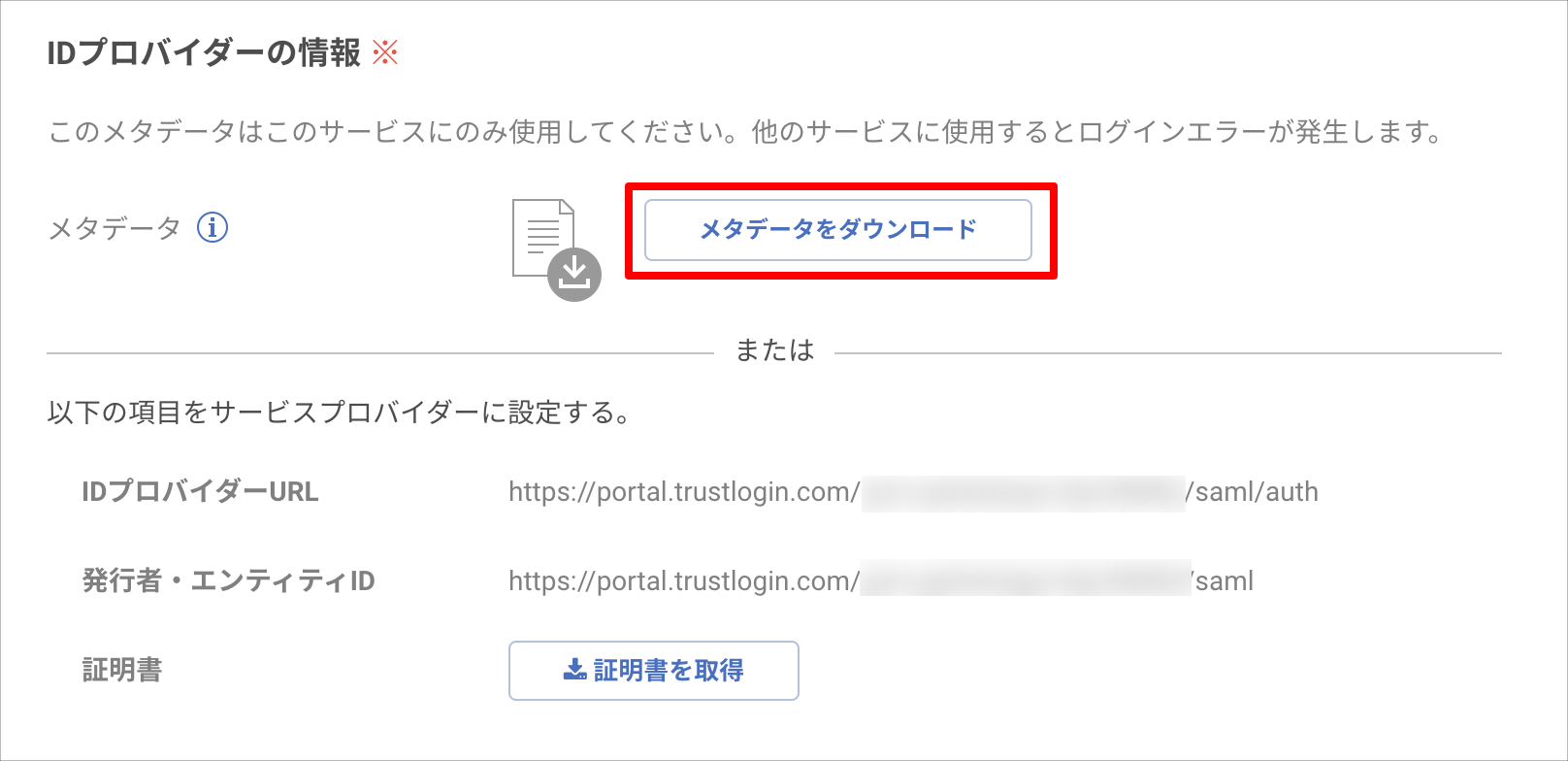

3. Download the metadata from "Download Metadata" under "Identity Provider Information".



4. Uploading the metadata exported from TrustLogin directly to Lookout as-is will cause authentication to fail, so the metadata must be edited.

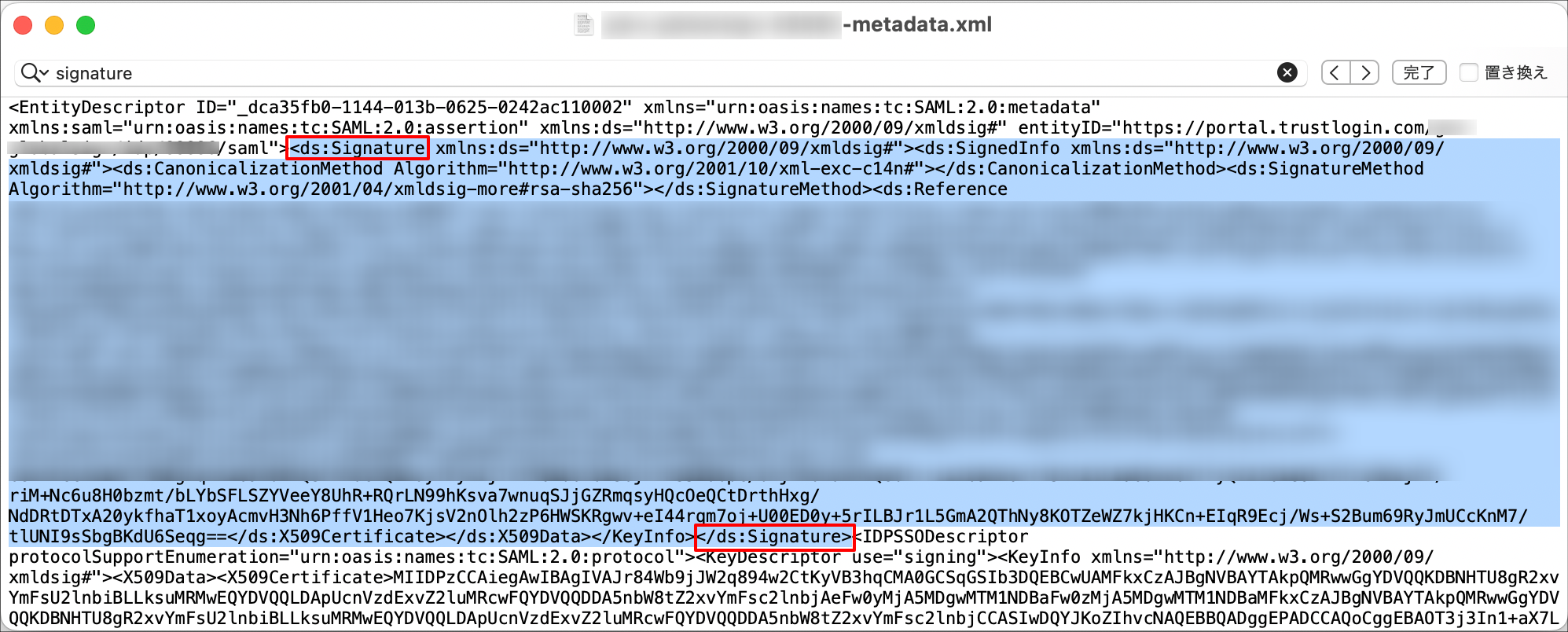

   Open the downloaded metadata file in a text editor, delete everything from the section starting with
   <ds:Signature〜 through </ds:Signature>, and save (overwrite) the file.
   (It is easier to find this by searching the file for "signature".)




Now switch to the configuration on the Lookout side.
Open the Lookout Management Console in a separate window.

Configuring Lookout

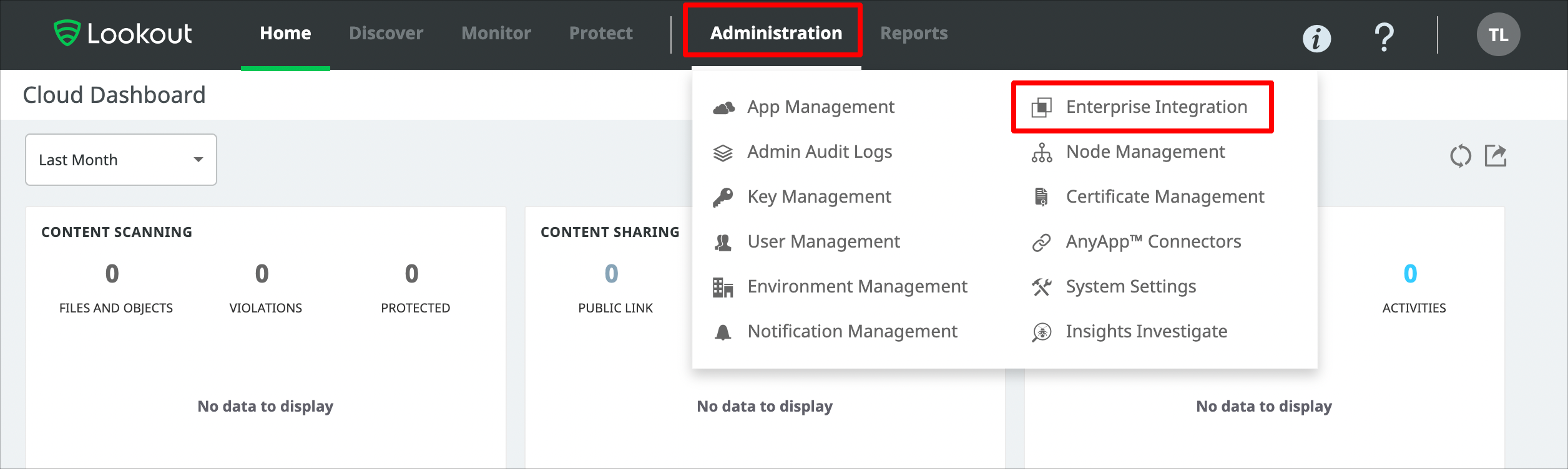

1. Log in with an account that has System Administrator privileges, and open "Administration > Enterprise Integration".

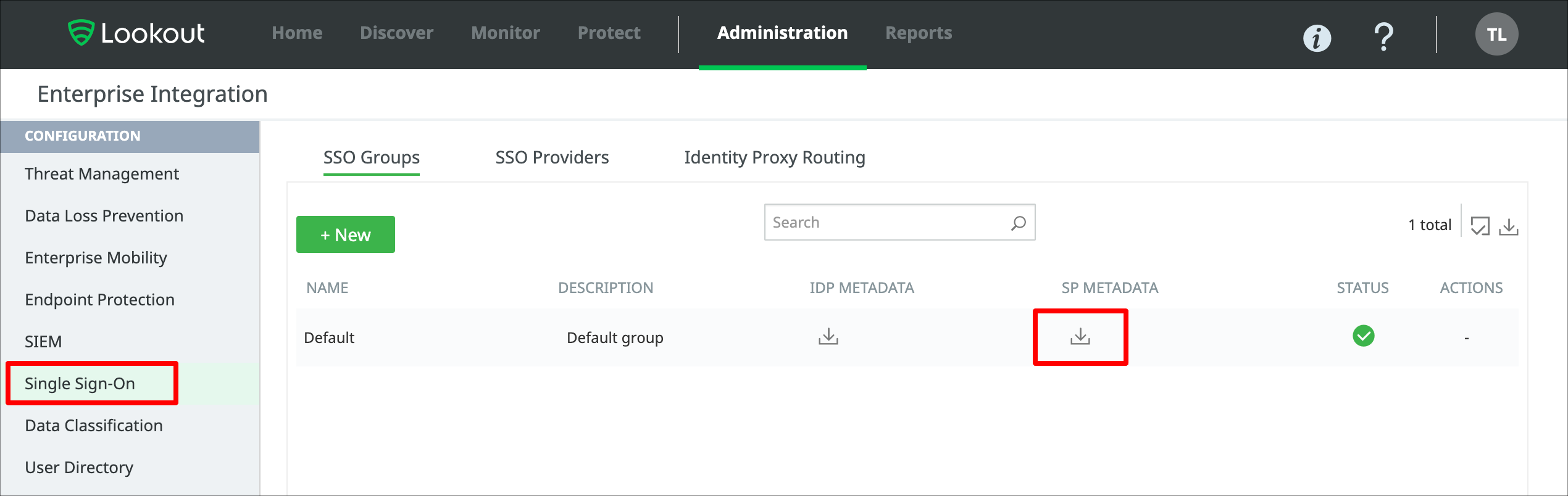

2. Open "Single Sign-On" from the left-hand menu, and download the metadata from "SP METADATA".

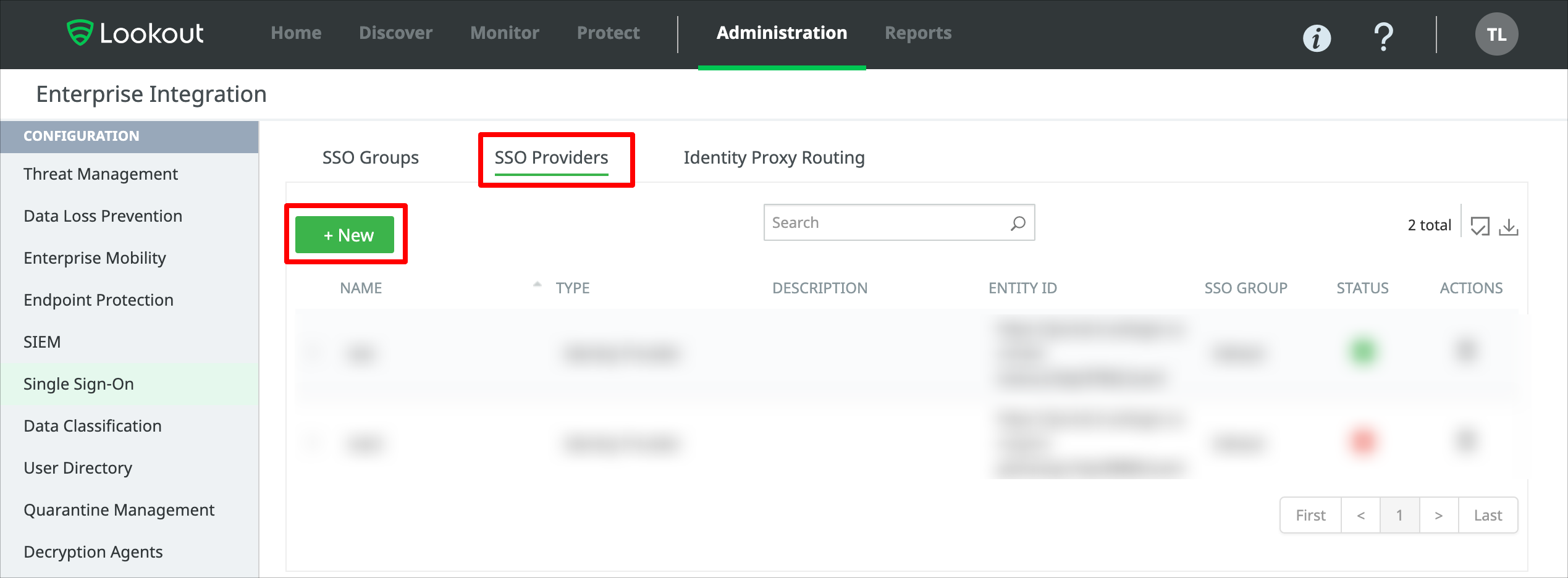

3. Open the "SSO Providers" tab and click the "+New" button.

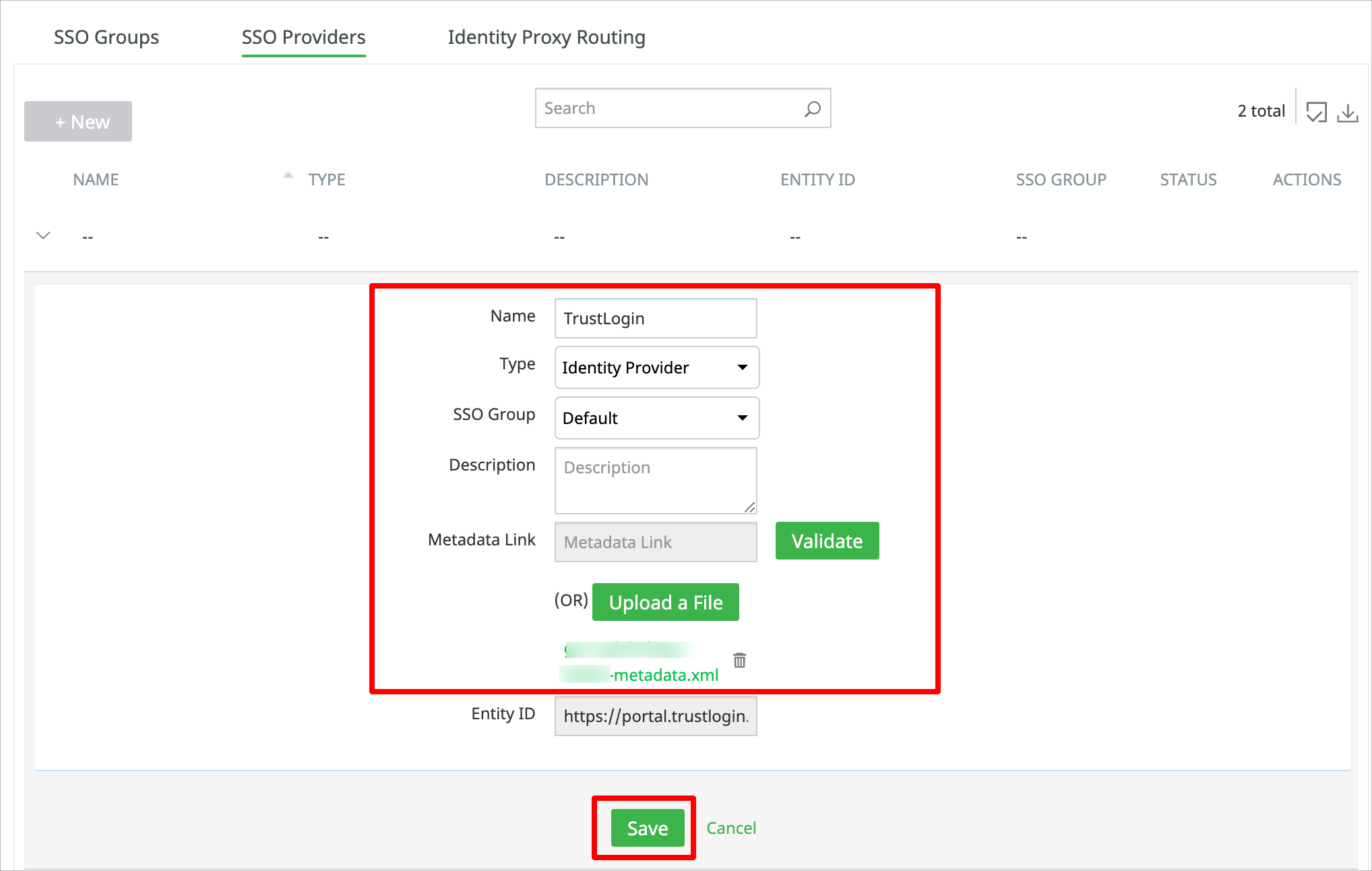

4. Configure each item as follows and click the "Register" button to save.


   Name	Any name of your choice
   Type	Select "Identity Provider"
   SSO Group	Select "Default"
   Metadata Link	① Click the "Upload a File" button and select the metadata file you downloaded from TrustLogin and edited earlier ② Click the "Validate" button ③ Confirm that a value is populated in the "Entity ID" field below

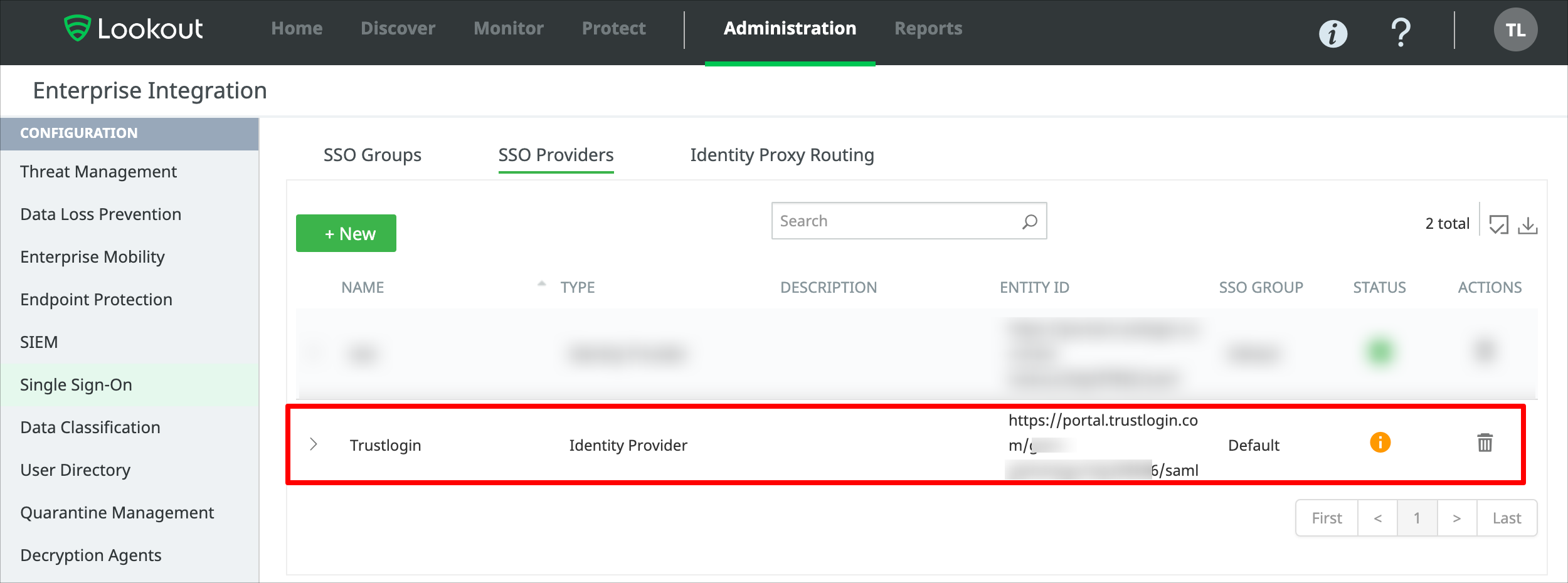

5. Confirm that the IdP information has been added.

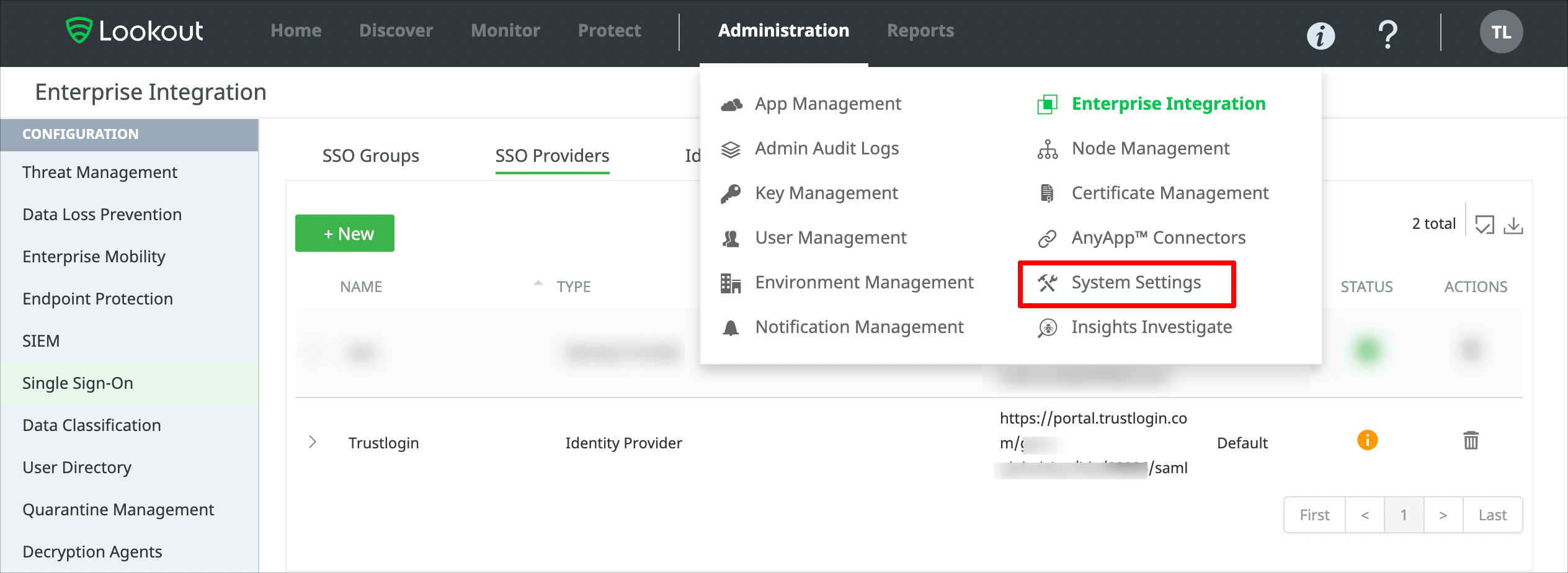

6. Open "Administration > System Setting".

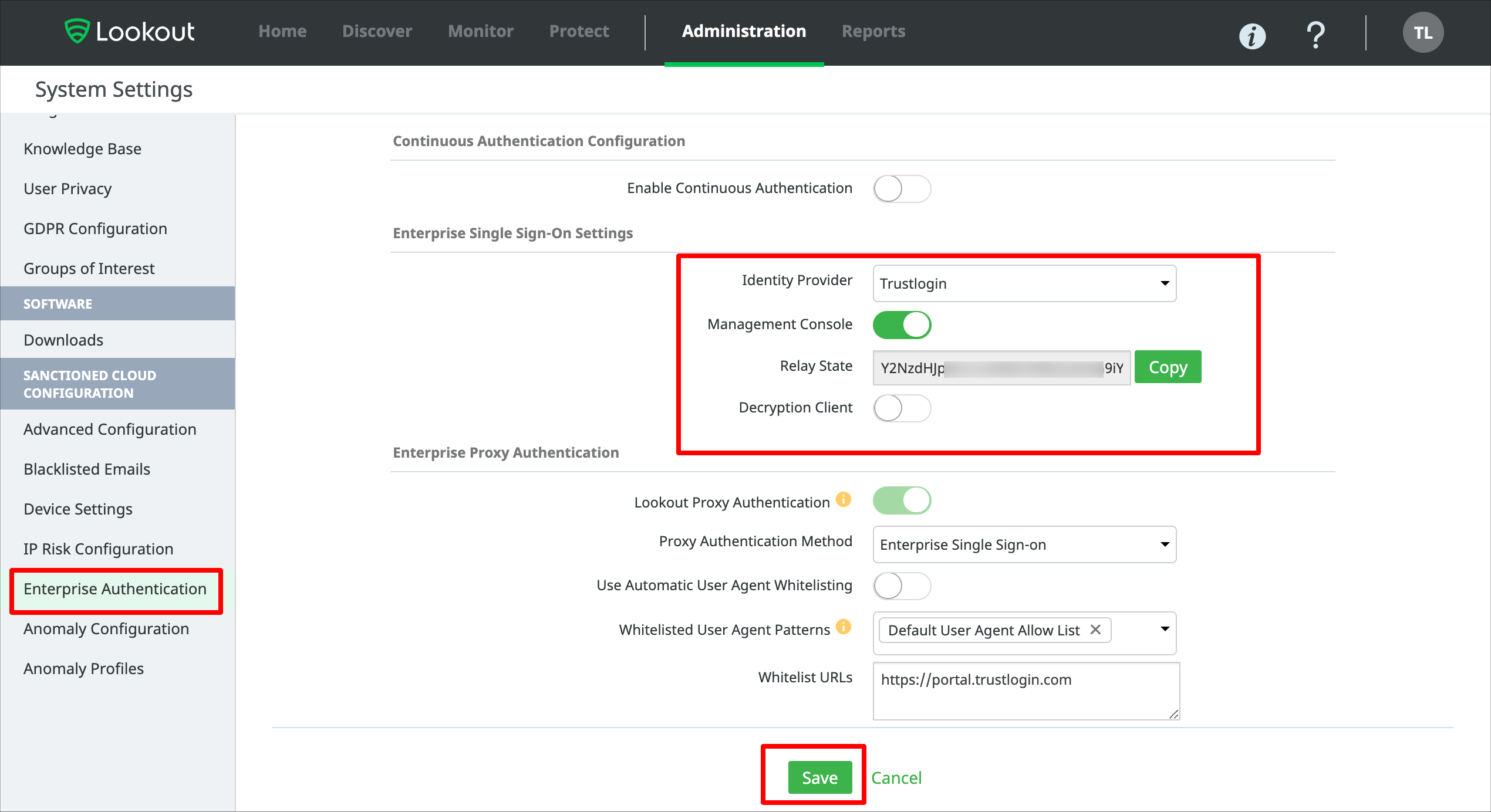

7. Open "Enterprise Authentication" from the left-hand menu, configure each item under "Enterprise Single Sign-On Settings" as follows, and click the "Register" button to save.


   Identity Provider	Select the IdP you created
   Management Console	Toggle ON
   Relay State	Copy the value using the "Copy" button on the right and keep it for later
   Decryption Client	Toggle OFF




Now return to the TrustLogin settings again.

Configuring the TrustLogin Admin Page (continued)

1. Open the metadata file you downloaded from Lookout in a text editor and obtain the following two values.

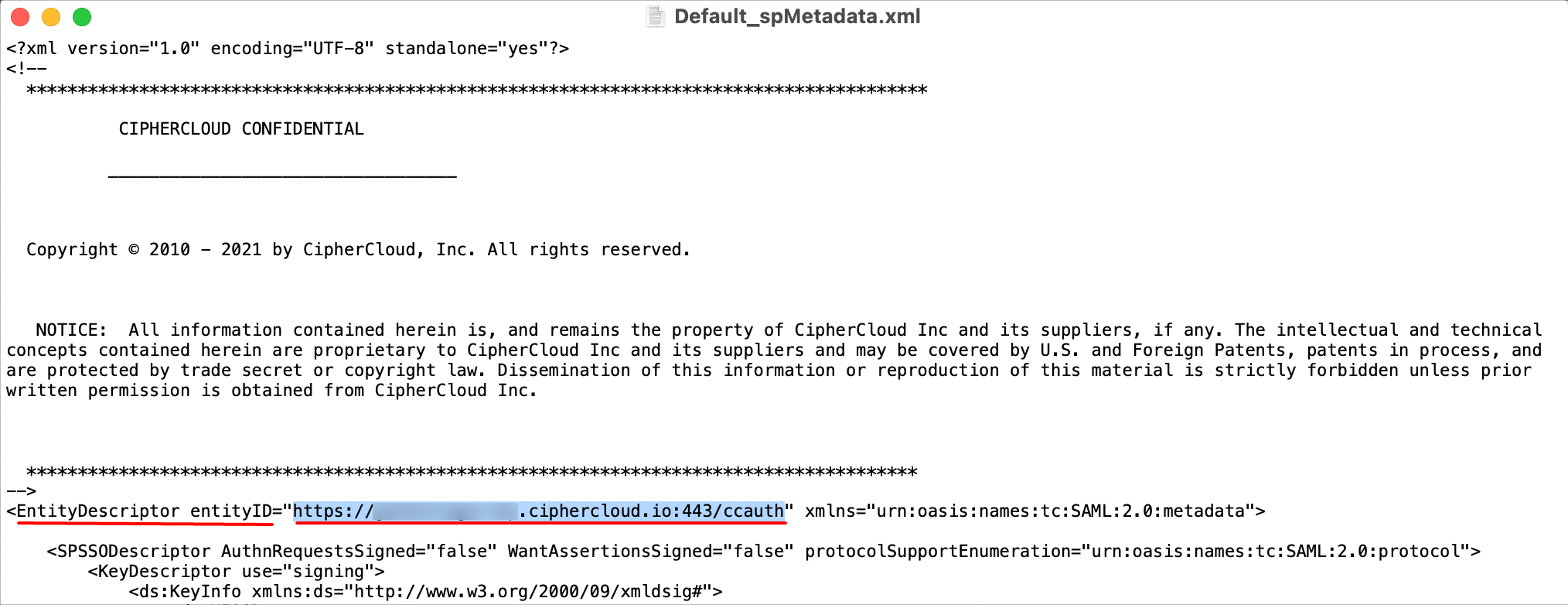

   ① Search the file for "entityID" and extract the value of EntityDescriptor entityID

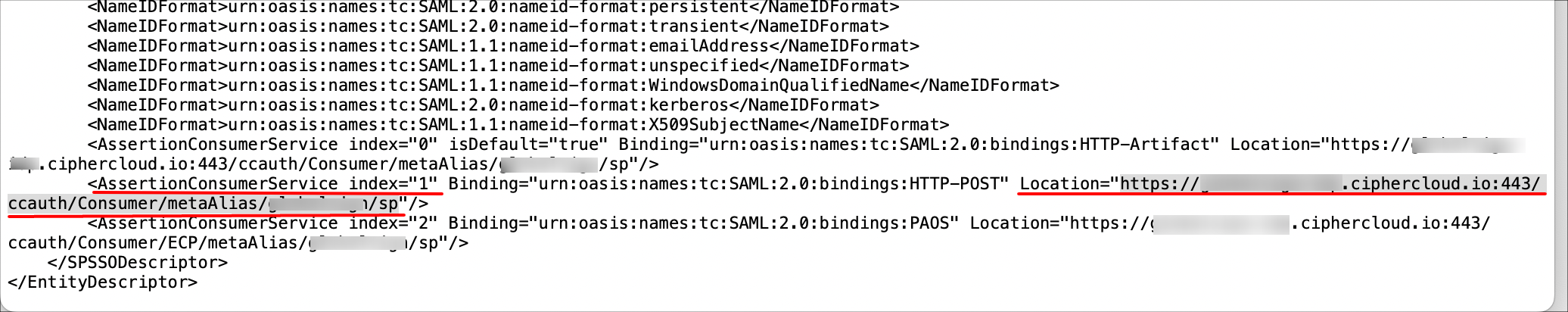

   ② Search the file for "AssertionConsumerService index=\"1\"" and extract the value of Location

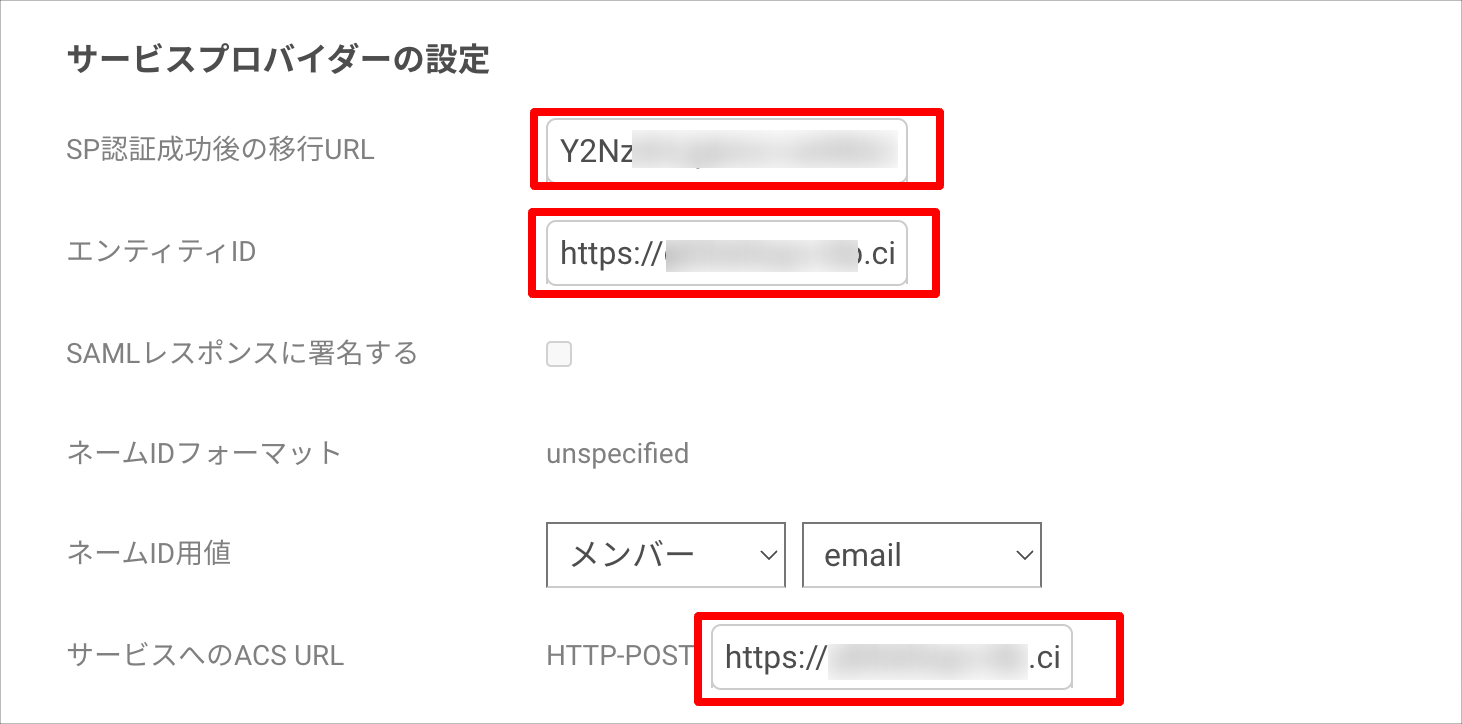

2. Configure each item under "Service Provider Settings" as follows.


   Redirect URL after successful SP authentication	The "Relay State" you noted from Lookout
   Entity ID	① EntityDescriptor entityID extracted in step 1
   ACS URL for the service	② AssertionConsumerService Location extracted in step 1





3. Click the "Register" button to save.



Configuring the TrustLogin User

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. Select "Lookout (SAML)" on the "Register App" screen and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.
4. Click the app from "My Page" or the browser extension, and check that login succeeds.

② When an administrator adds members

1. Search for the "Lookout (SAML)" app in the "Admin Page > Apps" menu and click it.
2. Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
